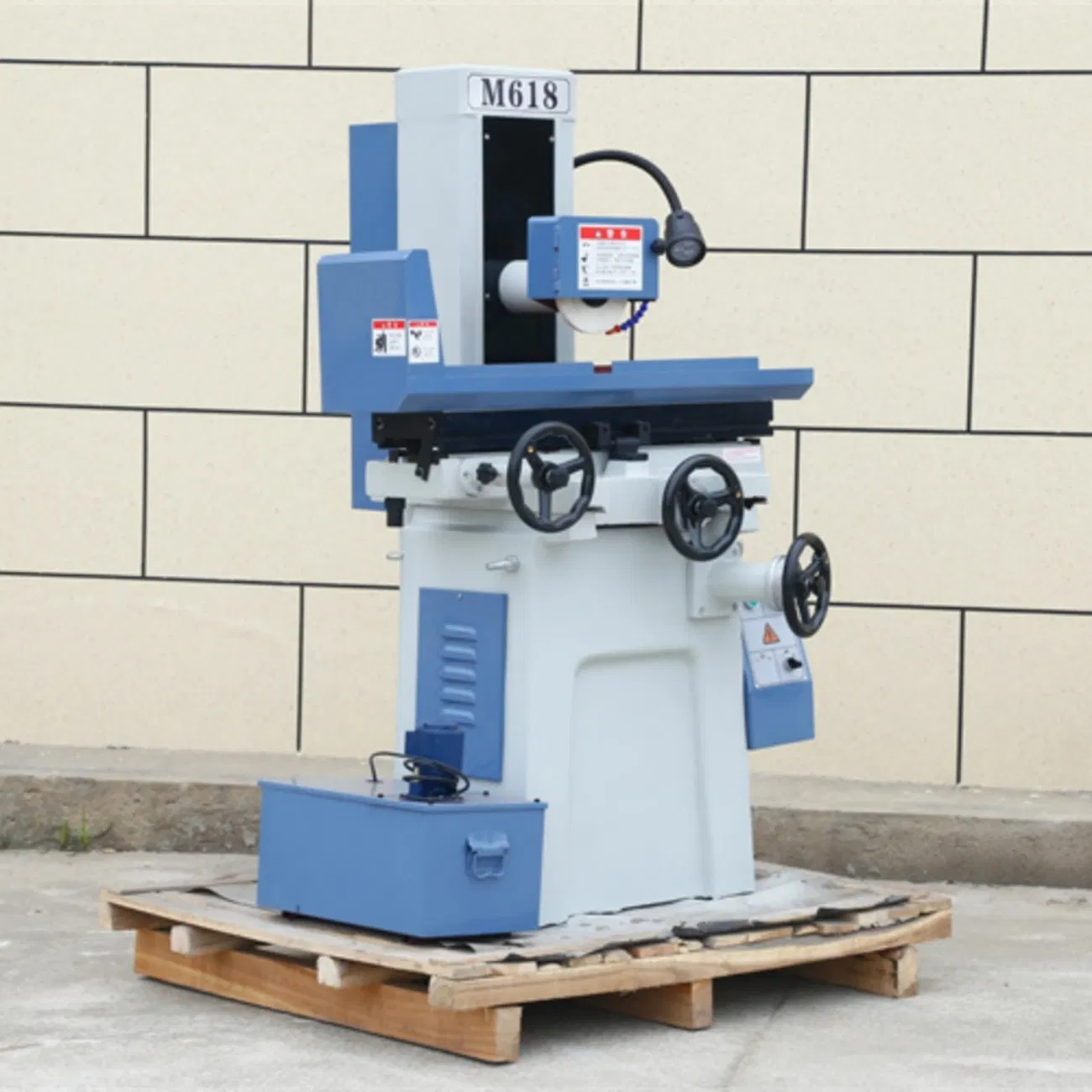

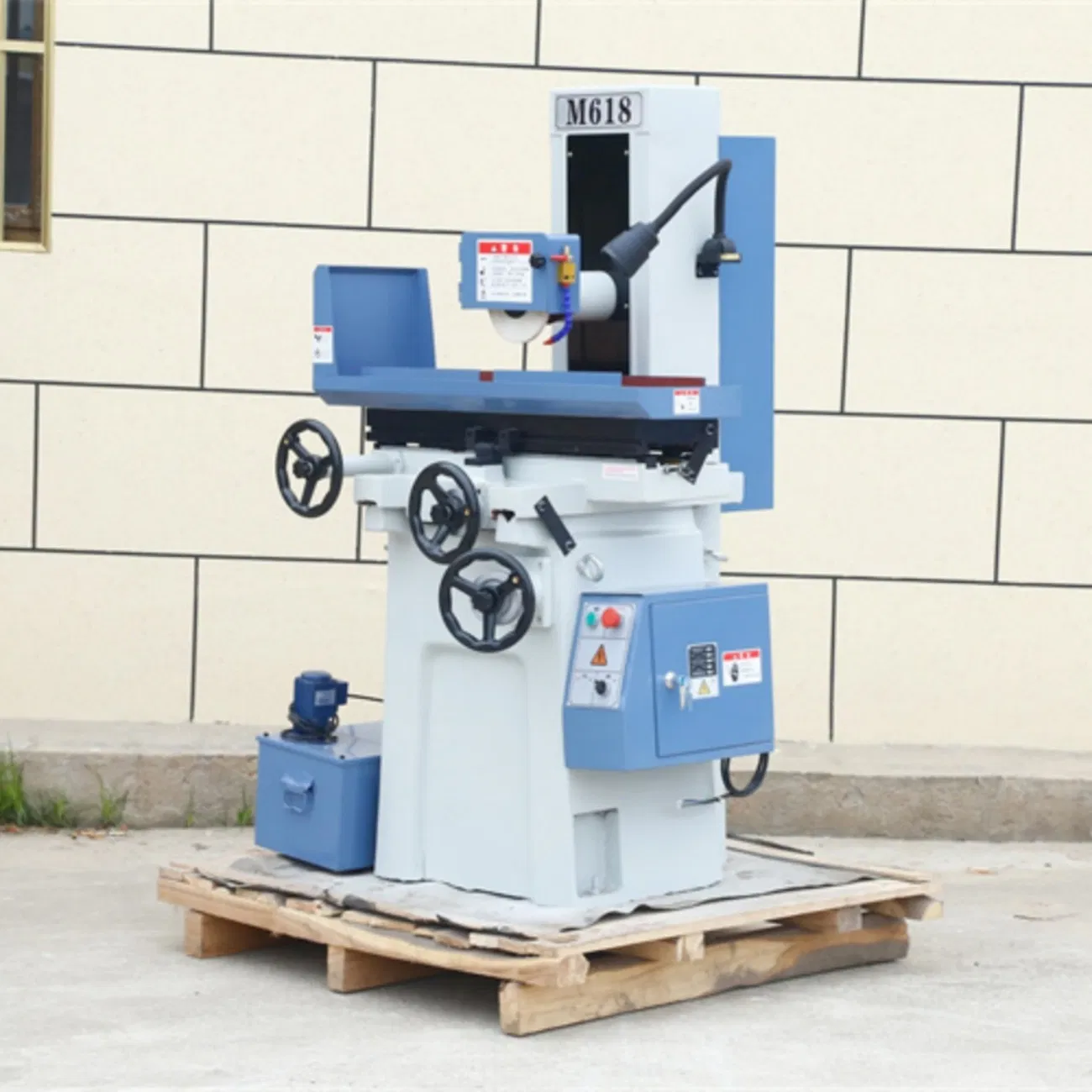

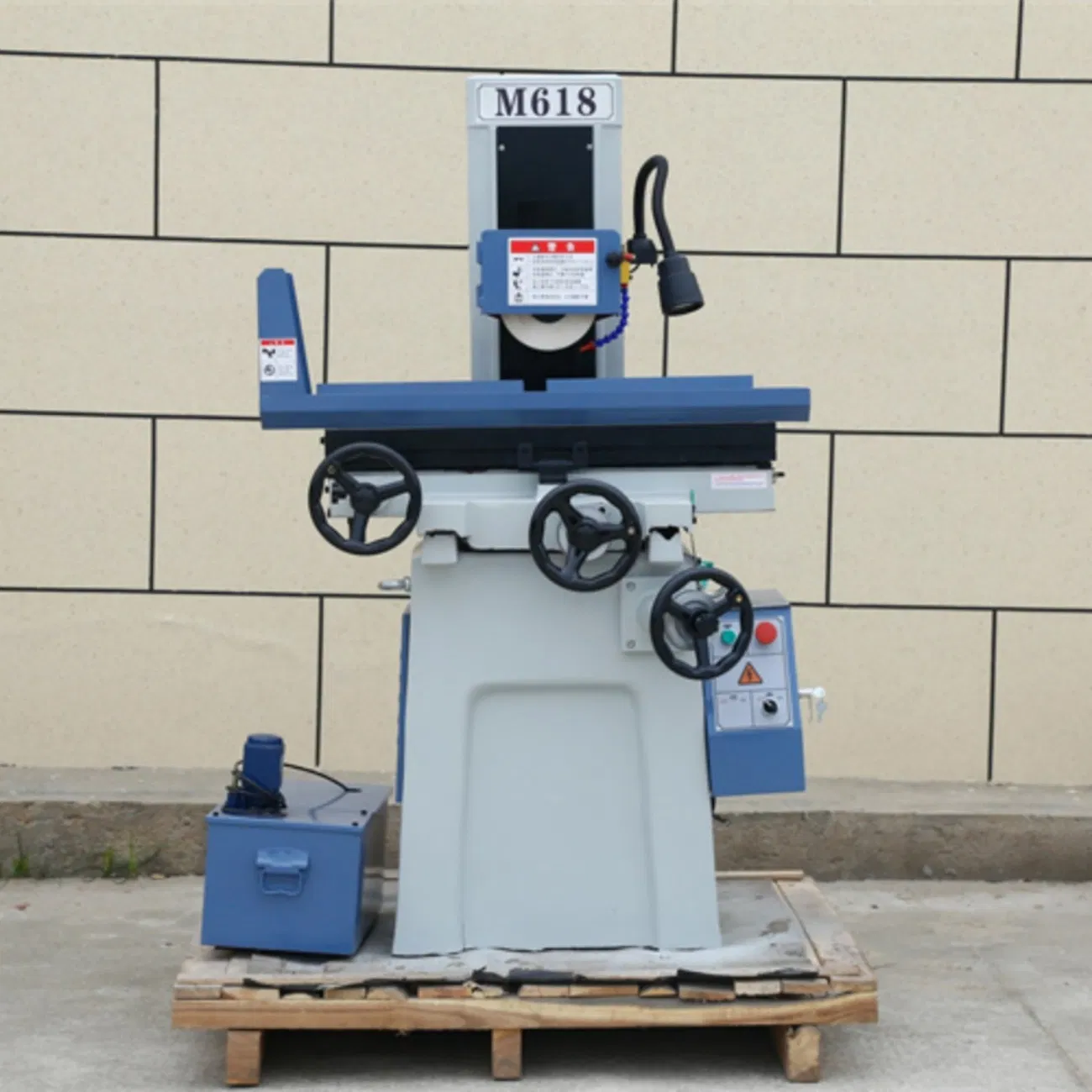

The M618 hand-cranked precision surface grinder adopts a cross-plate movable type with a large span and high thickness symmetrical plate structure. It features small thermal deformation, stable movement, low noise, and excellent precision retention.
Designed for professional industrial use, this machine offers a compact structure, convenient operation, and high rigidity. It is ideally suited for grinding various planes and inclined surfaces for small molds, daily hardware, instruments, clocks, and plastic industry components.
| Specification Item | Technical Data (M618) |
|---|---|
| Work surface size (L x W) | 450*150mm |
| Max distance spindle center to table | 460mm |
| Max travel of worktable (L/R) | 490mm |
| Max travel of workbench | 180mm |

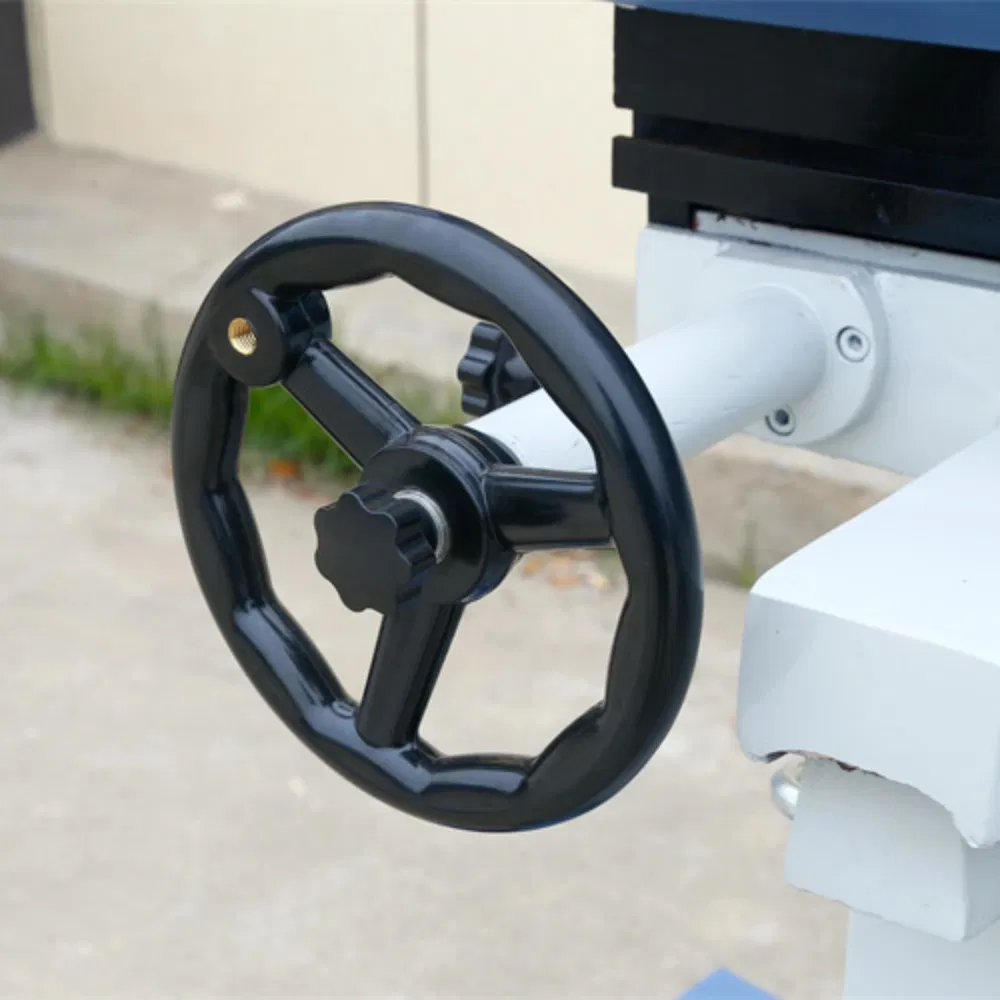

| Handwheel feed per revolution (Up/Down) | 2.0mm |
| Handwheel feed per grid (Up/Down) | 0.01mm |
| Spindle motor power | 1.1kw |
| Grinding wheel speed | 2850rpm |
| Grinding wheel size | φ180*16*φ31mm |
| Machine gross weight | 750kg |
