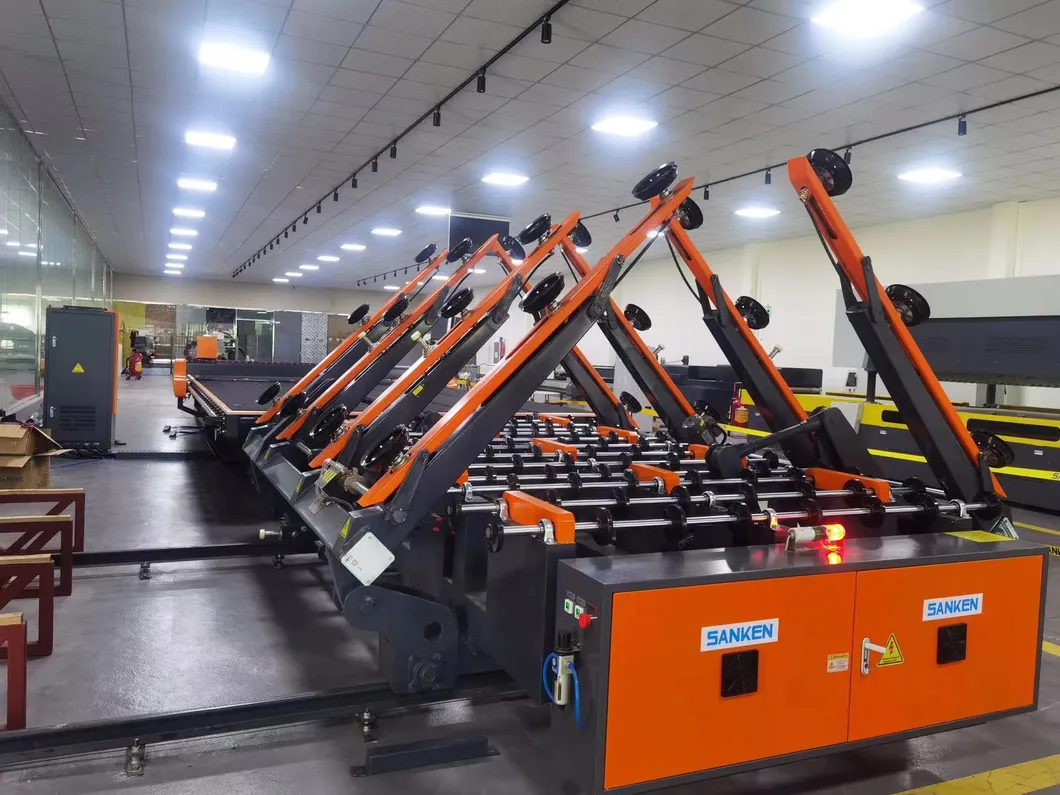

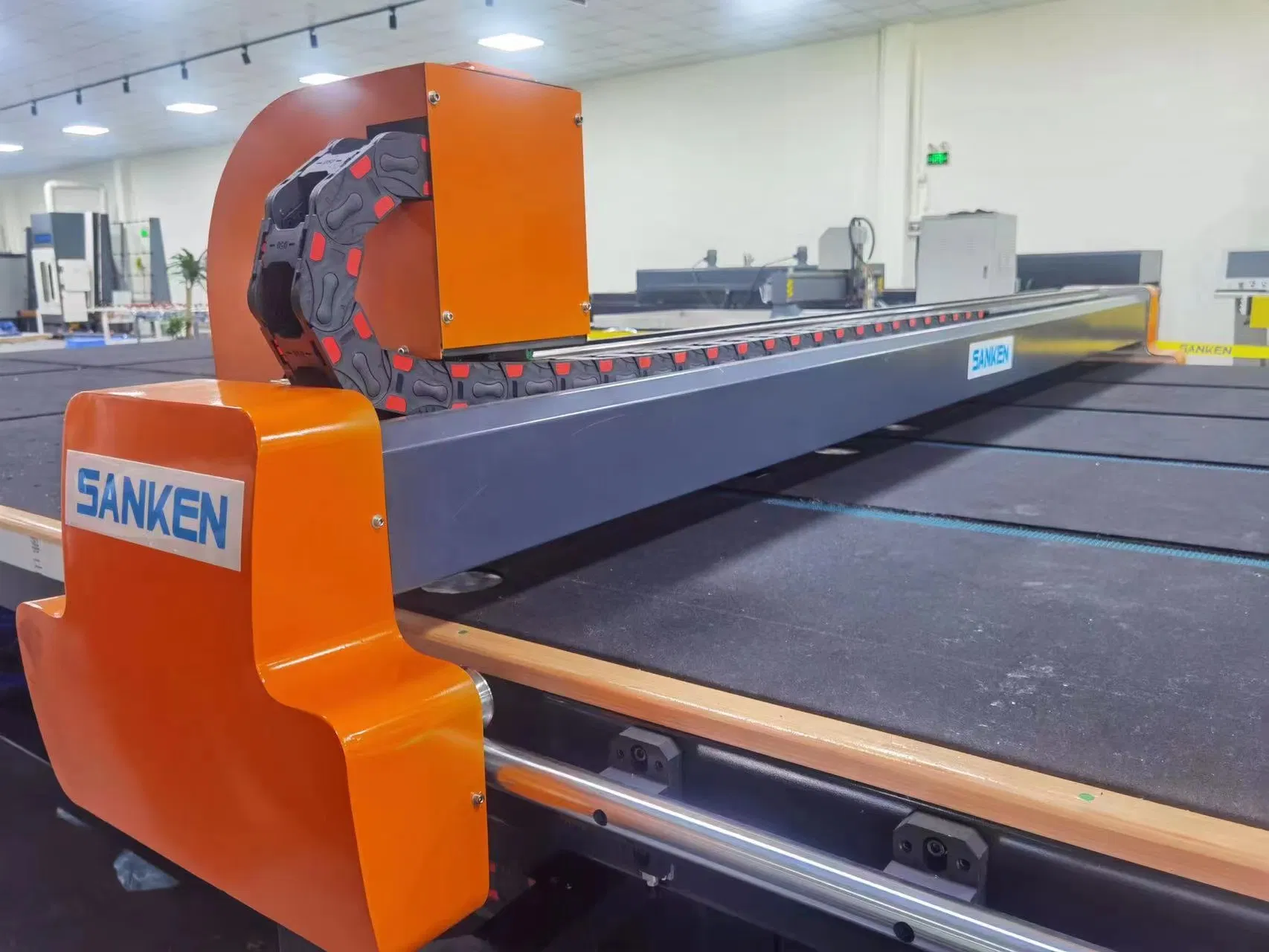

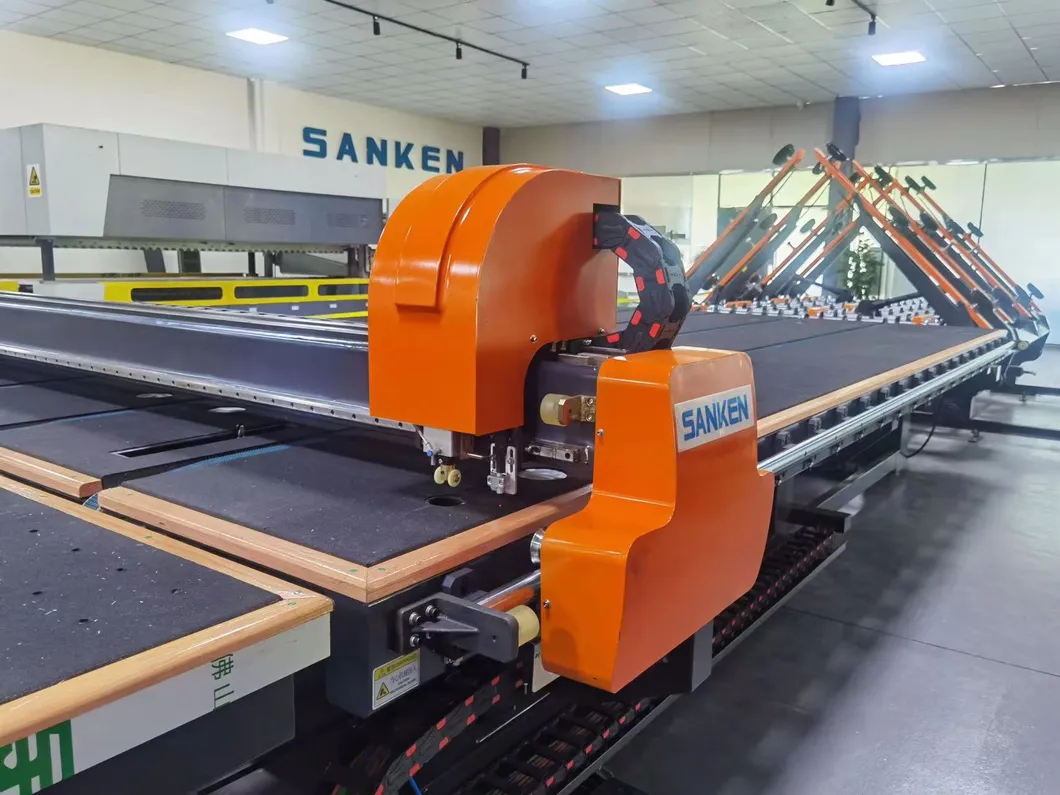

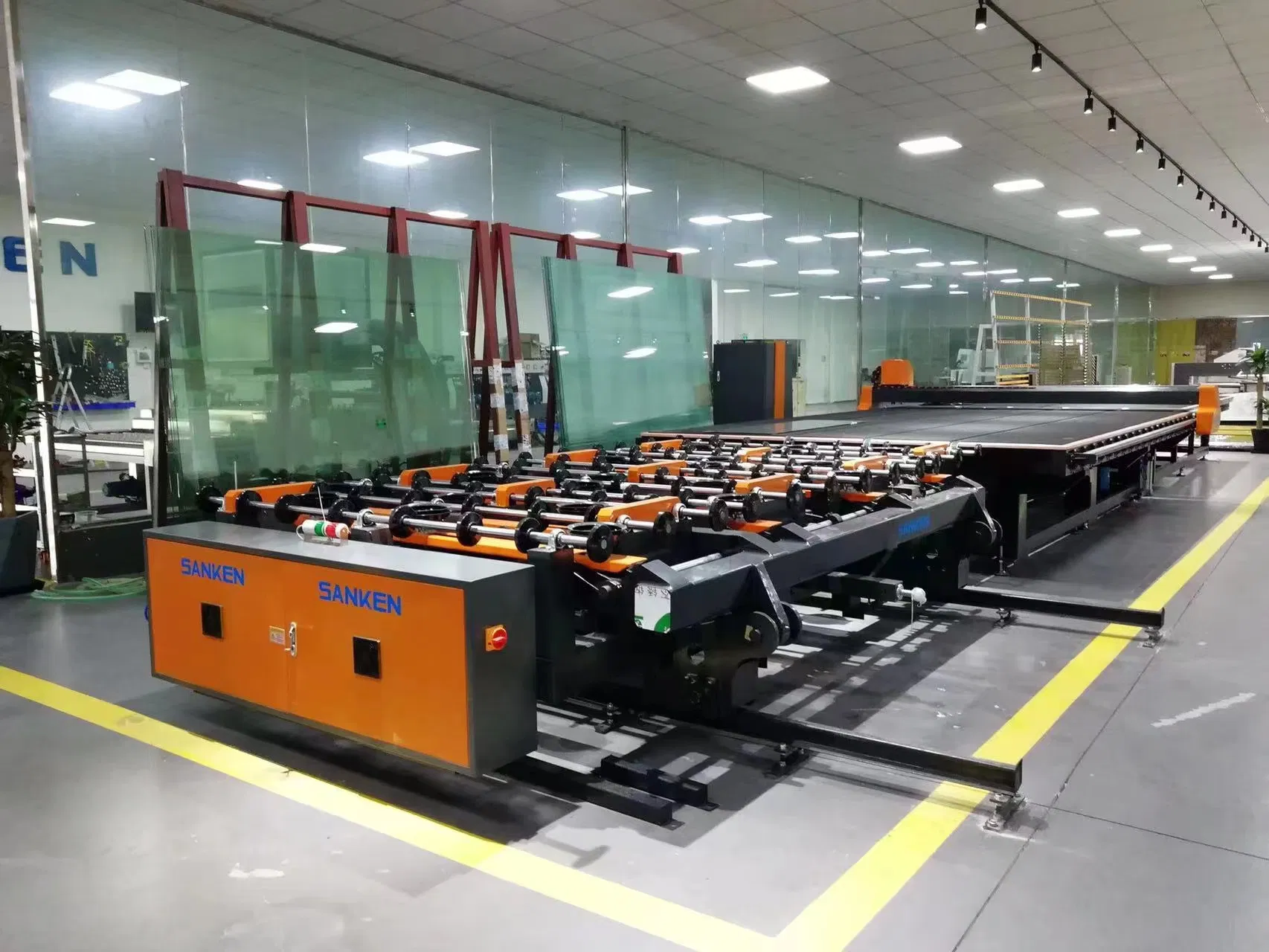

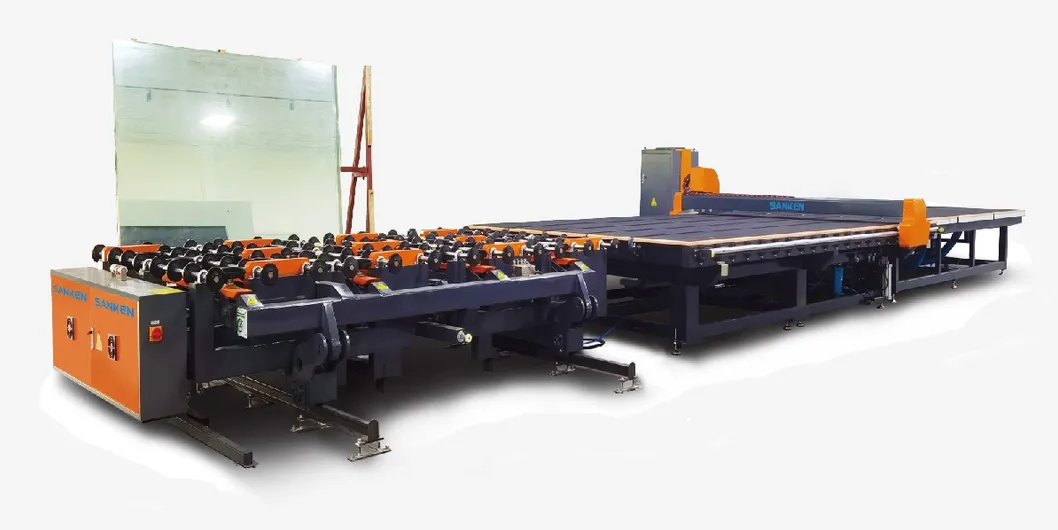

CNC Mirror Glass Loading Cutting Breaking Table SKCL-5033A is composed of auto glass loading table, CNC glass cutting machine and pneumatic glass breaking table. The advanced mechanical structure cooperates with Italy control system and cutting optimization software to create an international high-end automatic glass cutting line.
This system realizes the operations of automatic glass loading, glass transmission, automatic glass positioning, automatic glass optimization, automatic glass cutting, and pneumatic glass breaking. It greatly improves the glass cutting quality and cutting speed.
The CNC glass cutting line is suitable for cutting architectural glass, automobile glass, home appliance glass, furniture glass, solar glass, handicraft glass, bathroom glass mirror etc. It has been widely recognized by users due to its higher security, higher optimization rate, better stability, and faster speed.
| Model | Max. Size | Speed | Power | Thickness | Weight | Machine Size |
|---|---|---|---|---|---|---|
| SKCL-2620A | 2600 x 2000 mm | 0-180 m/min | 12 KW | 3-19 mm | 4.8 Tons | 9300 x 2900 x 920 mm |

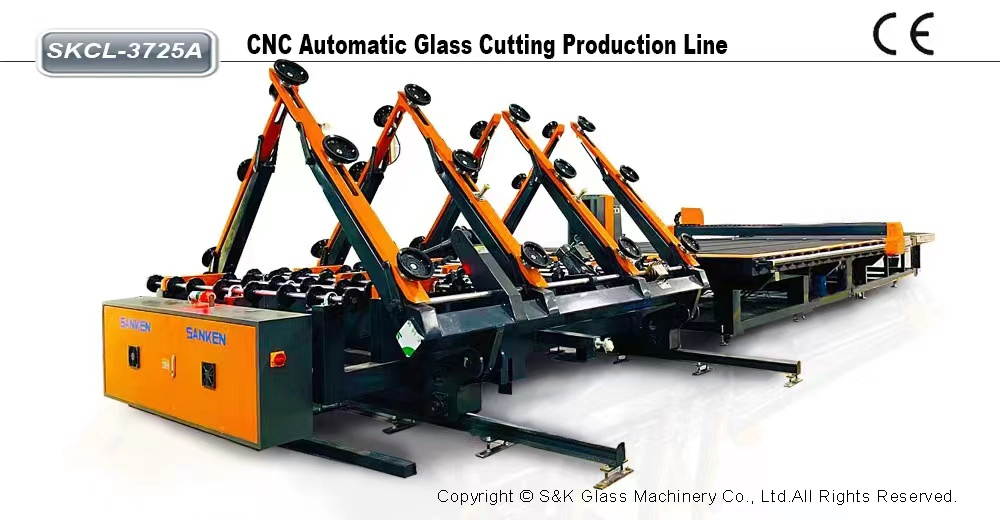

| SKCL-3725A | 3700 x 2500 mm | 0-180 m/min | 18.5 KW | 3-19 mm | 7.0 Tons | 14200 x 5700 x 920 mm |
| SKCL-5033A | 5000 x 3300 mm | 0-180 m/min | 25.5 KW | 3-19 mm | 9.5 Tons | 17000 x 7600 x 920 mm |
| SKCL-6033A | 6000 x 3300 mm | 0-180 m/min | 25.5 KW | 3-19 mm | 10.0 Tons | 19700 x 9600 x 920 mm |
