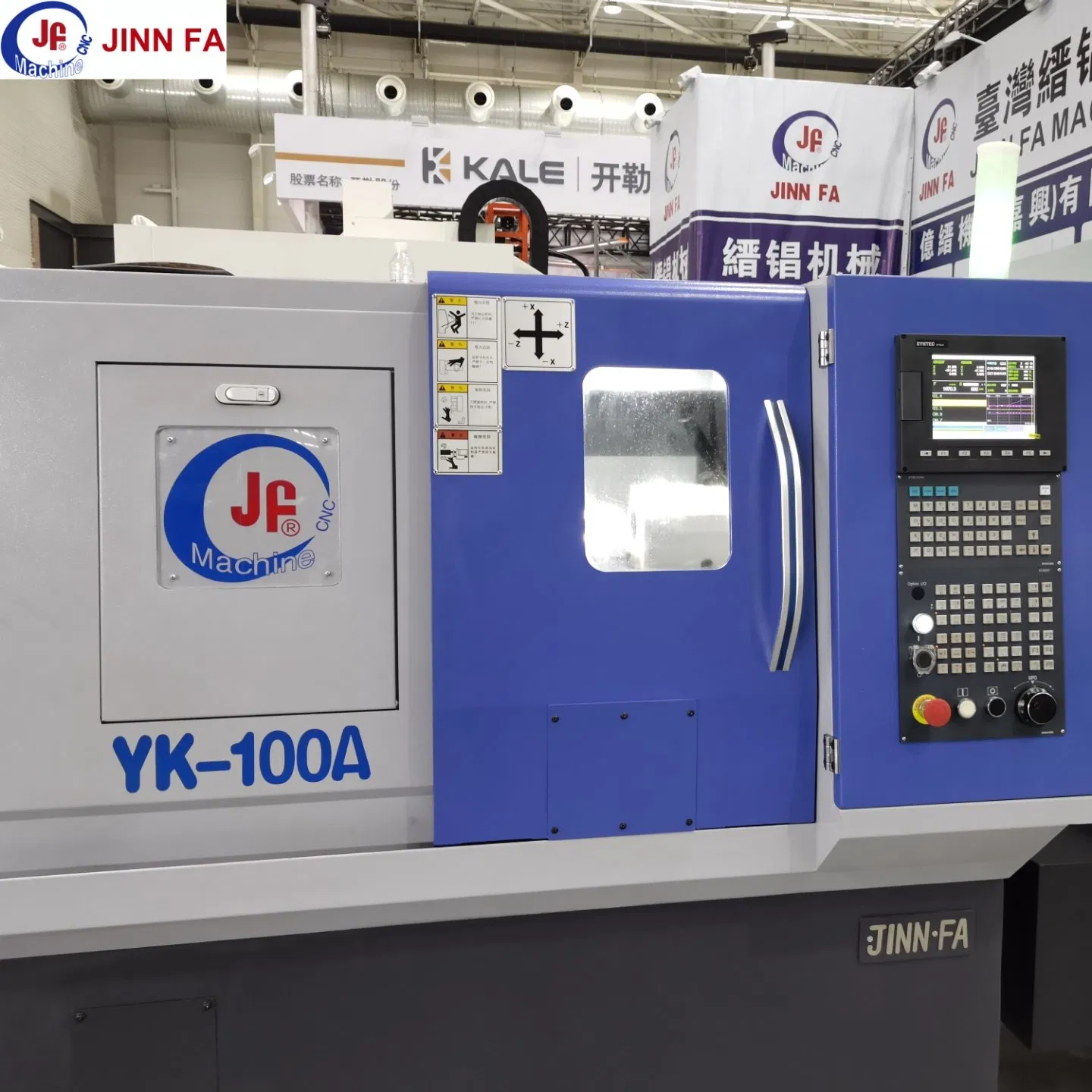

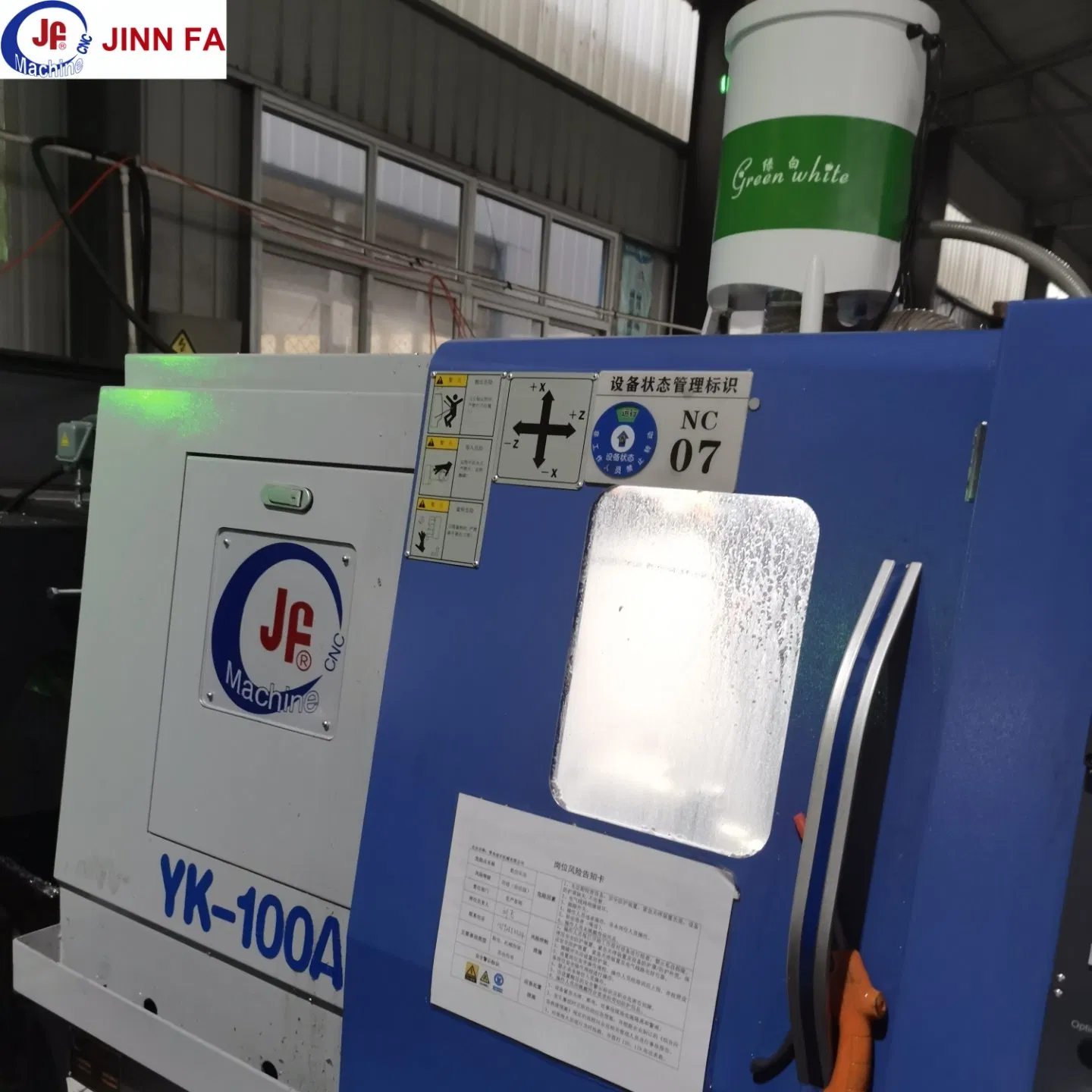

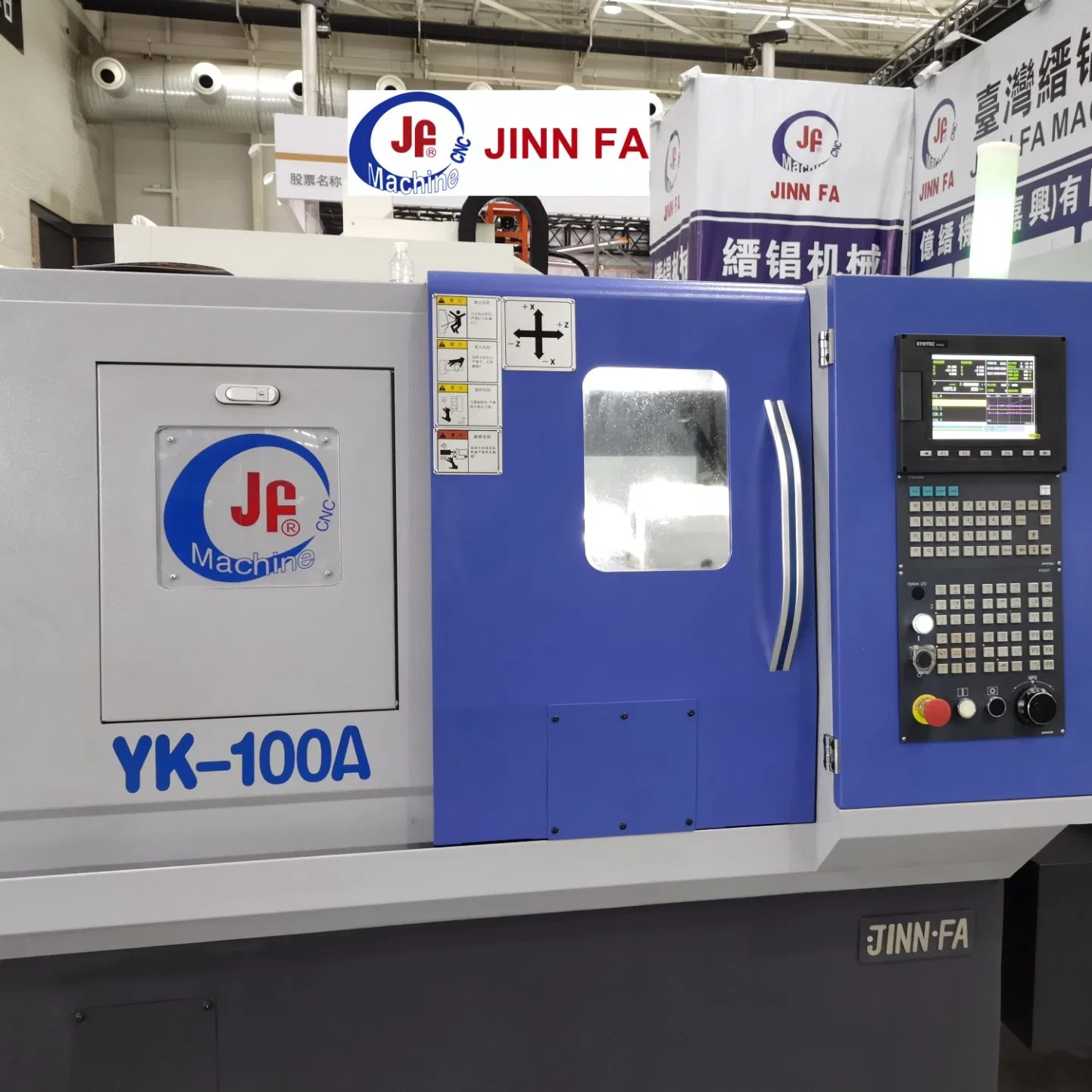

JINNFA  YK-100A  High Precision High Speed Automatic Lathe CNC Machining with Slent Bed
JINNFA  YK-100A  High Precision High Speed Automatic Lathe CNC Machining with Slent Bed
JINNFA  YK-100A  High Precision High Speed Automatic Lathe CNC Machining with Slent Bed
JINNFA  YK-100A  High Precision High Speed Automatic Lathe CNC Machining with Slent Bed
JINNFA  YK-100A  High Precision High Speed Automatic Lathe CNC Machining with Slent Bed
1 / 5
JINNFA  YK-100A  High Precision High Speed Automatic Lathe CNC Machining with Slent Bed
JINNFA  YK-100A  High Precision High Speed Automatic Lathe CNC Machining with Slent Bed
JINNFA  YK-100A  High Precision High Speed Automatic Lathe CNC Machining with Slent Bed
JINNFA  YK-100A  High Precision High Speed Automatic Lathe CNC Machining with Slent Bed
JINNFA  YK-100A  High Precision High Speed Automatic Lathe CNC Machining with Slent Bed

JINNFA  YK-100A  High Precision High Speed Automatic Lathe CNC Machining with Slent Bed

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

⚙️ Basic Information
Model NO. YK-100A
Application Metal
Process Usage Metal-Cutting CNC Machine Tools
Movement Method Linear Control
Control Method Closed-Loop Control
Numerical Control CNC/MNC
Processing Precision 0.01
Certification CE, ISO 9001, Duns
Processing Method Precision Machining
📝 Product Description

YK-100E / YK-100 / YK-100A Series

The machine tool adopts an inclined bed and hard rail design with high-strength turning function. It provides high accuracy and excellent stability. Widely used in precision parts for automotive, electronic, instrumentation, aerospace, and air hydraulic components.

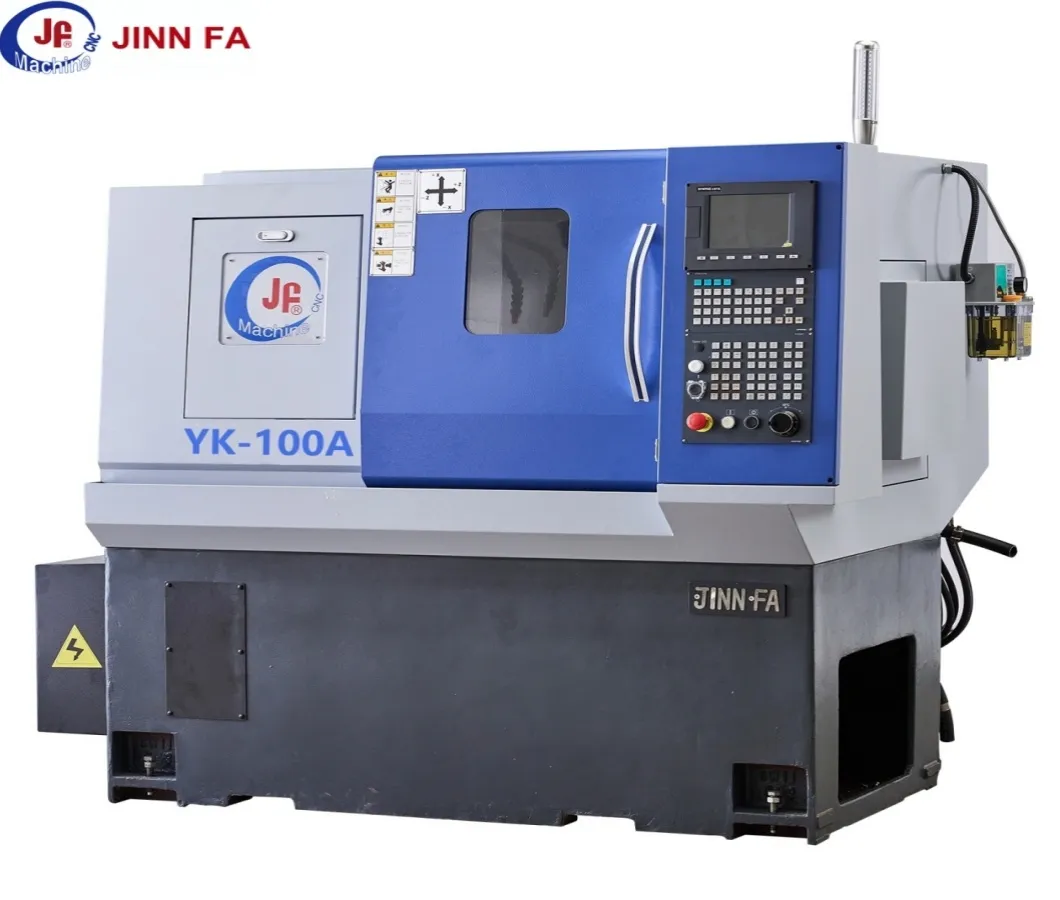

Precision CNC Machining Center

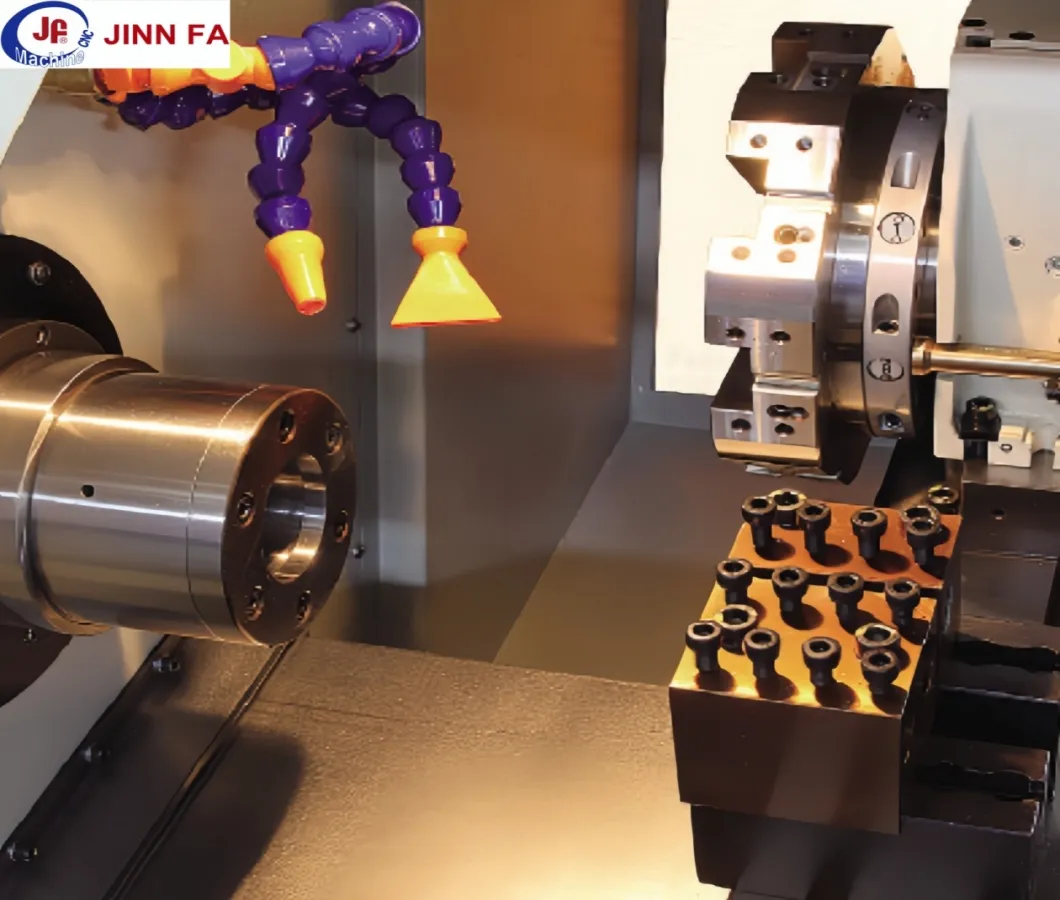

High Speed Automatic Lathe
📊 Technical Parameters
ITEM UNIT YK100E YK100/YK100A
Max.swing overbedmm320320
Max.turning diametermmØ180Ø180
Max.turning lengthmm220220
Max.bar capacitymmØ42Ø42
Spindle bore diametermmØ55.5Ø55.5
Spindle speed rangerpm45~400045~4000
Number of tool stations-Gang typeHydraulic turret-10T
Max.stroke X/Z axismm110/230110/230
Machine dimensionsmm1800×1550×17801800×1550×1780
Weightkg22002350
🏆 Key Advantages
💰
Simplicity and Affordability: Gang tool lathes are more cost-effective as the standard axis servos handle tool changes, reducing complexity and motorized parts costs.
🎯
Superior Precision: Simpler moving parts reduce tolerance stack-up. The design is optimized for moving parts across shorter, more precise distances.
⚡
High Speed: Tool changes are incredibly fast utilizing slide motion, eliminating the index time required by traditional turrets.
🛠️
Quick Installation: Fast setup times with simple tool sets and easy block switching for different drill sizes.
🛡️
Durability: Built for robustness with fewer moving parts, making the machine less prone to malfunctions and mechanical errors.
📜 Industrial Certifications

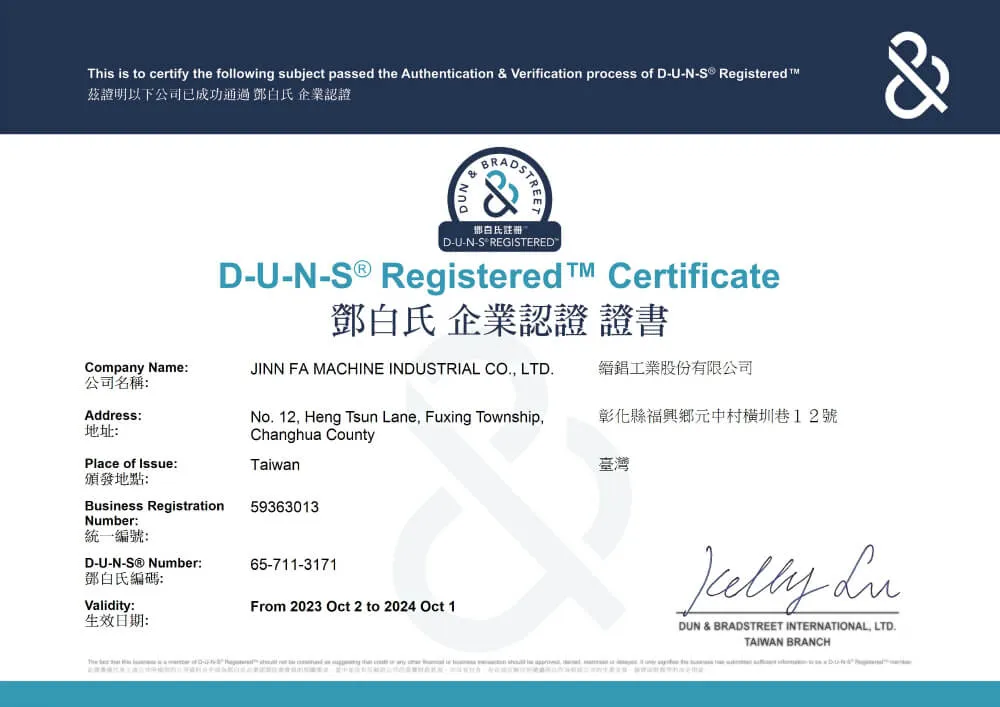

Main Certification

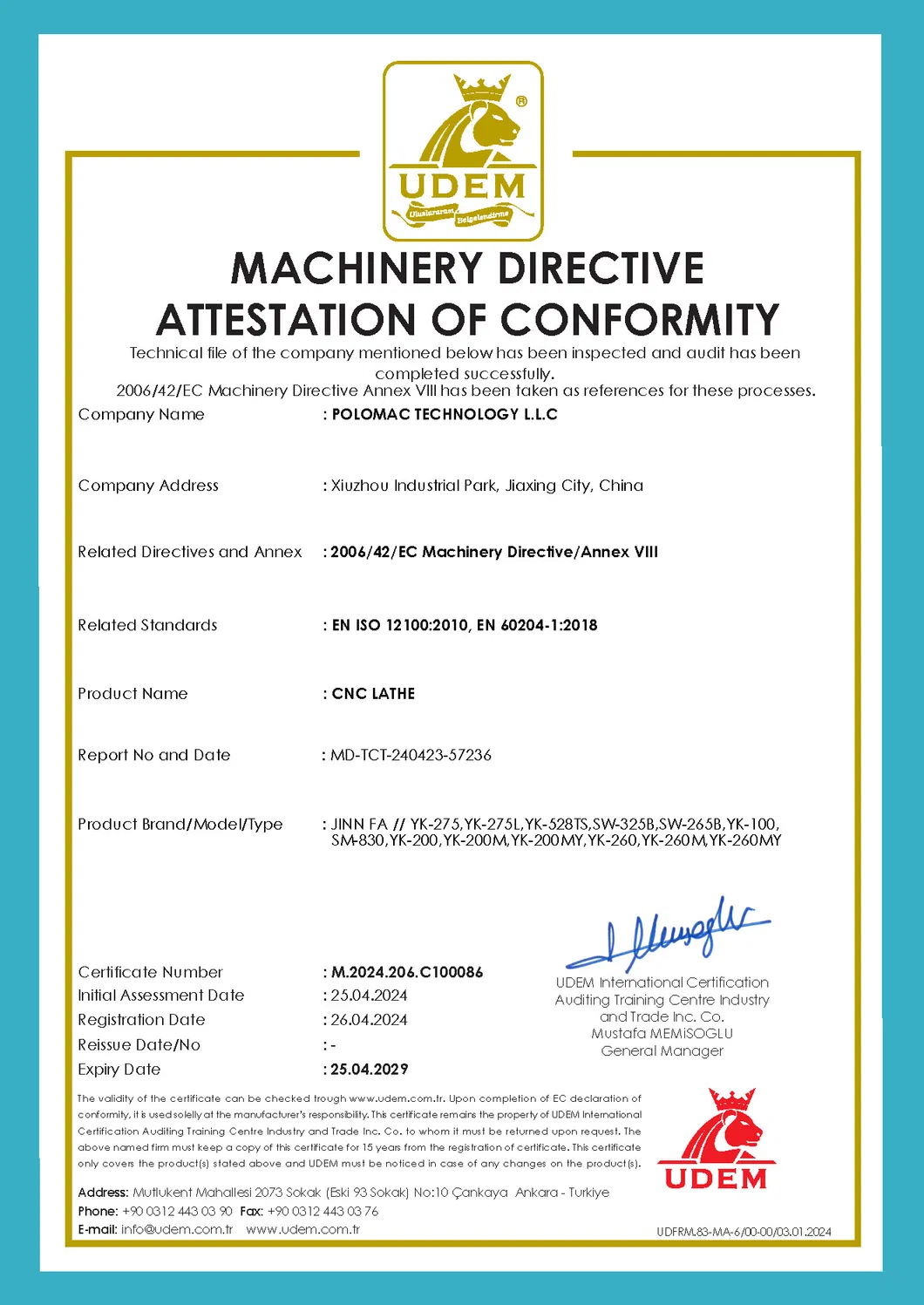

Certification 1

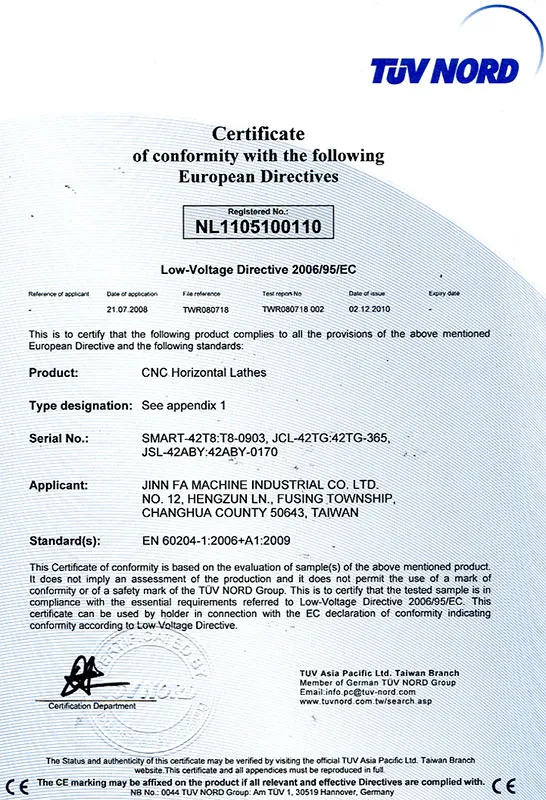

Certification 2
Certification 3
📦 Packaging & Shipping
Packing 1
Packing 2
Packing 3
❓ Frequently Asked Questions
1. What is your minimum order quantity and warranty? The MOQ is one set, and all machines come with a one-year warranty.
2. Which CNC systems are available for your machines? We support major systems including FANUC, SIEMENS, MITSUBISHI, GSK, and SYNTEC, depending on your specific requirements.
3. How do I choose the most suitable machine for my project? You can provide us with your technical specifications or product drawings, and our experts will recommend the most efficient model for your needs.
4. What are your main product lines? Our core expertise includes CNC lathes, CNC milling machines, vertical machining centers, Swiss-style automatic lathes, and precision grinders.
5. Do you provide technical support? Yes, we provide comprehensive technical support, including on-site assistance when required.
6. What are your standard payment terms? We typically accept T/T (30% deposit, 70% before shipment) or irrevocable LC at sight.
