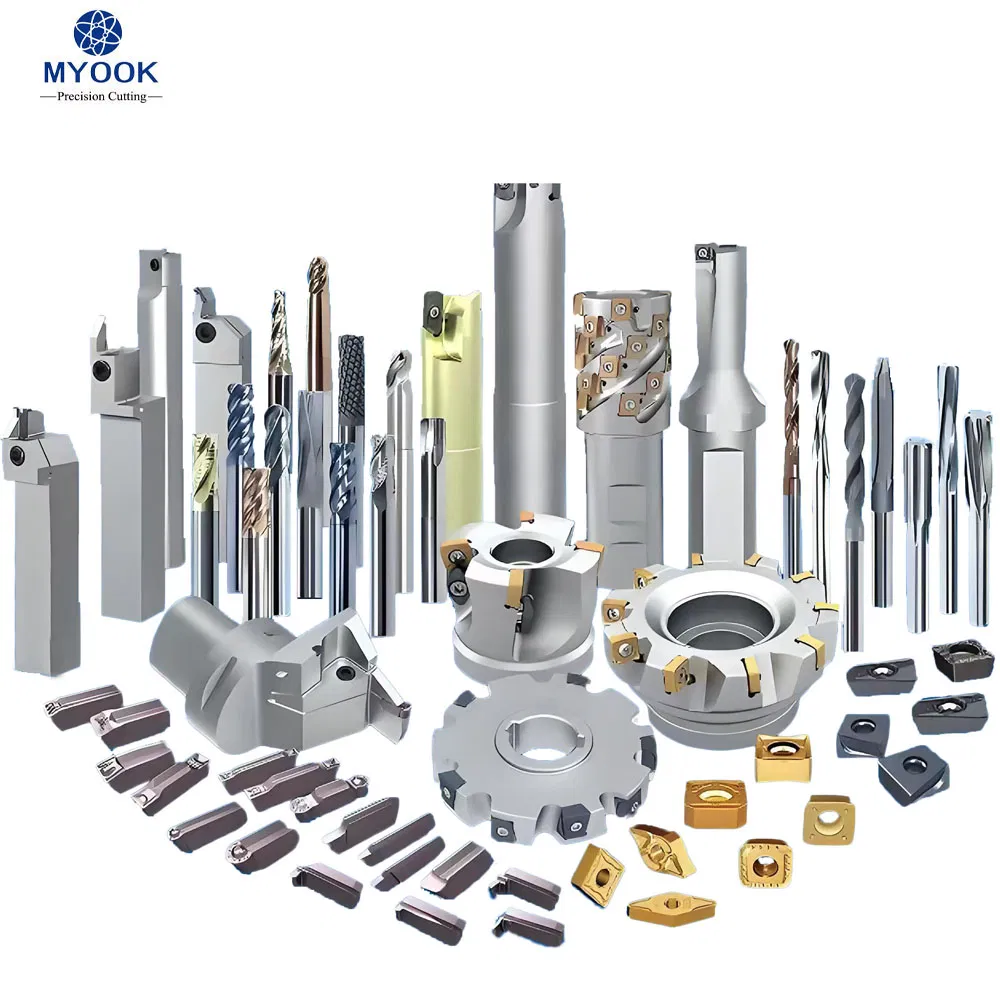

We possess strong technical strength in CNC Indexable tool holders and carbide inserts, including Turning tool holders, Milling tool holders (for external & internal machining), Threading tool holders, and Grooving tool holders. All sizes of carbide inserts are available to ensure a perfect fit.

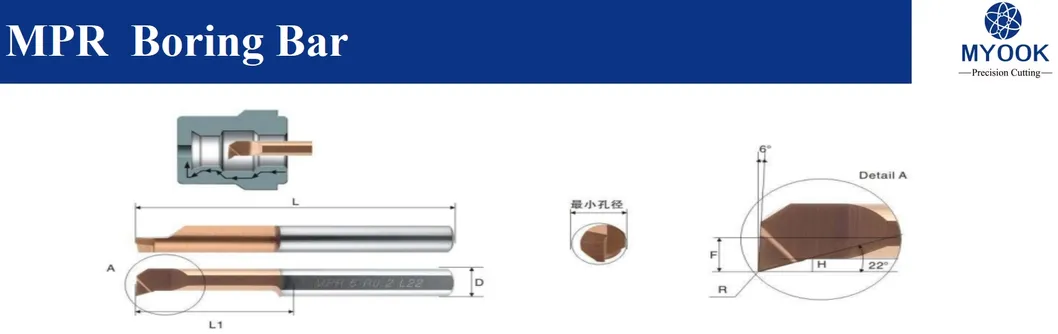

The following figure and table show the standard model data. We also produce related models. If you have any other standard or special model requirements, please feel free to communicate with us.
| D | Type | L | L1 | R | H | F | Minimum |
|---|---|---|---|---|---|---|---|
| 2.0 | MPR 2 R0.1 L10 | 50 | 10 | 0.10 | 0.5 | 0.8 | 2.1 |
| MPR 2 R0.15 L5 | 50 | 5 | 0.15 | 0.5 | 0.8 | 2.1 | |
| MPR 2 R0.15 L10 | 50 | 10 | 0.15 | 0.5 | 0.8 | 2.1 | |
| MPR 2 R0.15 L15 | 50 | 15 | 0.15 | 0.5 | 0.8 | 2.1 | |
| 3.0 | MPR 3 R0.15 L15 | 50 | 15 | 0.15 | 0.7 | 1.3 | 3.1 |
| MPR 3 R0.2 L22 | 50 | 22 | 0.20 | 0.7 | 1.3 | 3.1 | |
| 4.0 | MPR 4 R0.15 L22 | 50 | 22 | 0.15 | 0.8 | 1.7 | 4.1 |
| MPR 4 R0.2 L22 | 50 | 22 | 0.20 | 0.8 | 1.7 | 4.1 |
