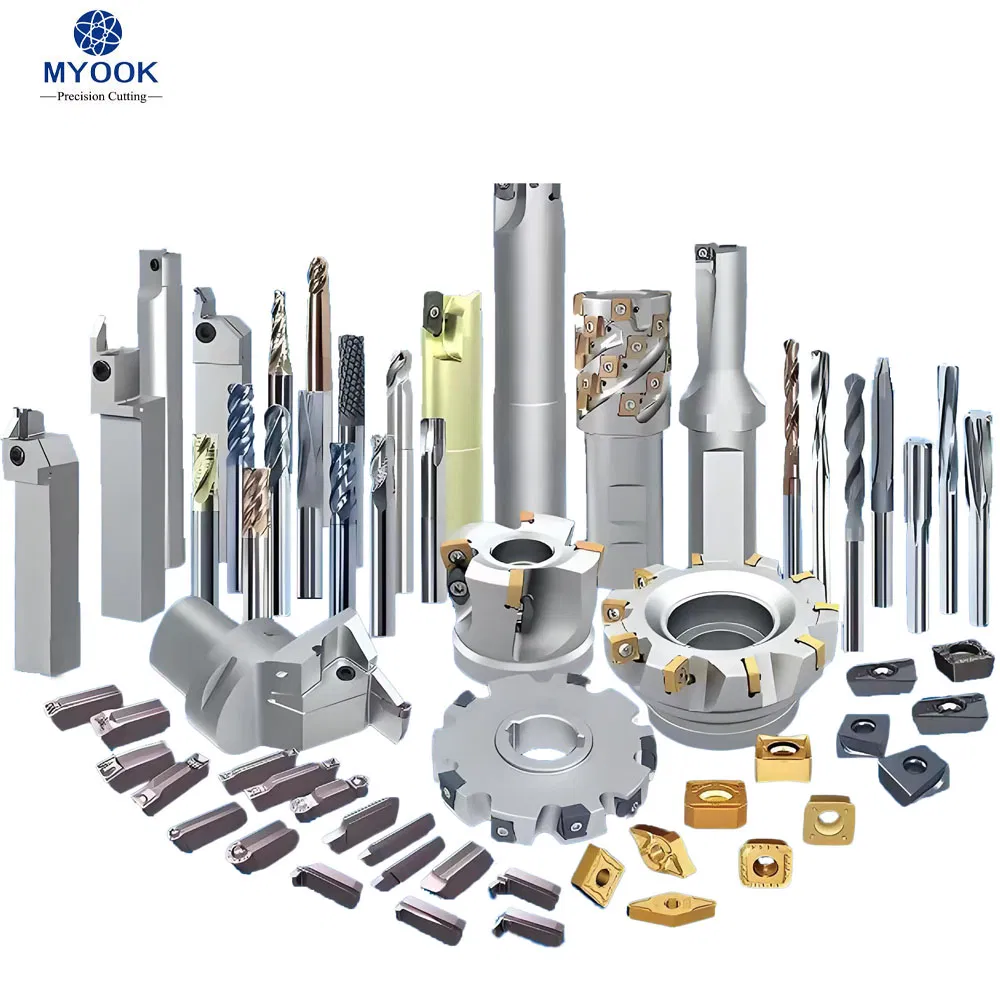

We possess strong technical strength in CNC indexable tool holders and carbide inserts. Our comprehensive range includes turning tool holders and milling tool holders (for both external and internal machining), threading tool holders, and grooving tool holders. All standard sizes of carbide inserts are available to fit these tools perfectly.
Key Product Features:

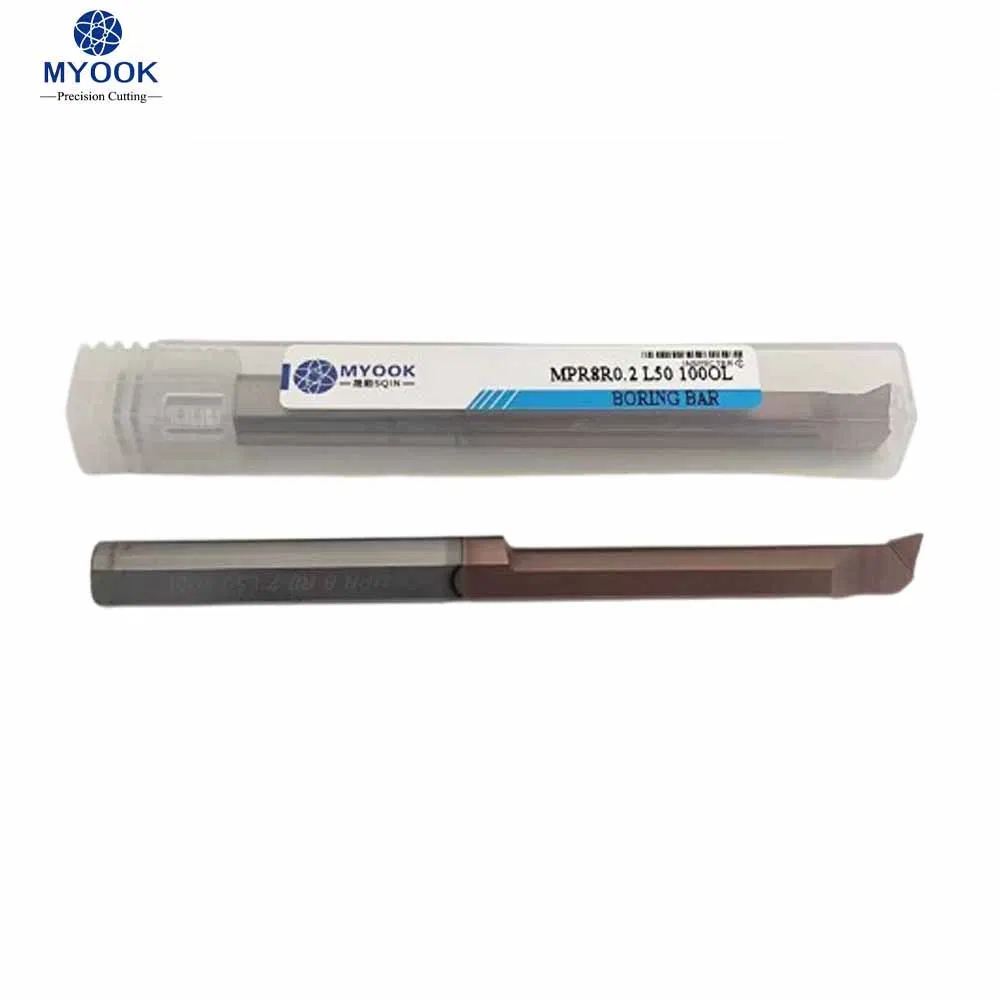

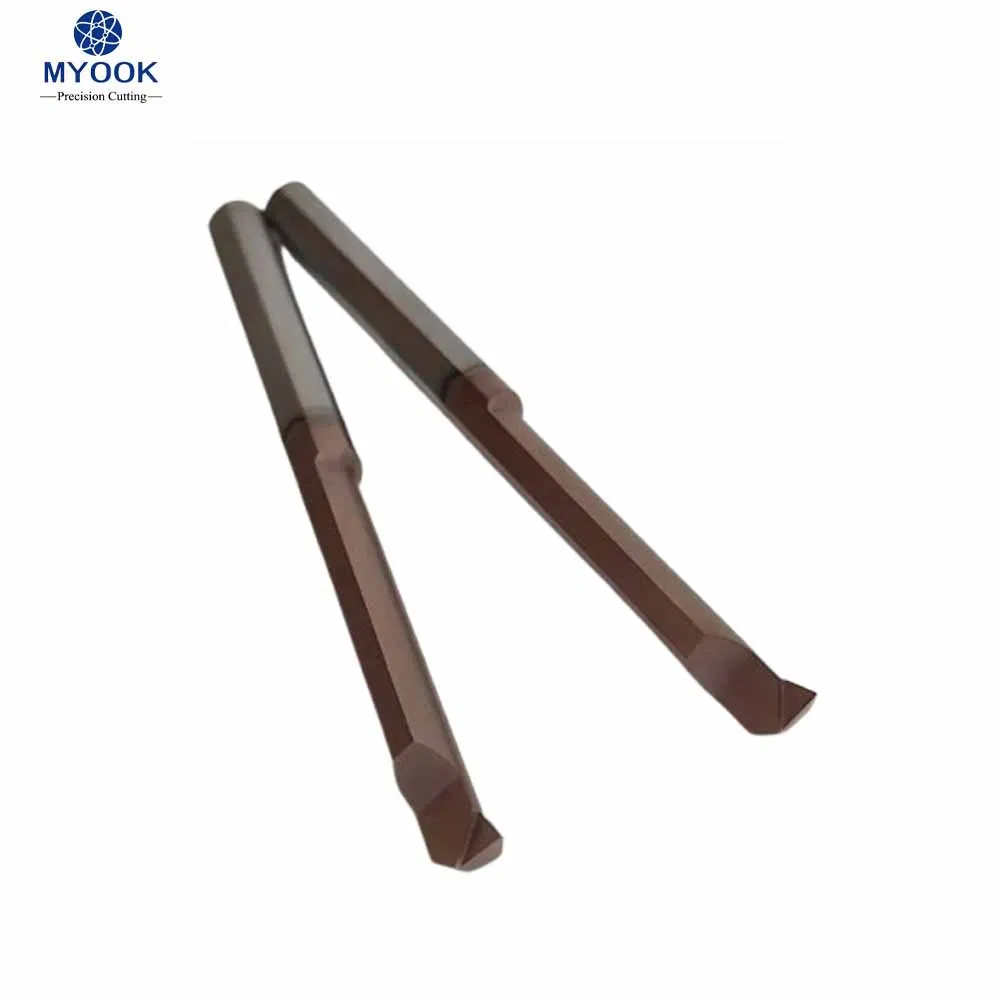

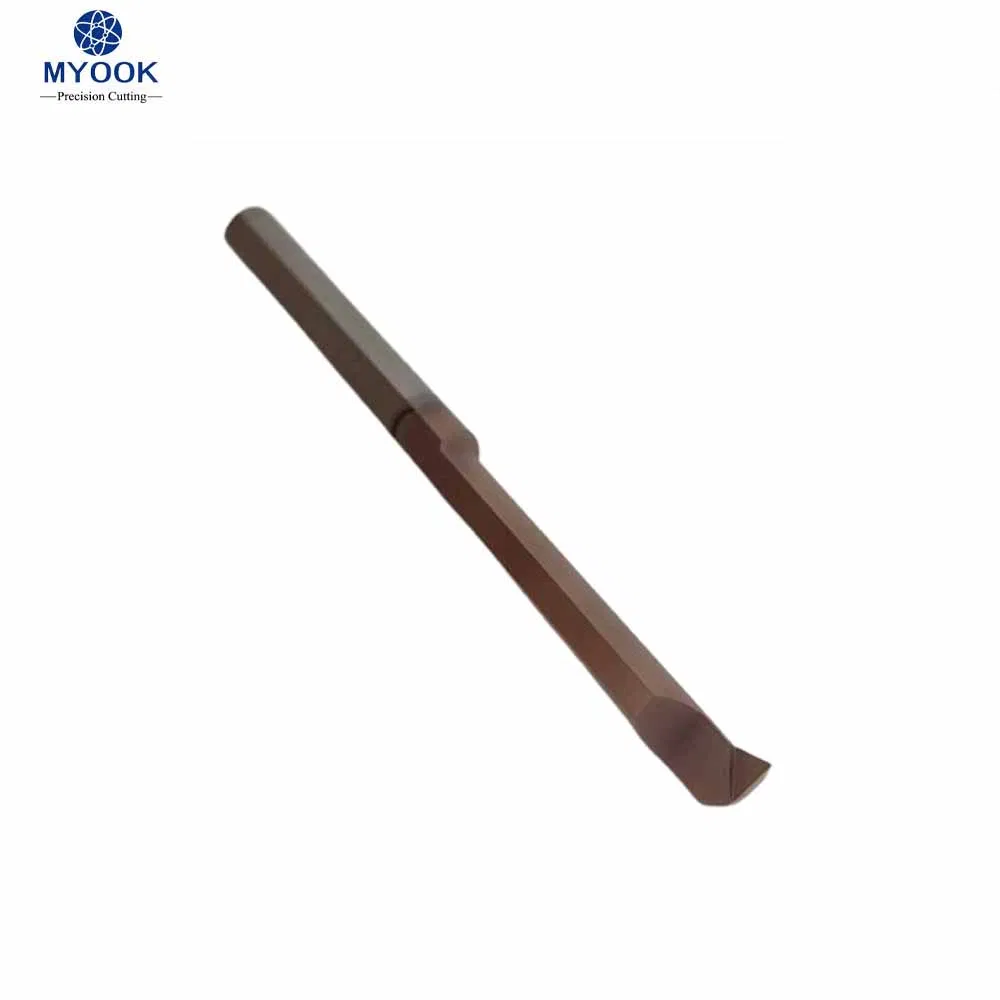

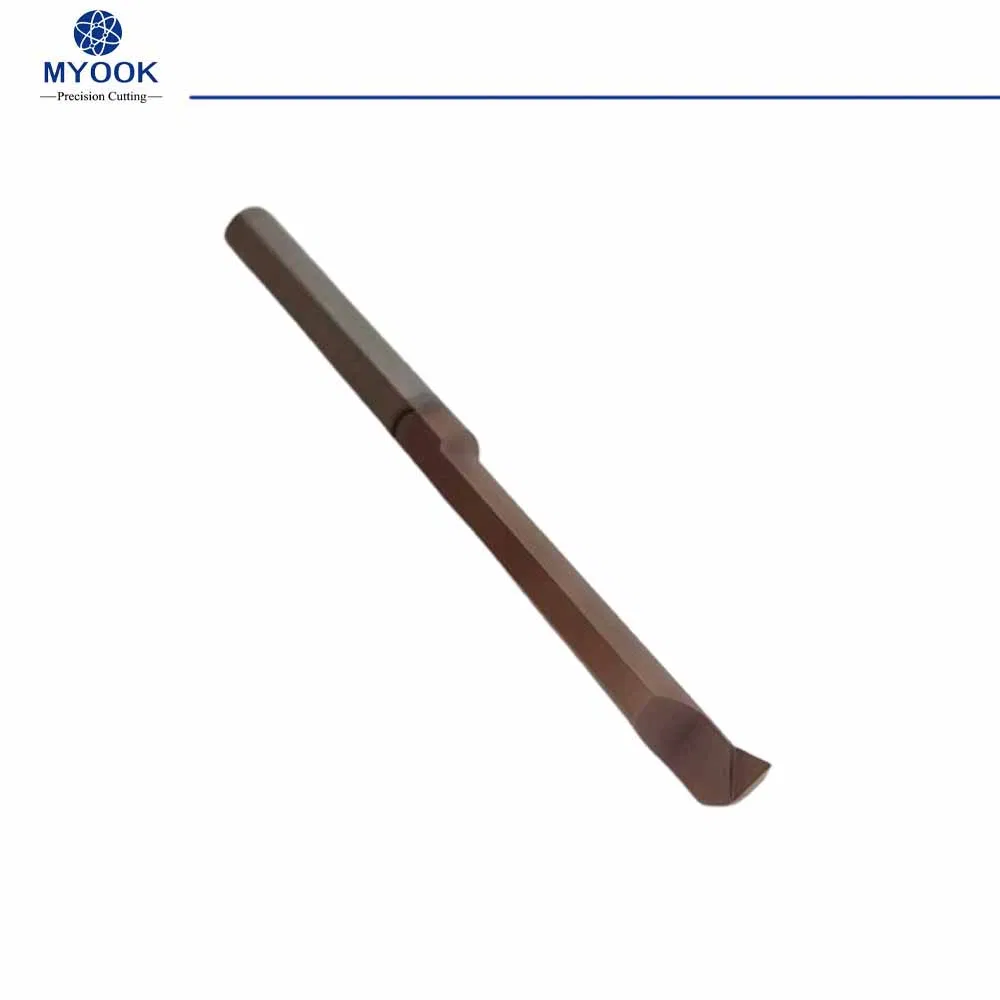

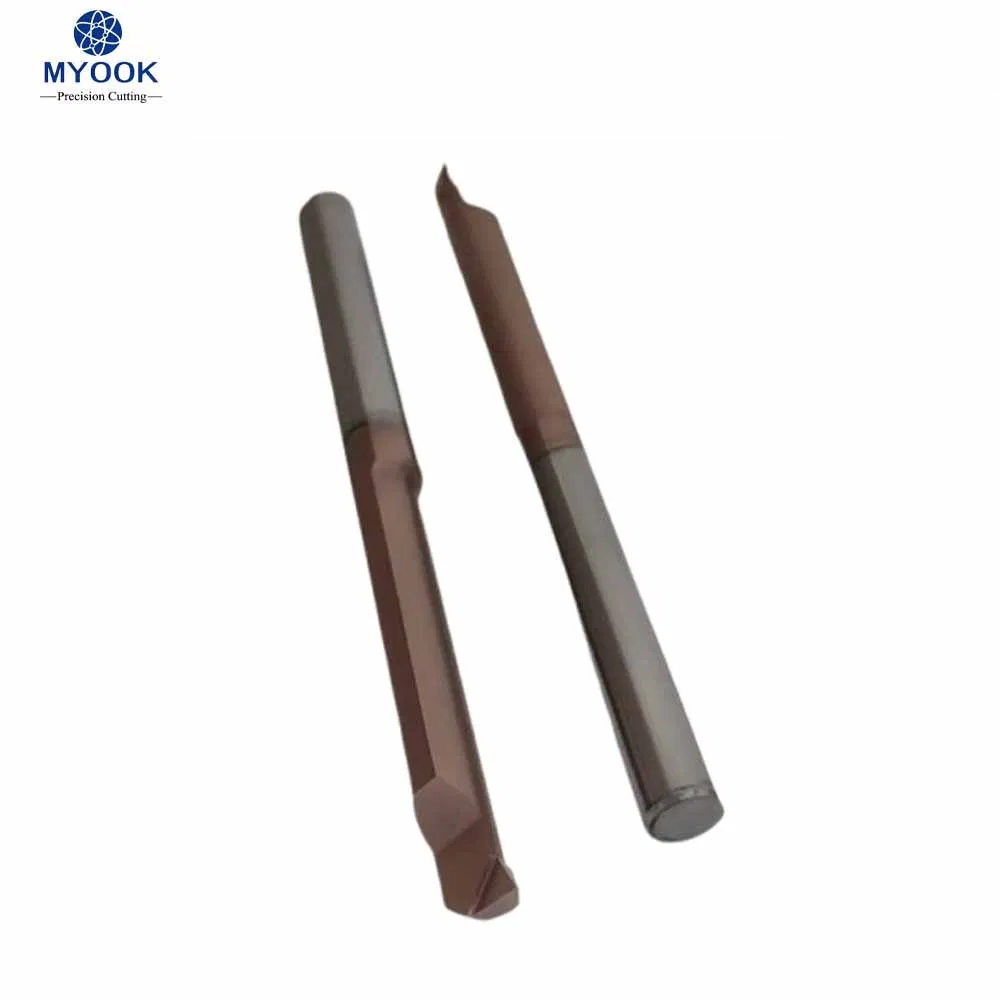

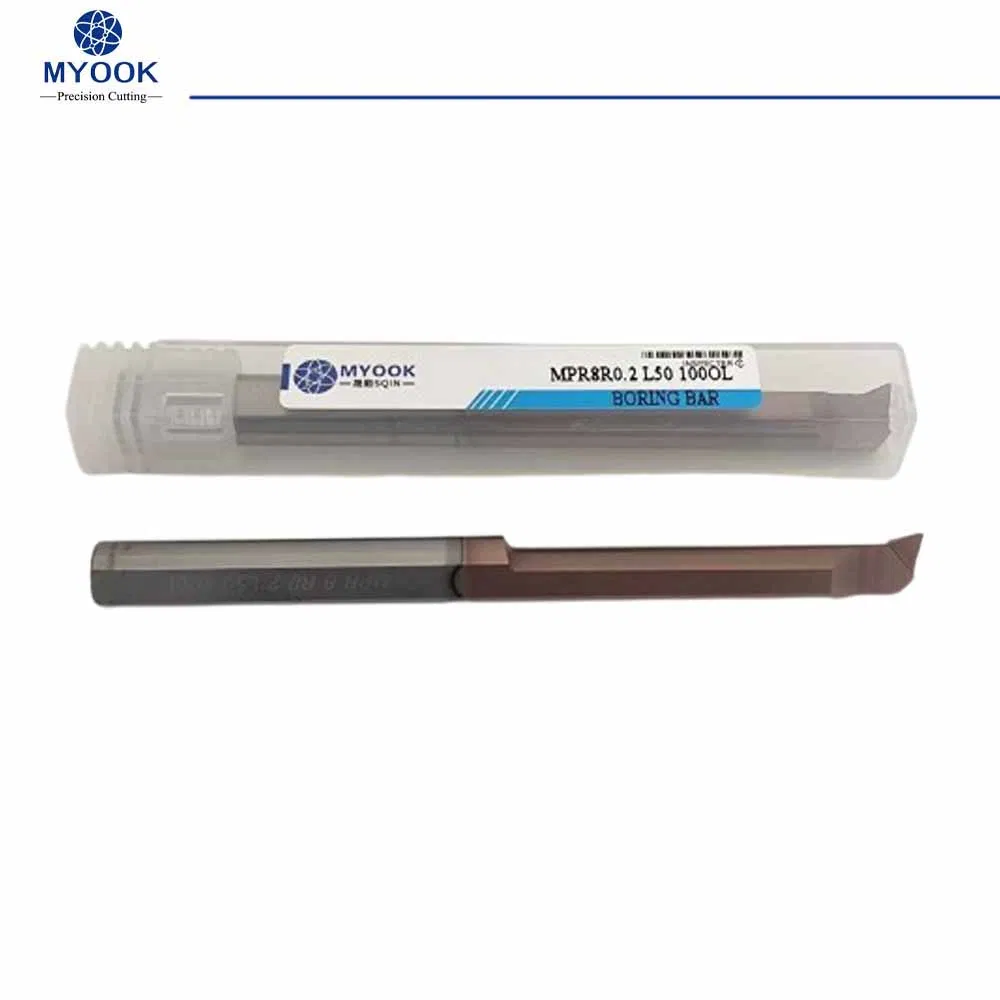

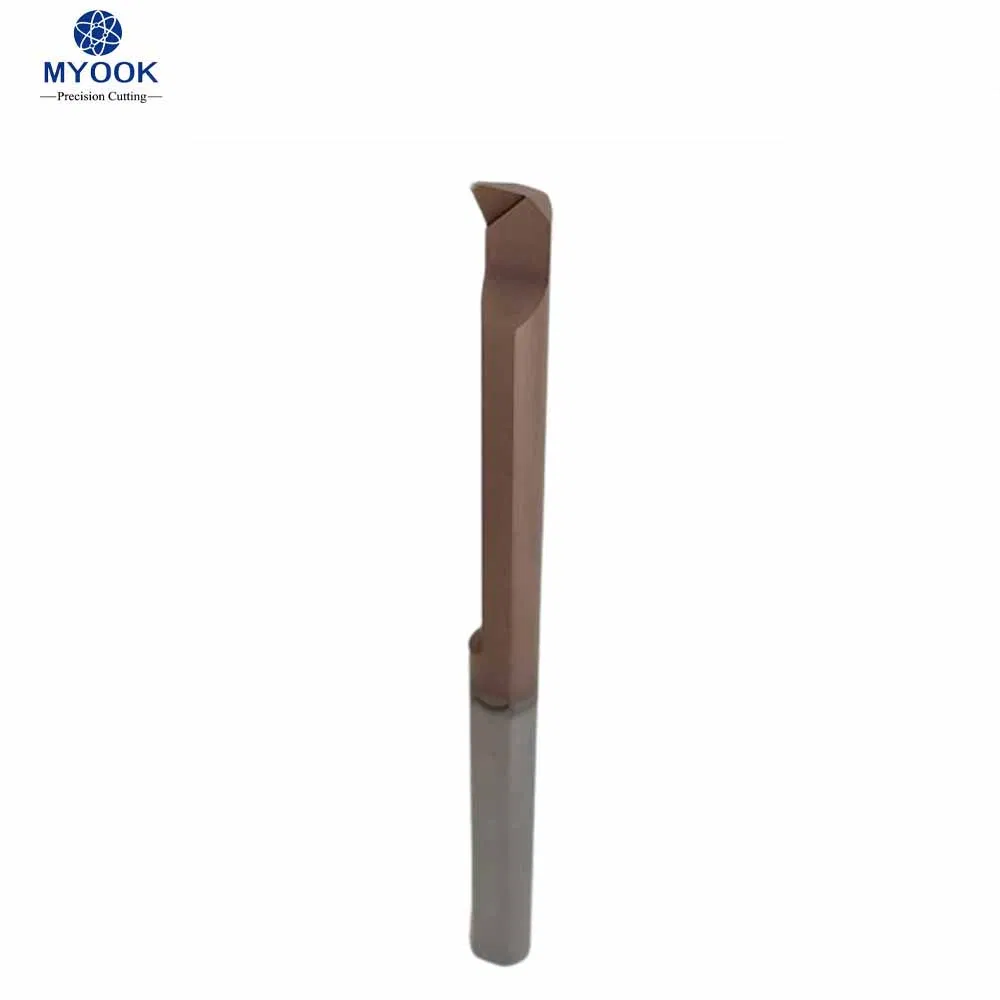

Specifications for Solid Carbide MPR8R0.2 L50 100OL CNC Lathe Machining Internal Turning Angle R0.2 Micro-Groove Boring Bar are detailed below.

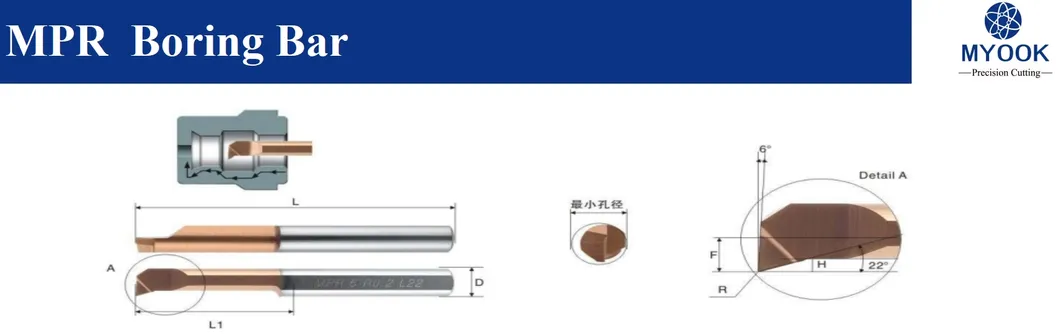

We provide various models to suit your specific machining needs. The following figure and table display standard model data. For special requirements or other models, please contact us for more information.
| D | Type | L | L1 | R | H | F | Minimum Bore |
|---|---|---|---|---|---|---|---|
| 2.0 | MPR 2 R0.1 L10 | 50 | 10 | 0.10 | 0.5 | 0.8 | 2.1 |
| 2.0 | MPR 2 R0.15 L5 | 50 | 5 | 0.15 | 0.5 | 0.8 | 2.1 |
| 3.0 | MPR 3 R0.15 L15 | 50 | 15 | 0.15 | 0.7 | 1.3 | 3.1 |
| 4.0 | MPR 4 R0.15 L10 | 50 | 10 | 0.15 | 0.8 | 1.7 | 4.1 |
| 5.0 | MPR 5 R0.2 L22 | 50 | 22 | 0.20 | 1.2 | 2.1 | 5.1 |
| 6.0 | MPR 6 R0.2 L15 | 50 | 15 | 0.20 | 1.4 | 2.8 | 6.1 |
| 8.0 | MPR 8 R0.2 L22 | 64 | 22 | 0.20 | 1.6 | 3.8 | 8.1 |
| 10.0 | MPR 10 R0.2 L35 | 73 | 35 | 0.20 | 2.0 | 4.8 | 10.1 |
