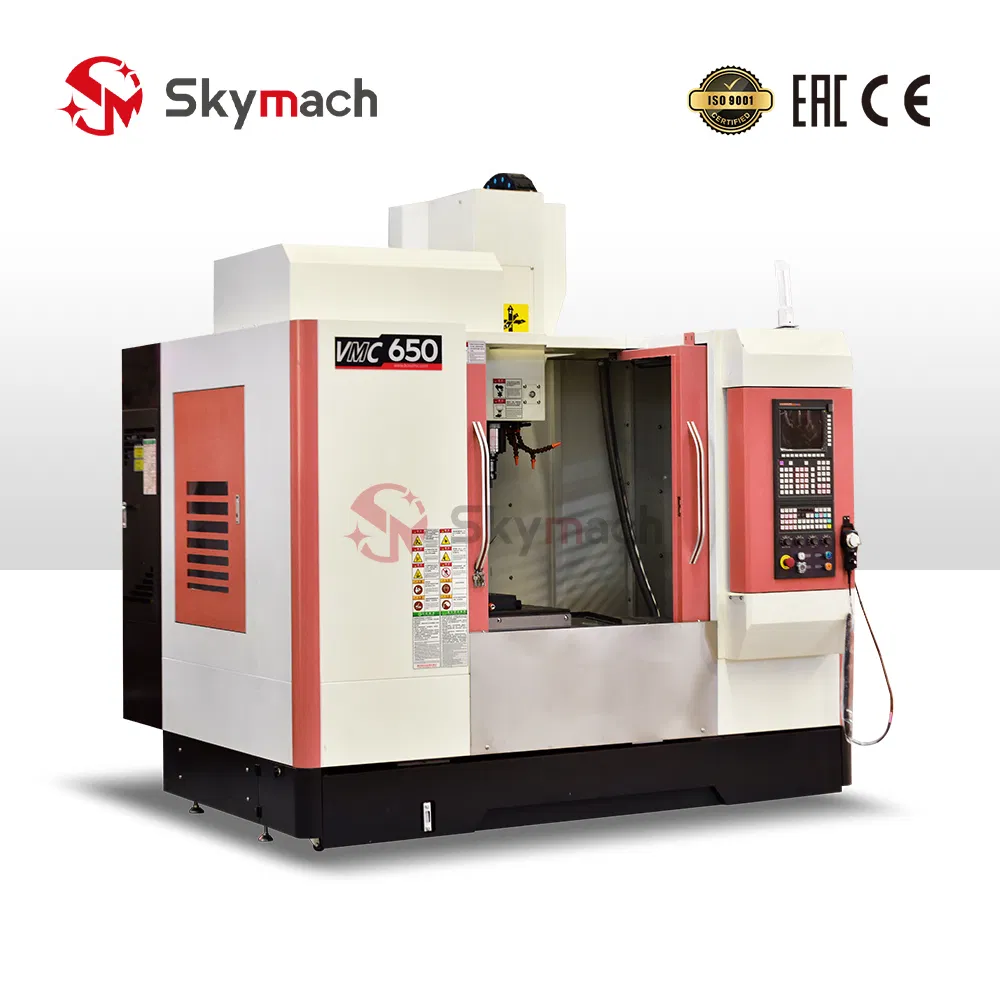

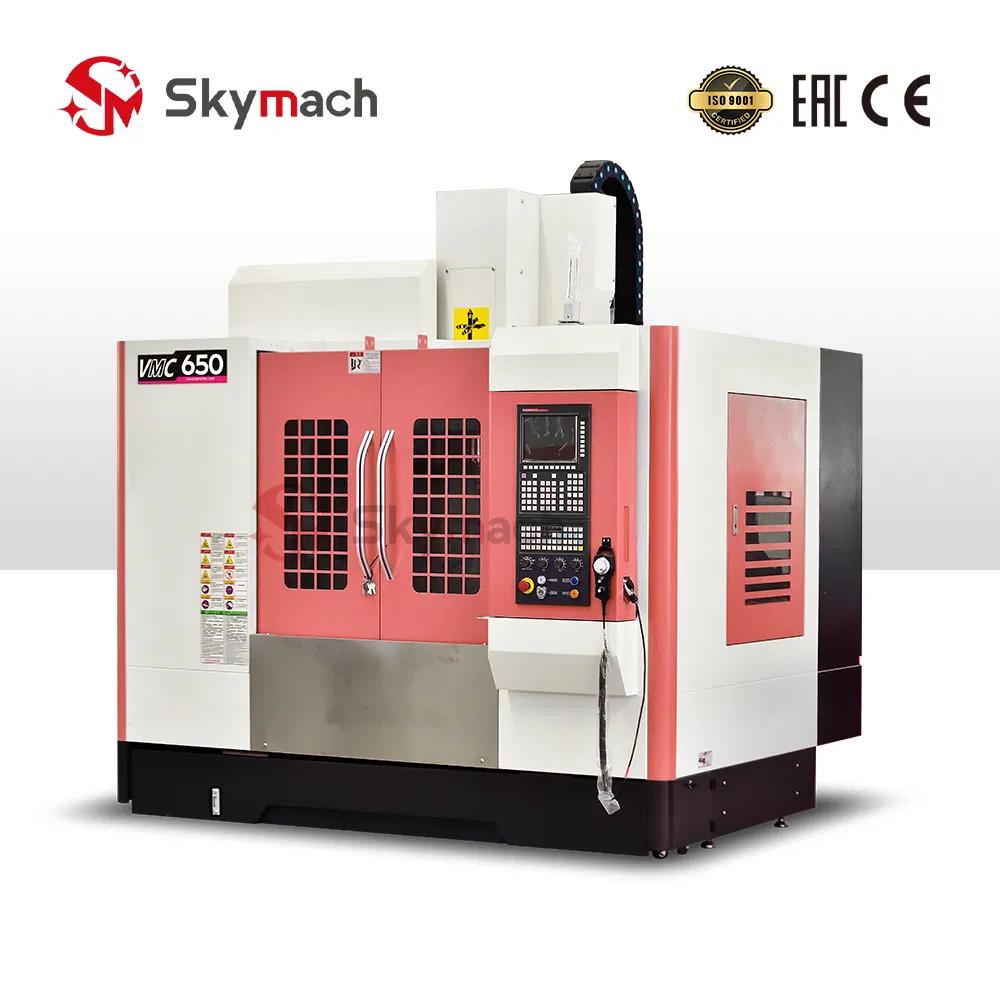

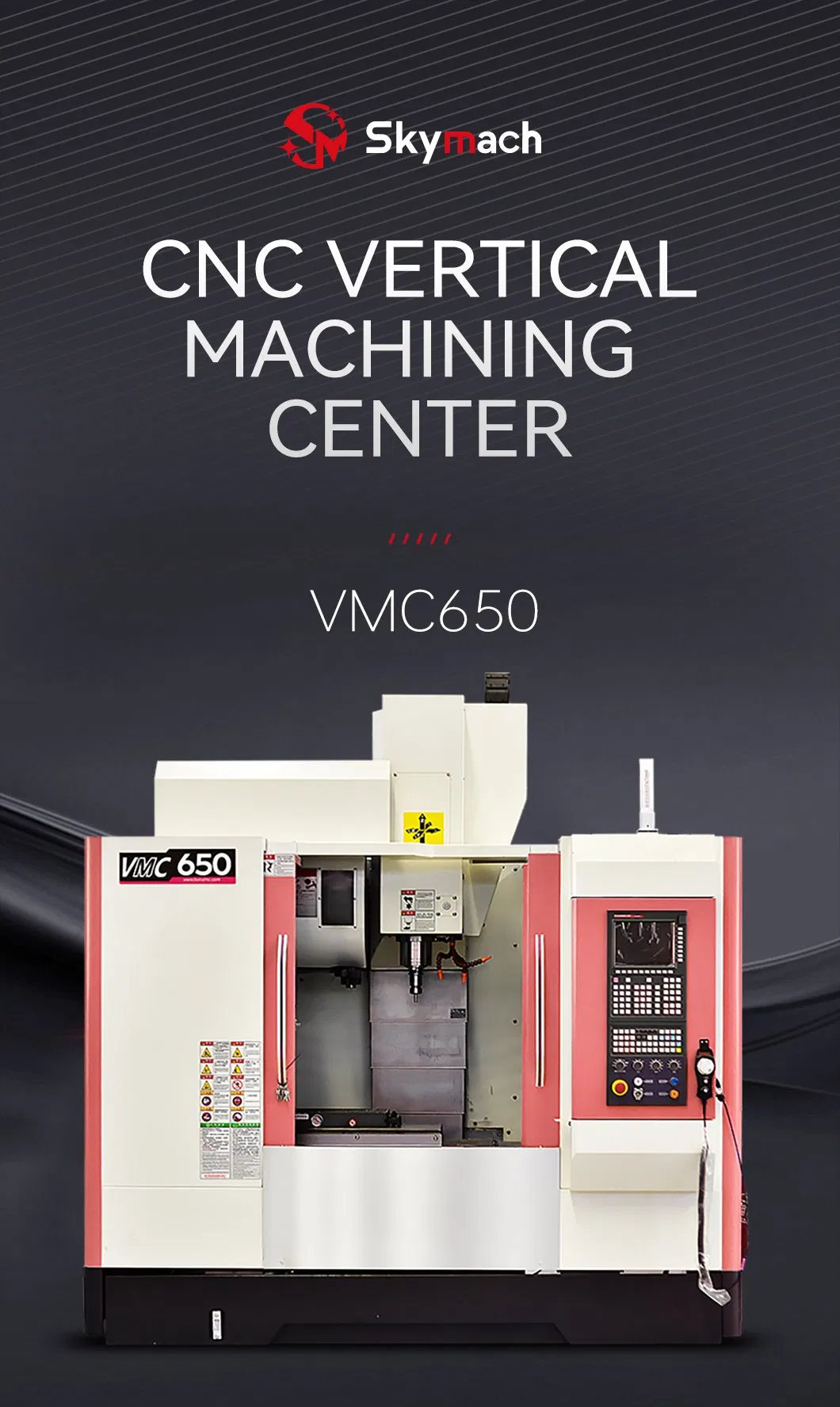

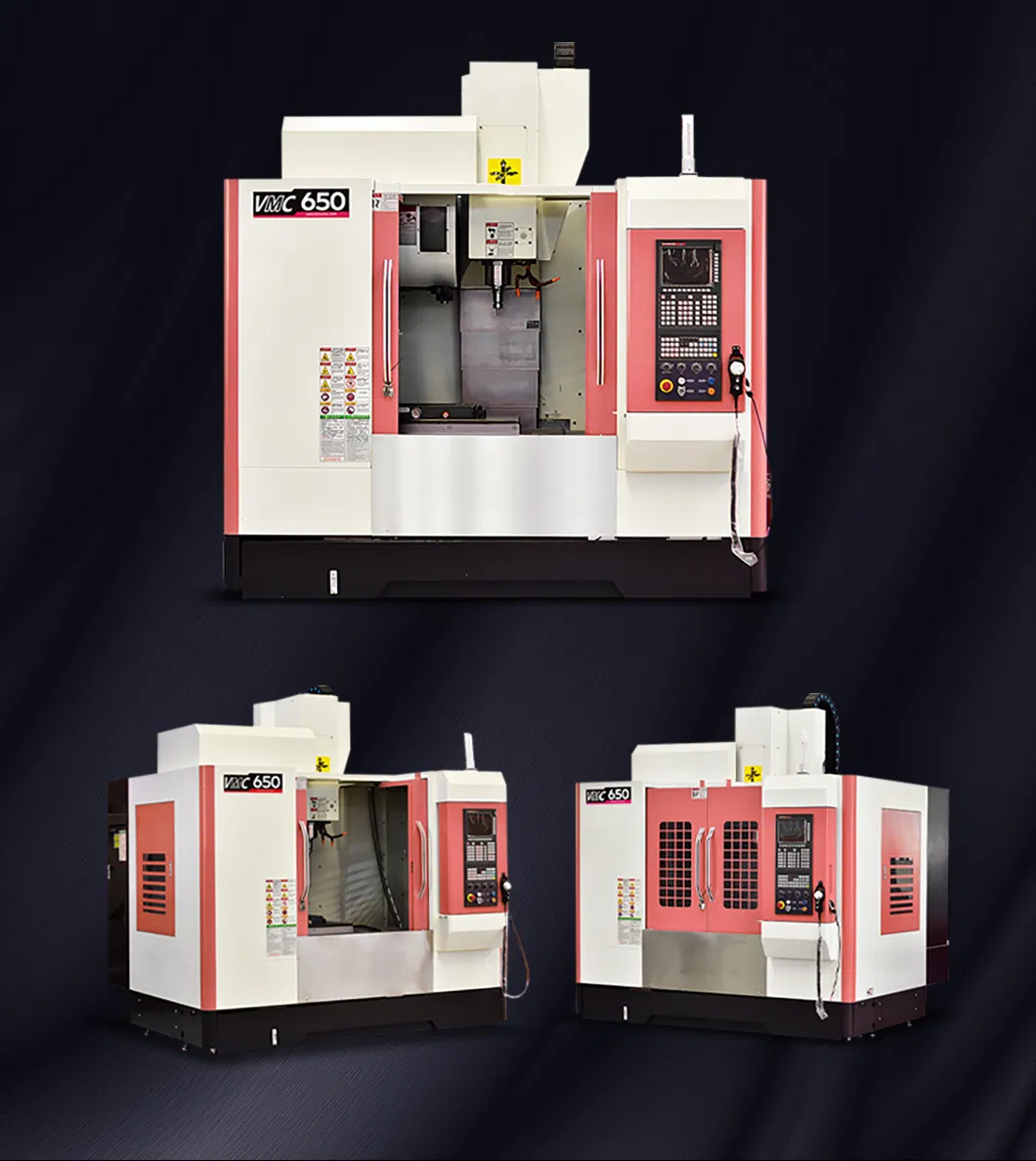

VMC650 CNC Machining Center

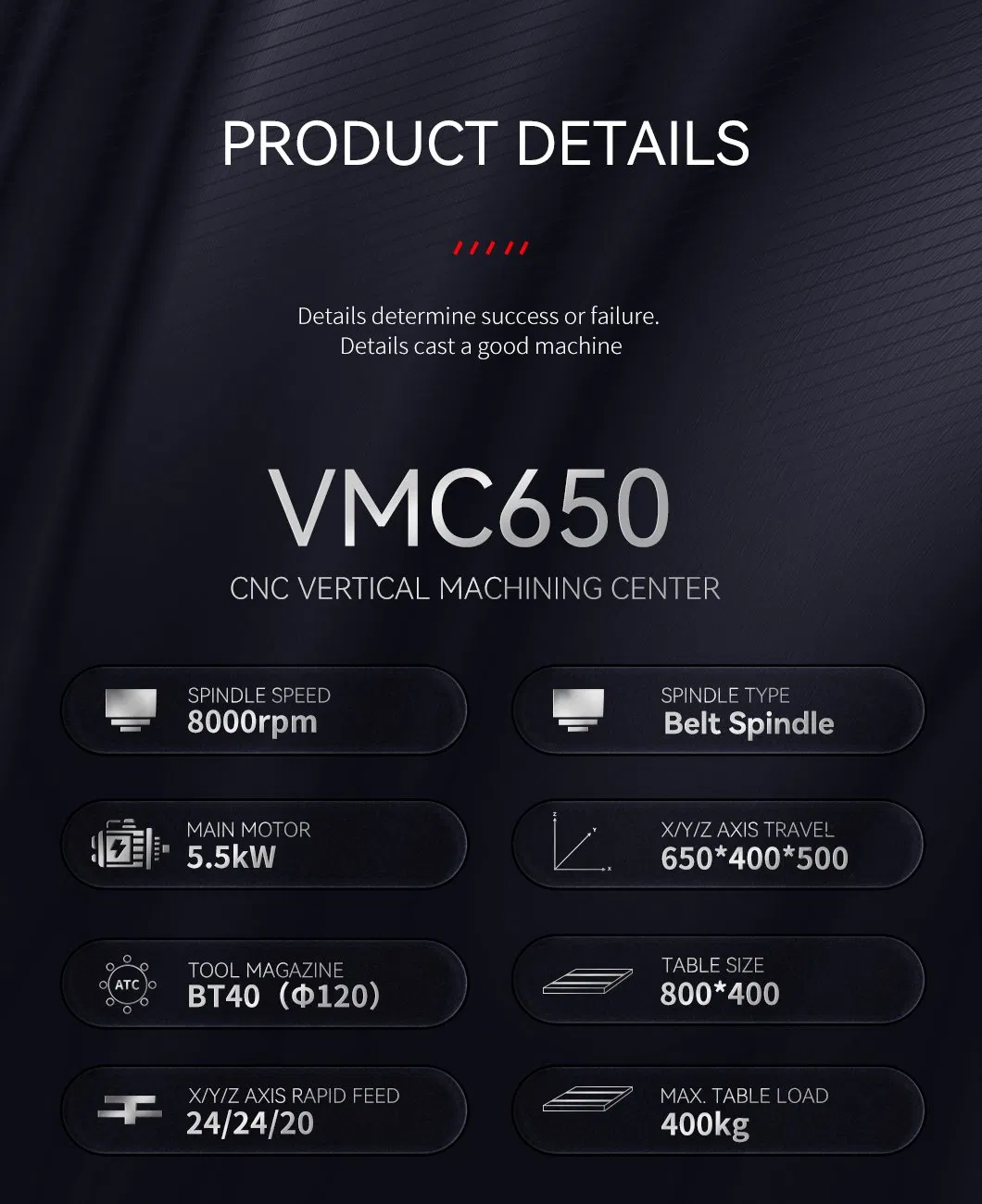

| Specifications | Units | VMC650 Data |
|---|---|---|

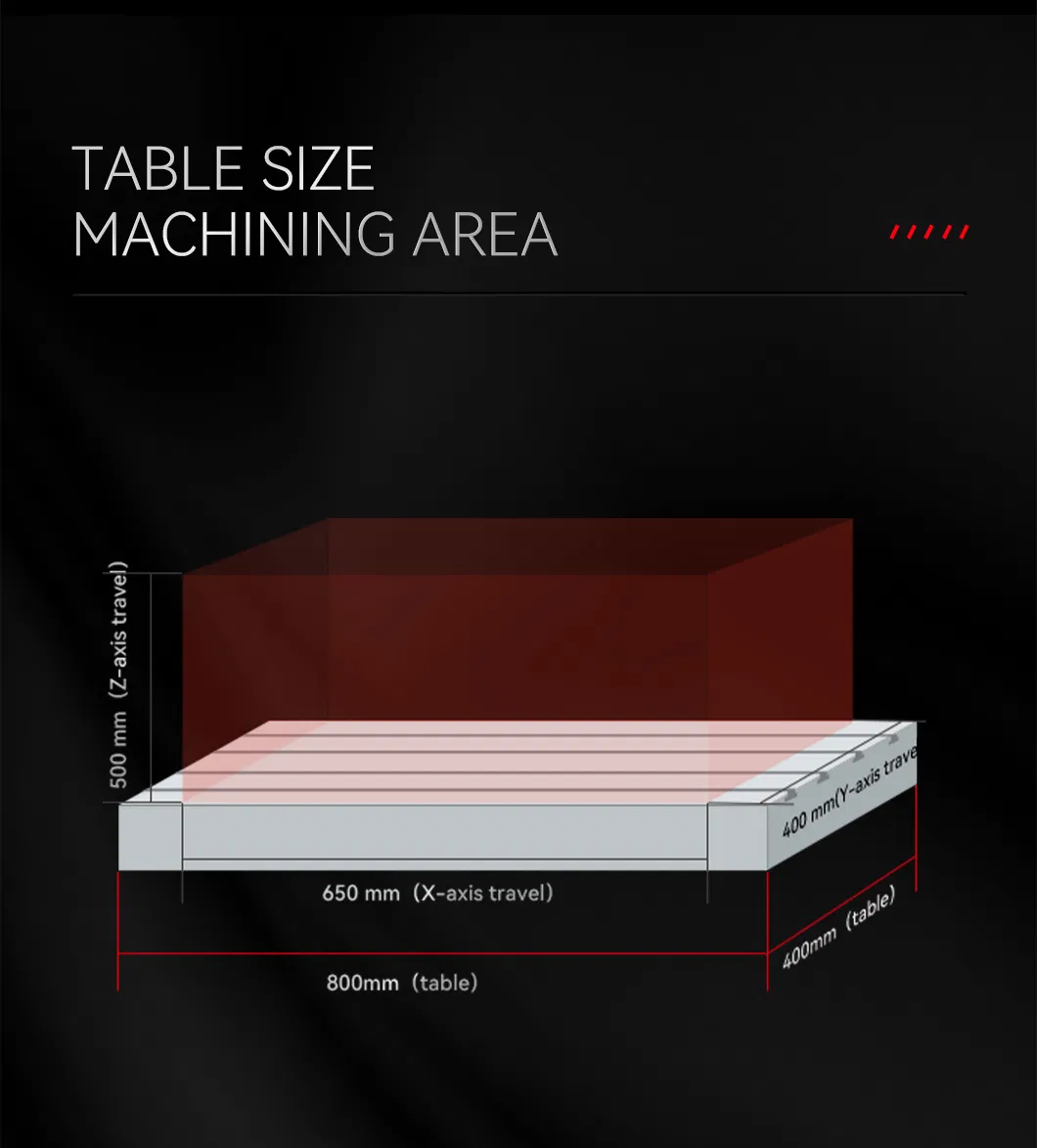

| Table size | mm | 800x400 |
| X axis travel | mm | 650 |
| Y axis travel | mm | 400 |
| Z axis travel | mm | 500 |
| Max. worktable load | kg | 400 |
| Max. spindle speed | rpm | 8000 (Optional 10000) |
| Spindle taper | - | BT40 |
| Main motor power | kw | 5.5 |
| Rapid traverse (X/Y/Z) | m/min | 24/24/20 |
| Positioning accuracy | mm | ±0.005 |
| Repeatability | mm | ±0.003 |
| Machine weight | kg | 4000 |

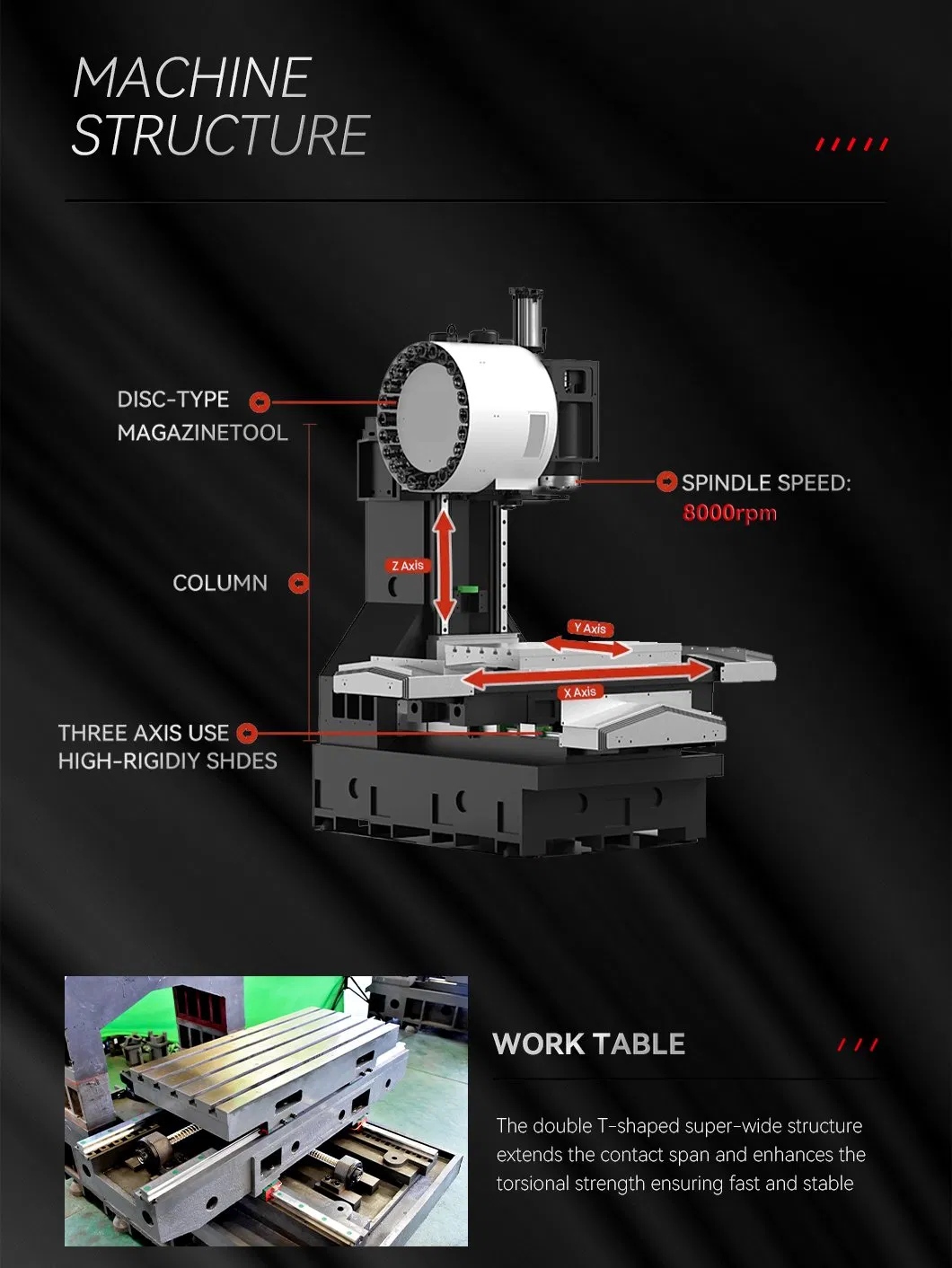

High precision standard guarantee: Positioning accuracy of ± 0.0075mm and repeatability accuracy of ± 0.005mm. The three-axis adopts linear guide rails for high-speed operation.

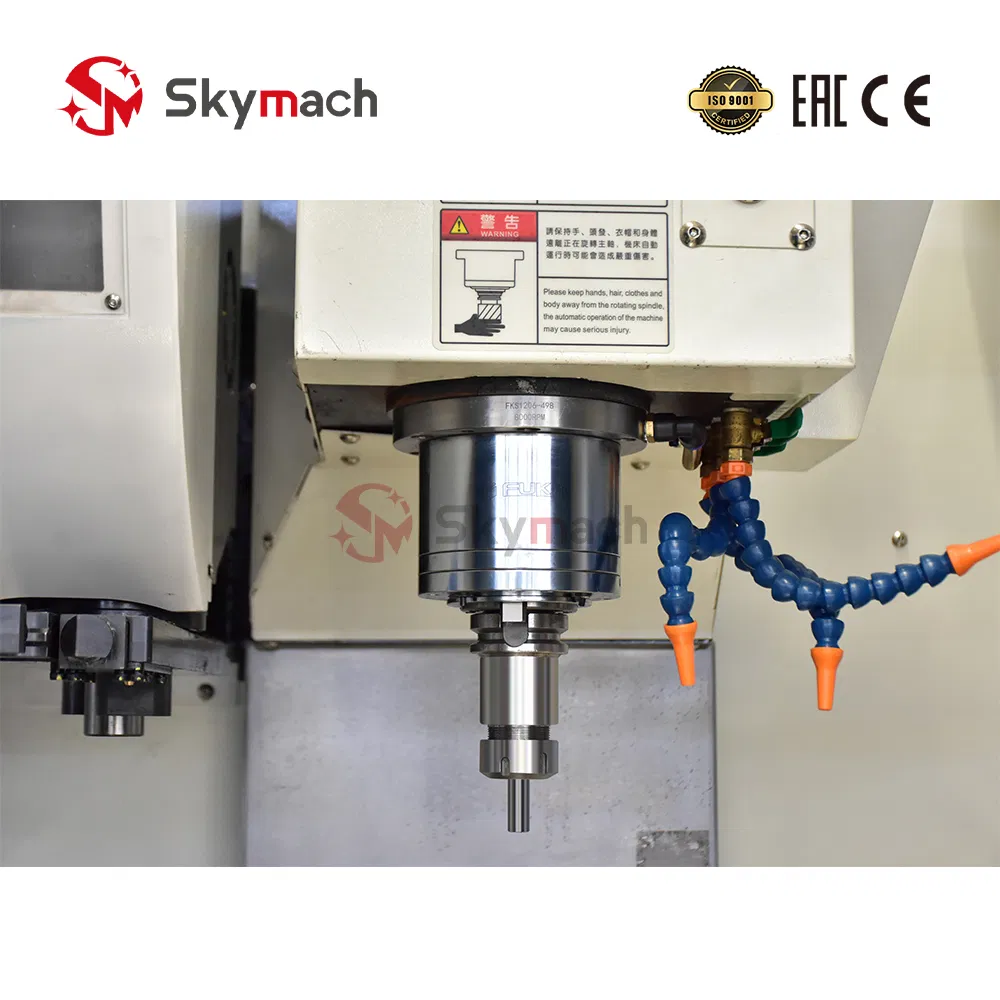

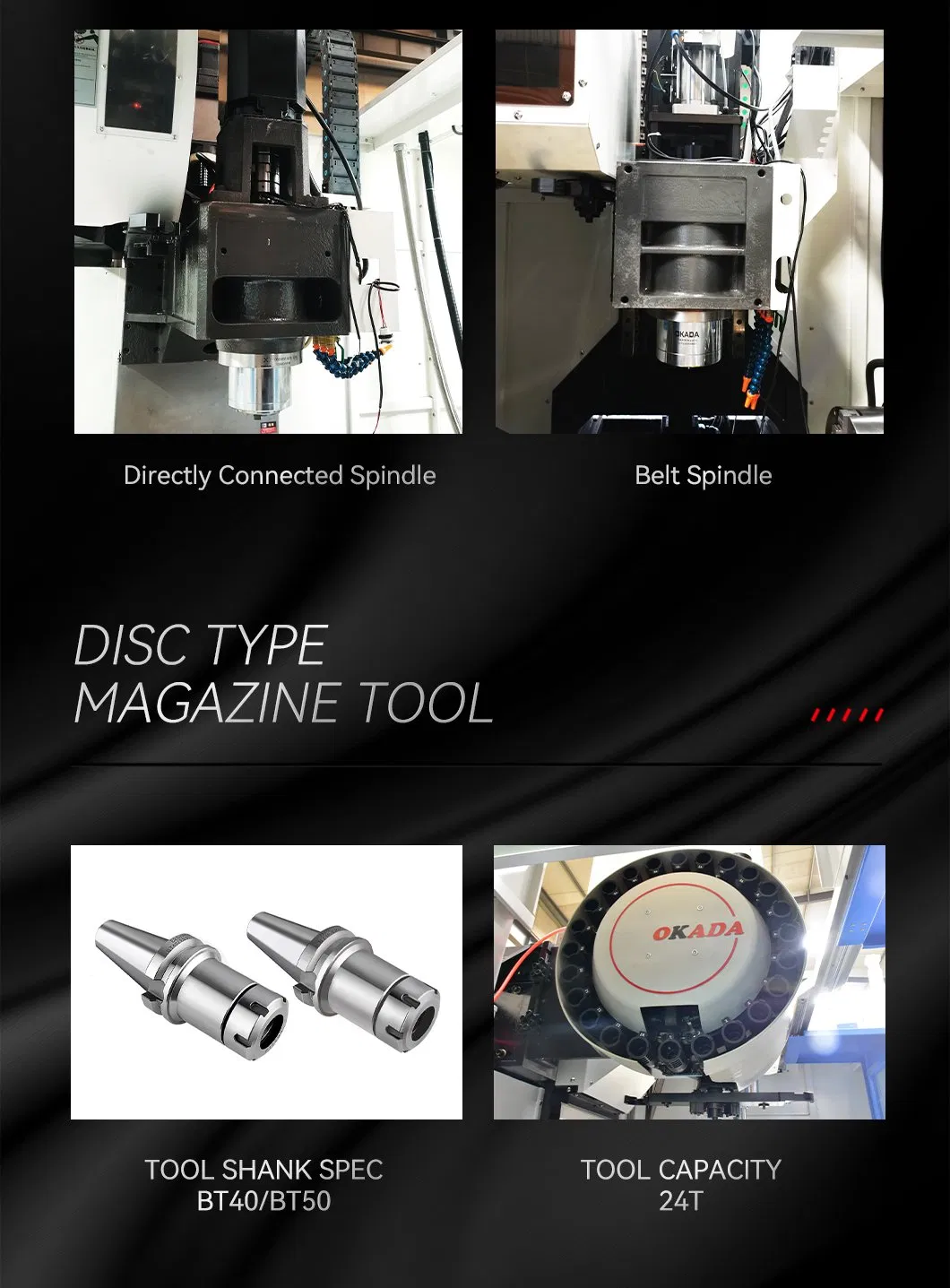

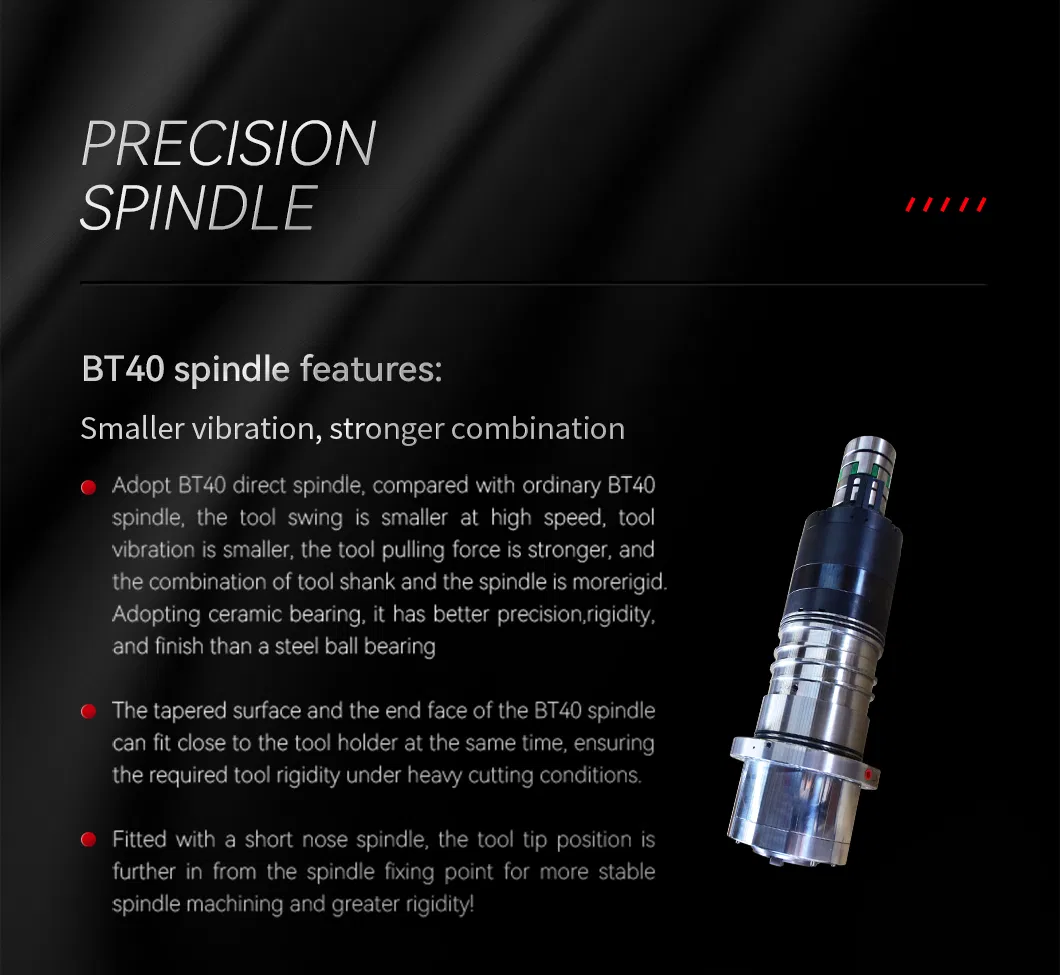

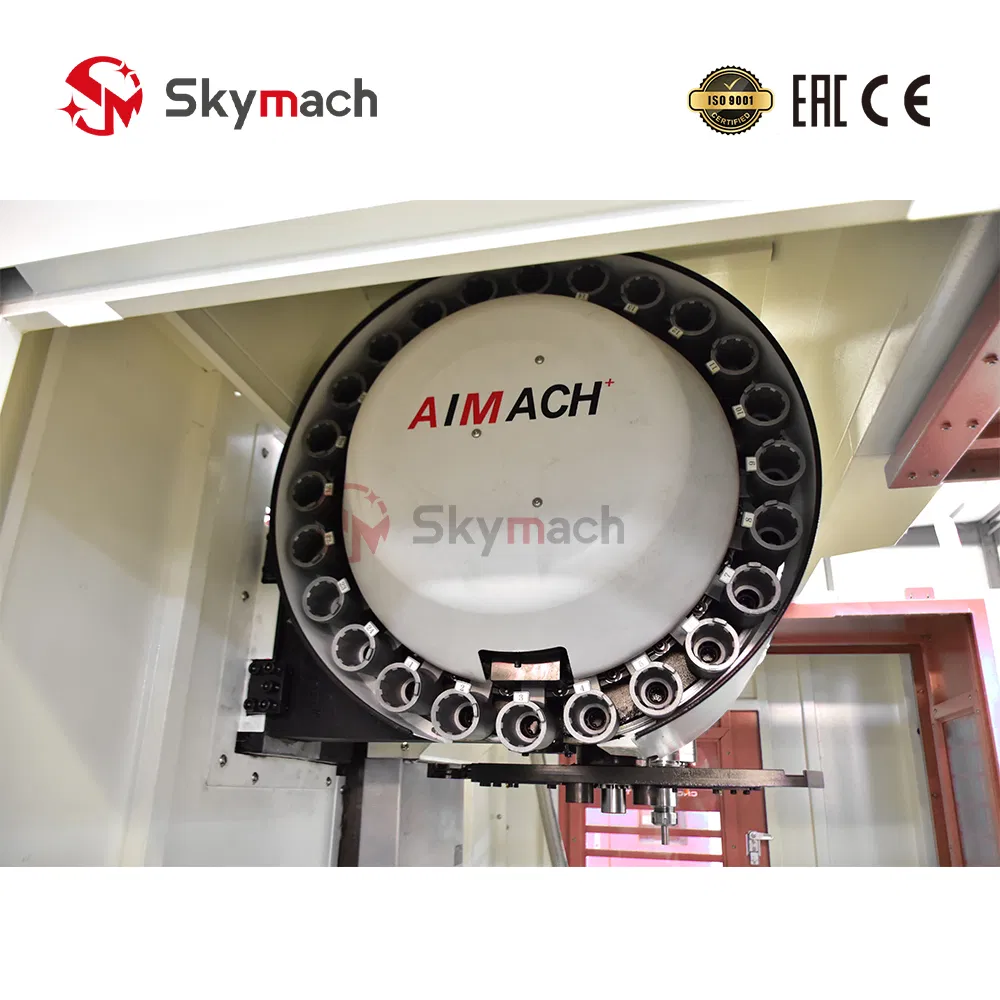

Standard BT40 high-speed spindle at 8000 rpm (optional 10000 rpm) with a 5.5kW main motor. Includes an efficient automatic tool changing system (16 or 24 tools).

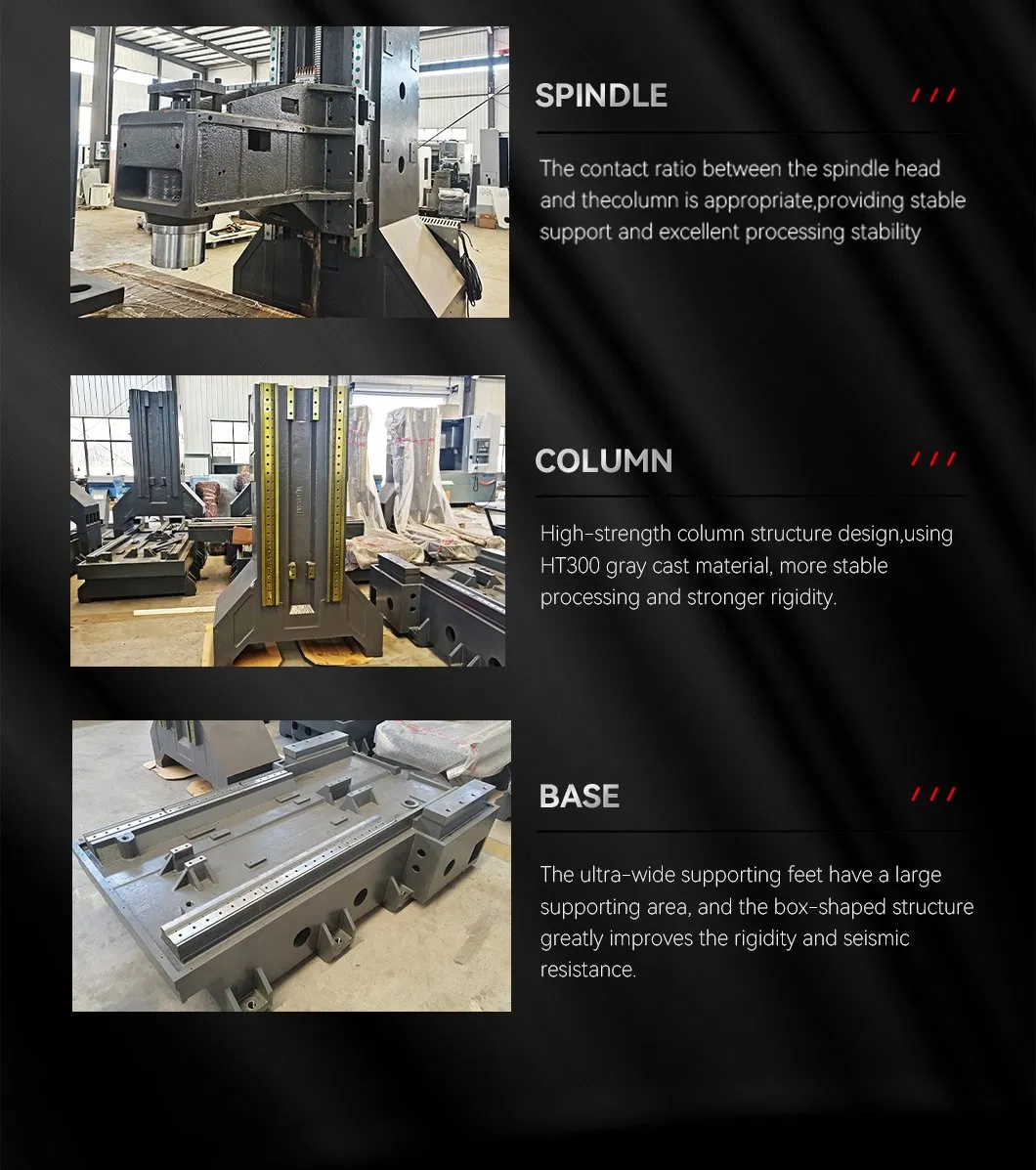

The machine weighs up to 4000kg, ensuring superior stability for large workpieces. Optimized heavy-duty bed design far exceeds industry standards.
Flexible performance options: Upgrade to higher spindle speeds, faster moving speeds (48/48/36 m/min), or 24-blade chain tool magazines as production needs grow.
