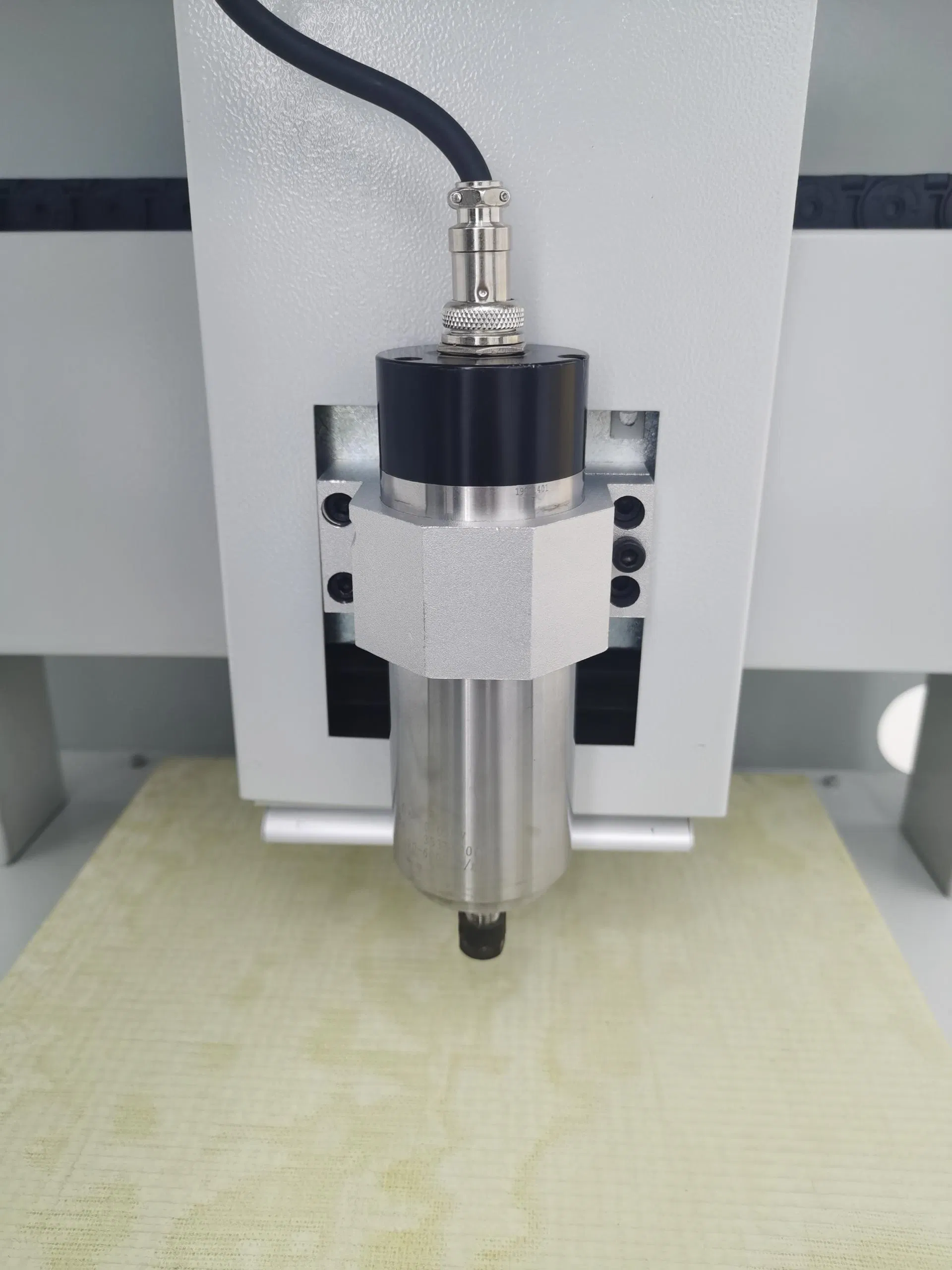

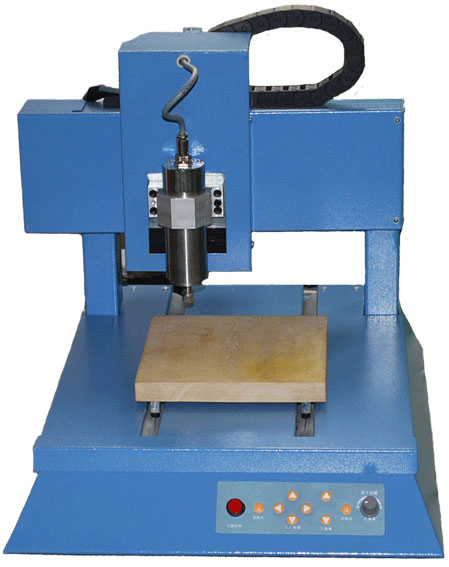

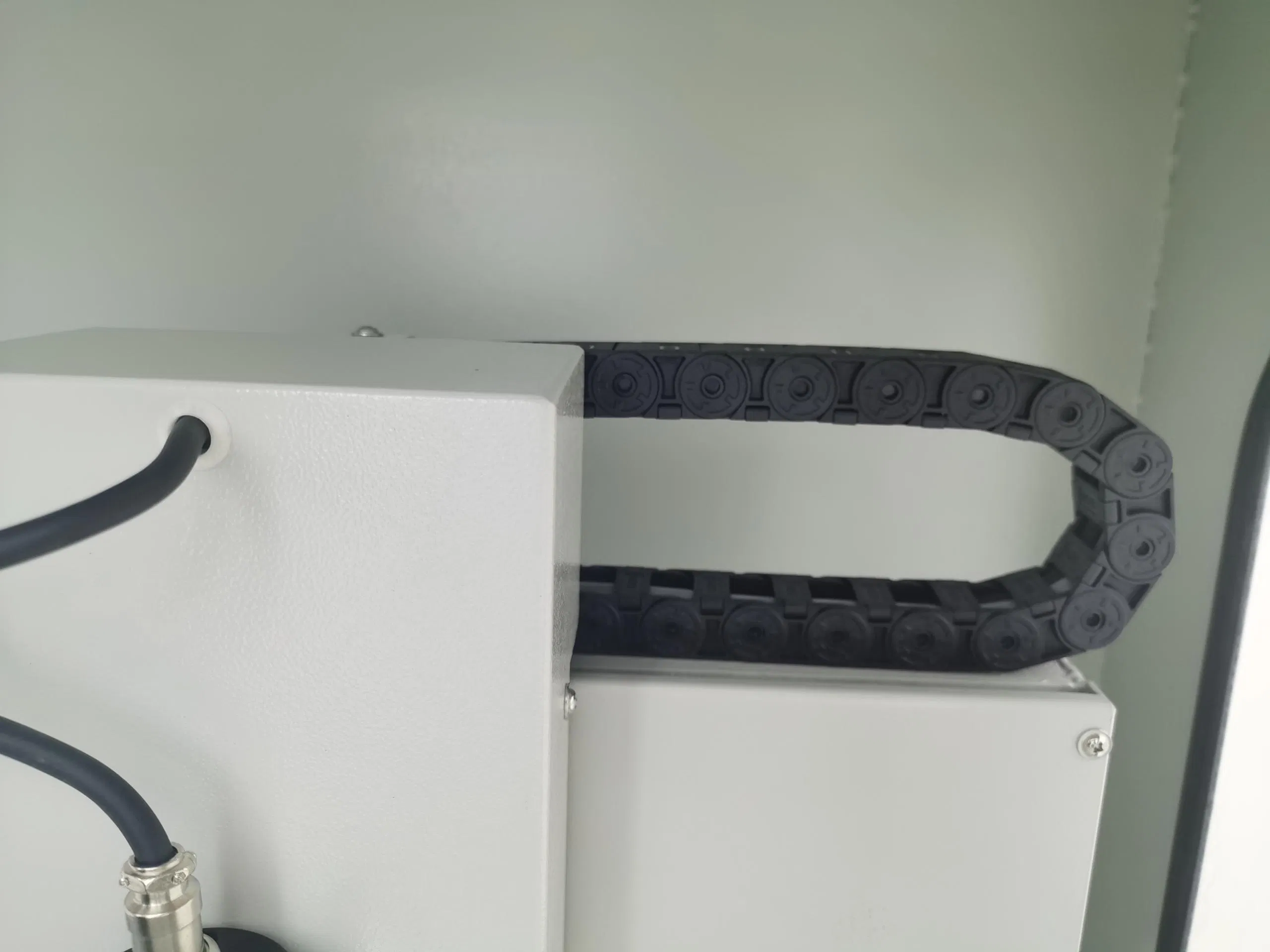

Automatic PCB CNC Routing Machine Drill and Mill Machine PCB2300
Automatic PCB CNC Routing Machine Drill and Mill Machine PCB2300
Automatic PCB CNC Routing Machine Drill and Mill Machine PCB2300
Automatic PCB CNC Routing Machine Drill and Mill Machine PCB2300
Automatic PCB CNC Routing Machine Drill and Mill Machine PCB2300
1 / 5
Automatic PCB CNC Routing Machine Drill and Mill Machine PCB2300
Automatic PCB CNC Routing Machine Drill and Mill Machine PCB2300
Automatic PCB CNC Routing Machine Drill and Mill Machine PCB2300
Automatic PCB CNC Routing Machine Drill and Mill Machine PCB2300
Automatic PCB CNC Routing Machine Drill and Mill Machine PCB2300

Automatic PCB CNC Routing Machine Drill and Mill Machine PCB2300

Function: Abrasion Resistance
Condition: New
Certification: CCC, ISO, CE
Send Inquiry

Product Description

Basic Specification

Model NO.
PCB2300
Warranty
12 Months
Automatic Grade
Semiautomatic
Installation
Desktop
Driven Type
Electric
Max PCB Size
200*200mm
Motor
X Y Z Axis Step Motor
Work Speed
20mm/S (Max)
Drilling Speed
100strokes/Min(Max)
Package
Wooden Case

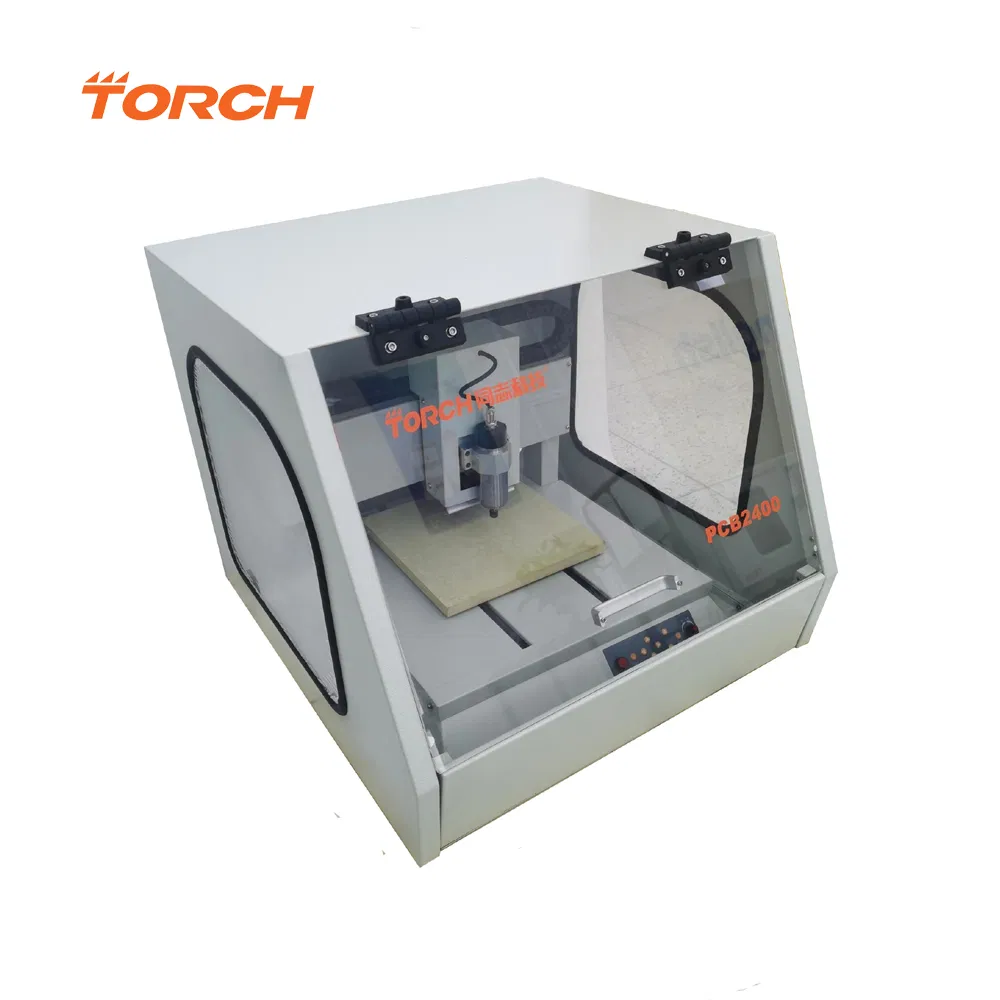

PCB CNC Routing Machine
PCB Drill and Mill Machine

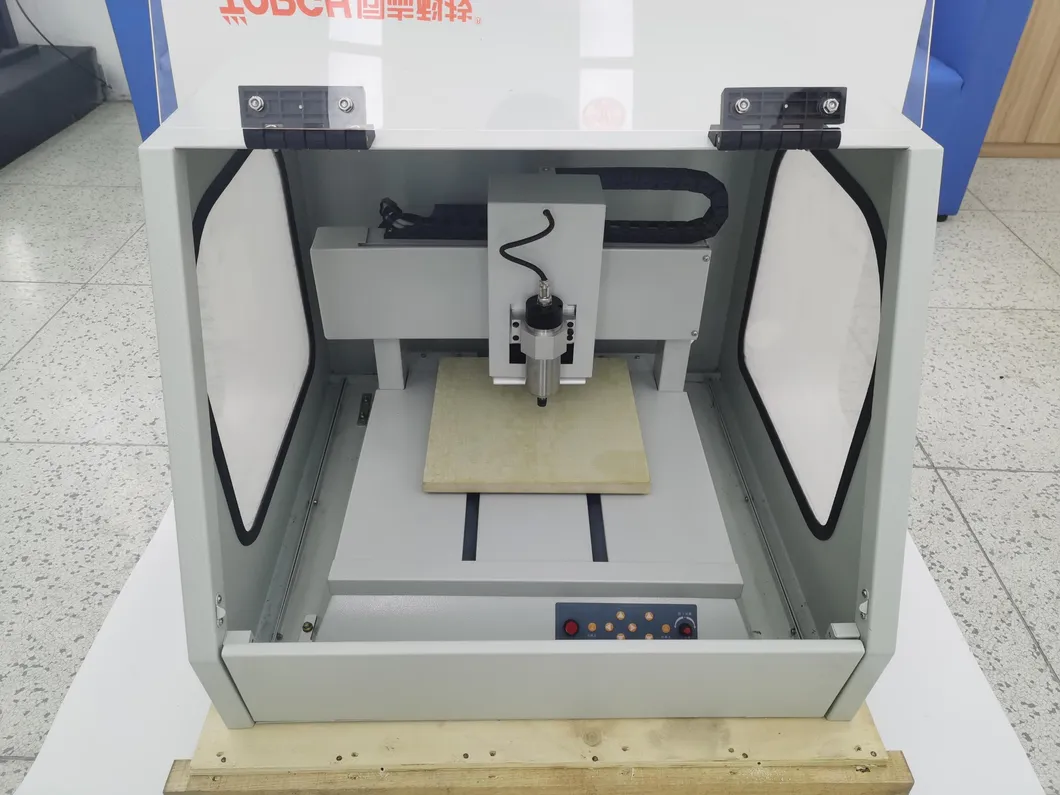

PCB Processing Detail

Product Features

◈Drilling in the copper board with precision.
◈Accurate control of milling depth, stripping unnecessary copper to form wire pads.
◈Direct origin setting and resetting capabilities.
◈Virtual processing software for previewing processing paths.
◈Real-time display of the processing status.
◈Multi-hole processing at once to reduce frequent tool changes.
◈Resume function: Stop and restart drilling at any position.
◈Combination drilling with two-knife setup to maximize time efficiency.
◈Regional drilling selection for high-precision requirements.
◈Intelligent speed optimization according to the specific tool used.

Main Advantages

✔Compatible with both single and double-sided boards; easy operation.
✔Adjustable speed for carving minimum lines and on-process stops.
✔Re-drilling and region-drilling functions to handle uncarved copper sections.
✔5 position holes ensure highly accurate positioning.
✔Real-time Z-axis adjustment to compensate for non-level PCB surfaces.
✔PCB milling function to maintain surface level after repeated processing.
✔Test carving function to ensure optimal copper drilling quality.
✔Capability to drill arc edges accurately.

Technology Parameters

ModelPCB2300
Workable Area200*200mm
Work SideSingle/Double side
MotorX, Y, Z Axis Step Motor
Main Shaft Speed60000rpm
Max Moving Speed2.4m/min
Least Line Diameter6mil (0.1524mm)
Least Line Gap8mil (0.2032mm)
Drilling Depth0.02-3mm
Drilling Diameter0.4-3.175mm
PC System RequirementsCPU: P-500MHz, Memory: 256M
Operation SystemWindows XP/Vista
Weight / Dimension65kg / 750*660*1200mm

Frequently Asked Questions

Q: What is the maximum PCB size this machine can handle?
A: The PCB2300 supports a maximum workable area of 200*200mm.
Q: Can the machine process double-sided PCB boards?
A: Yes, it is designed for both single and double-sided board processing with easy operation.
Q: What is the maximum speed of the main shaft?
A: The main shaft can reach a speed of up to 60,000 rpm.
Q: Is the software capable of path preview?
A: Yes, the machine includes virtual processing software that allows you to preview the processing path before starting.
Q: How does the machine handle uneven PCB surfaces?
A: It allows for real-time Z-axis adjustment during processing to avoid drilling issues caused by non-level boards.
Q: What are the system requirements for the operating PC?
A: It requires a CPU of 500MHz or higher, 256M memory, and operates on Windows XP or Vista.
