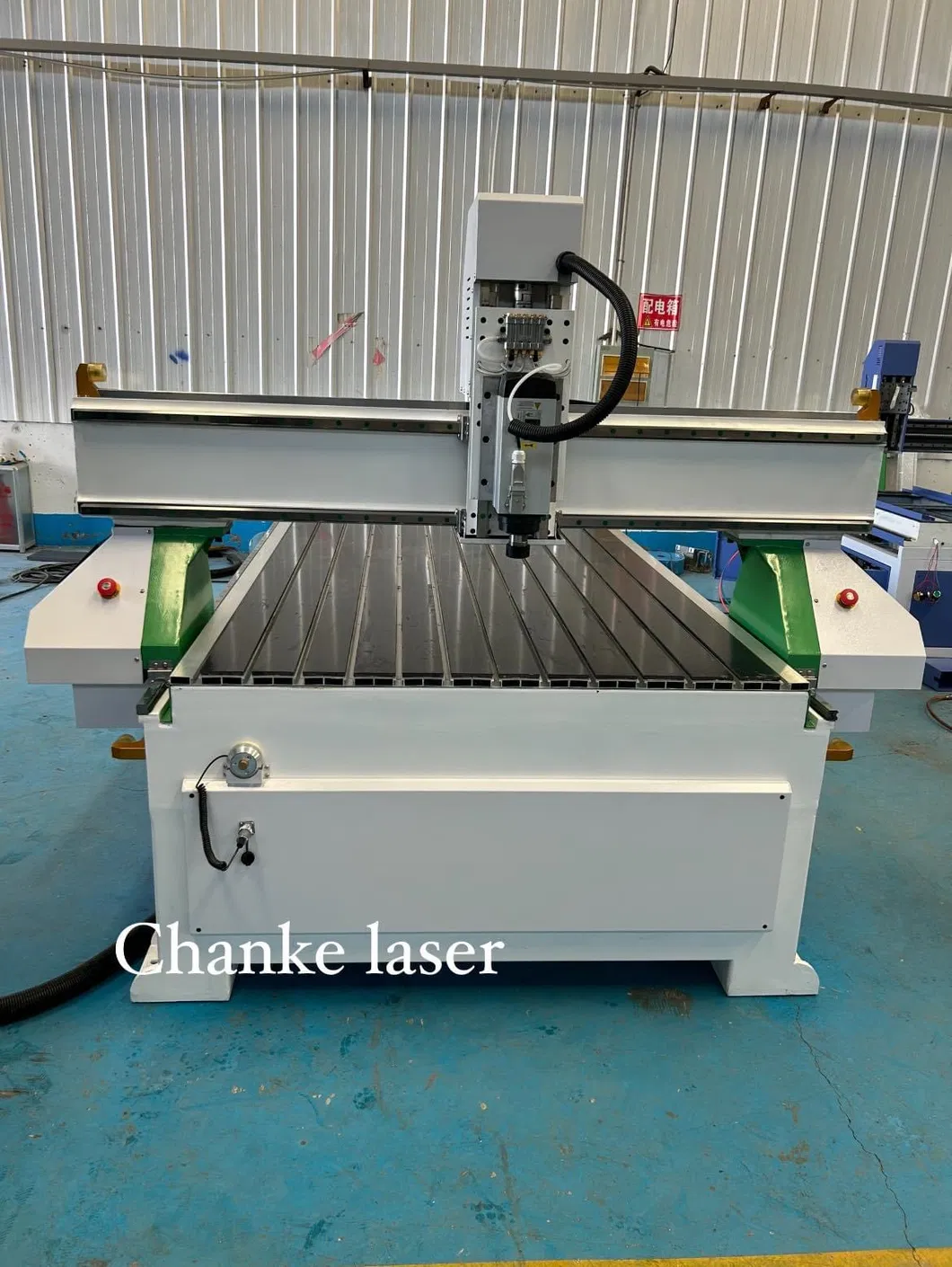

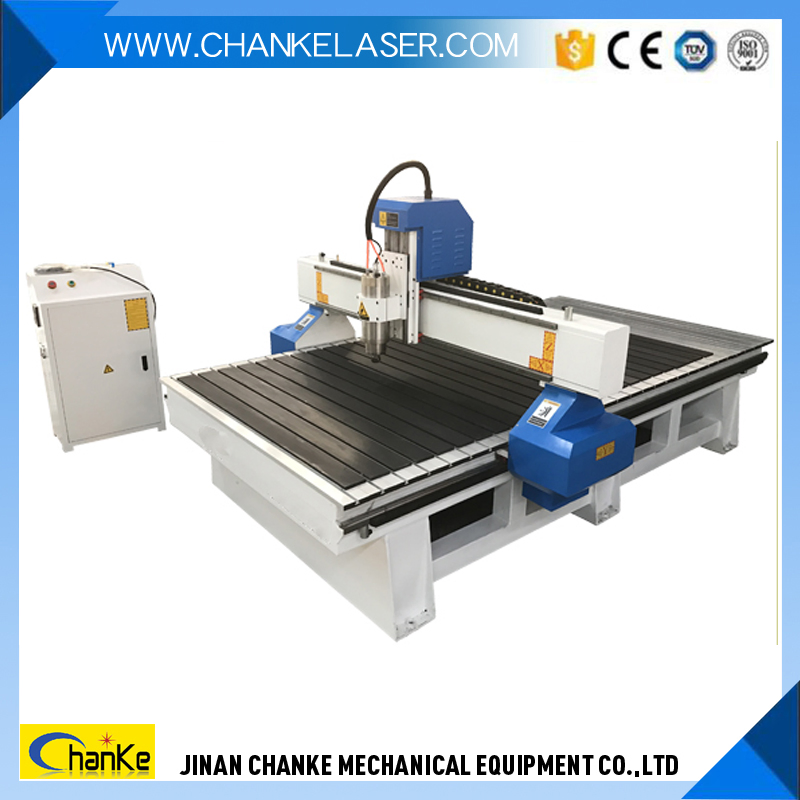

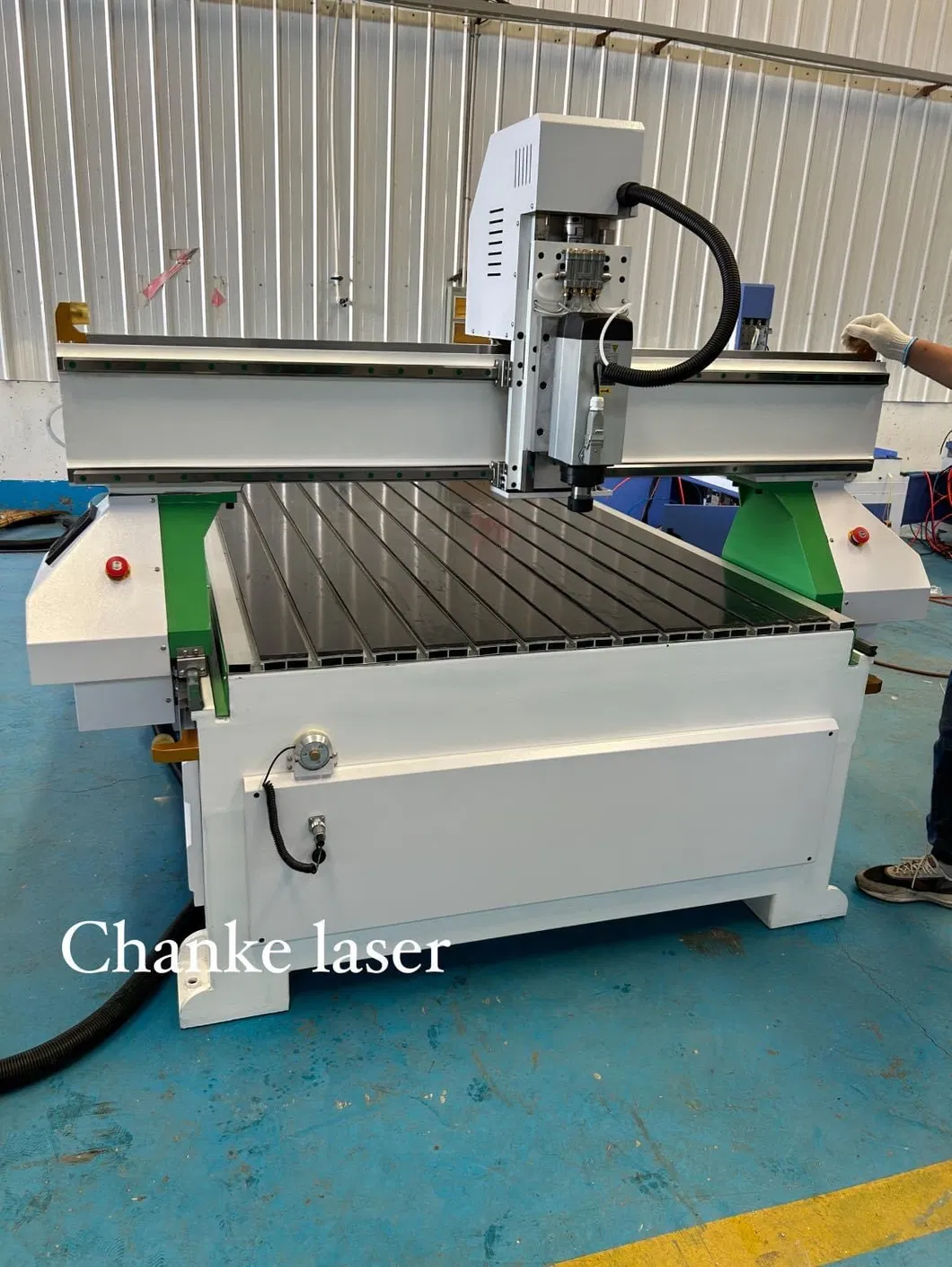

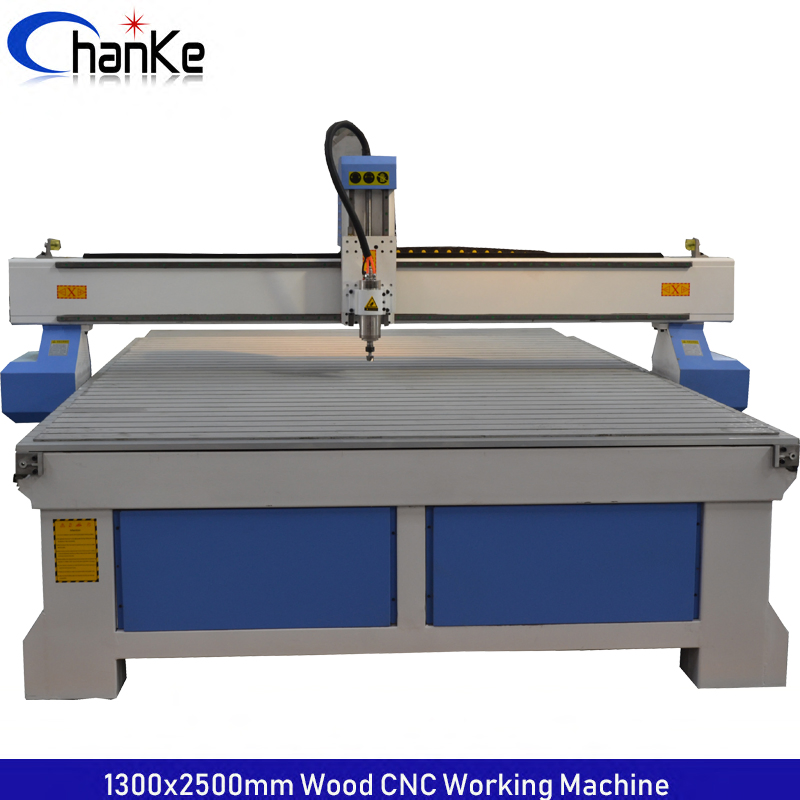

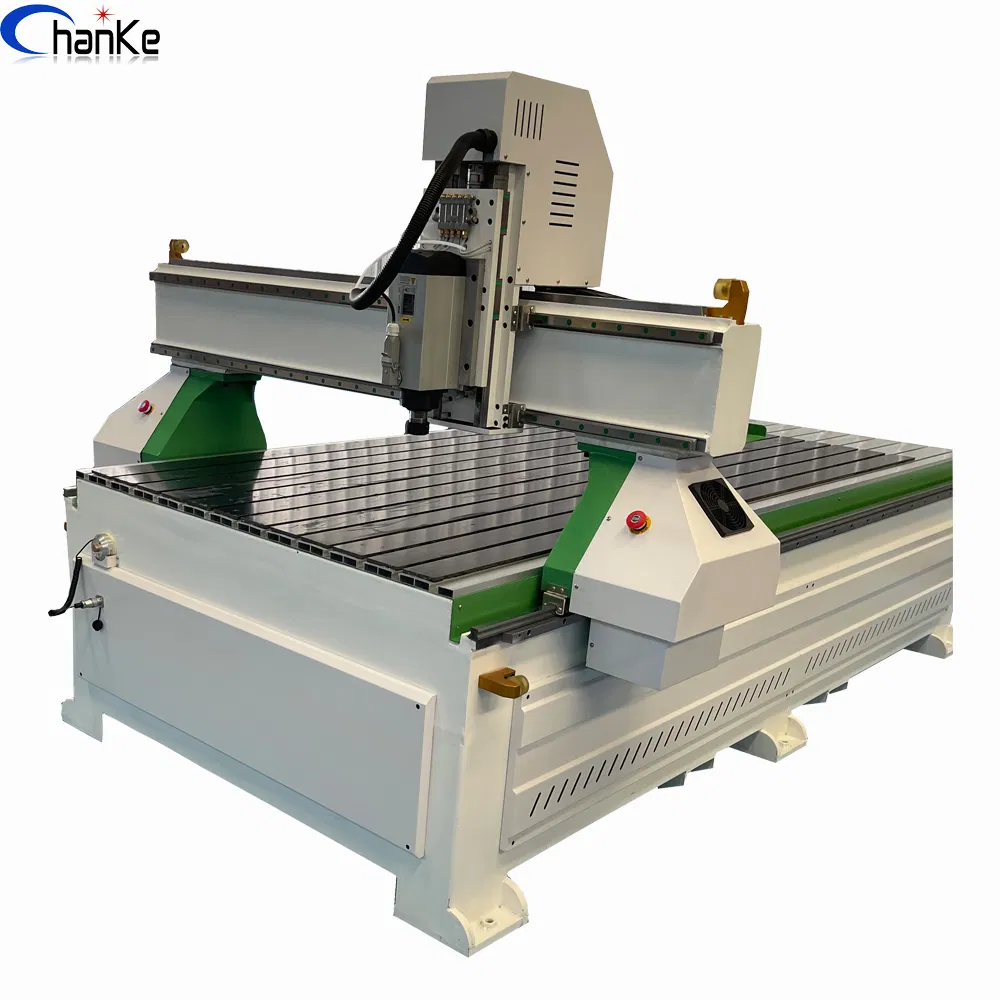

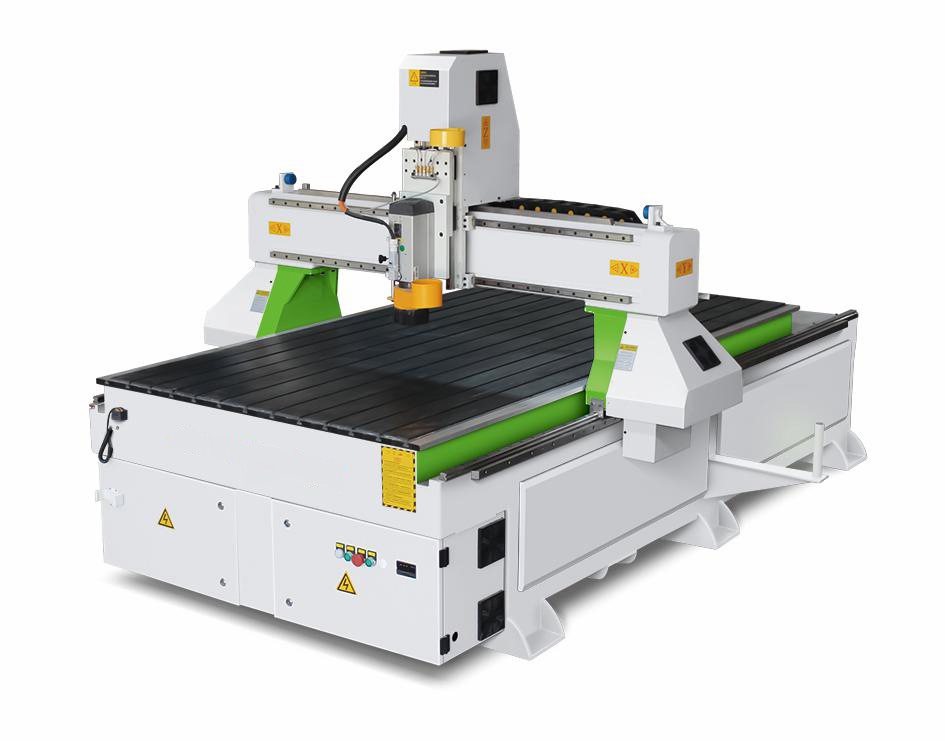

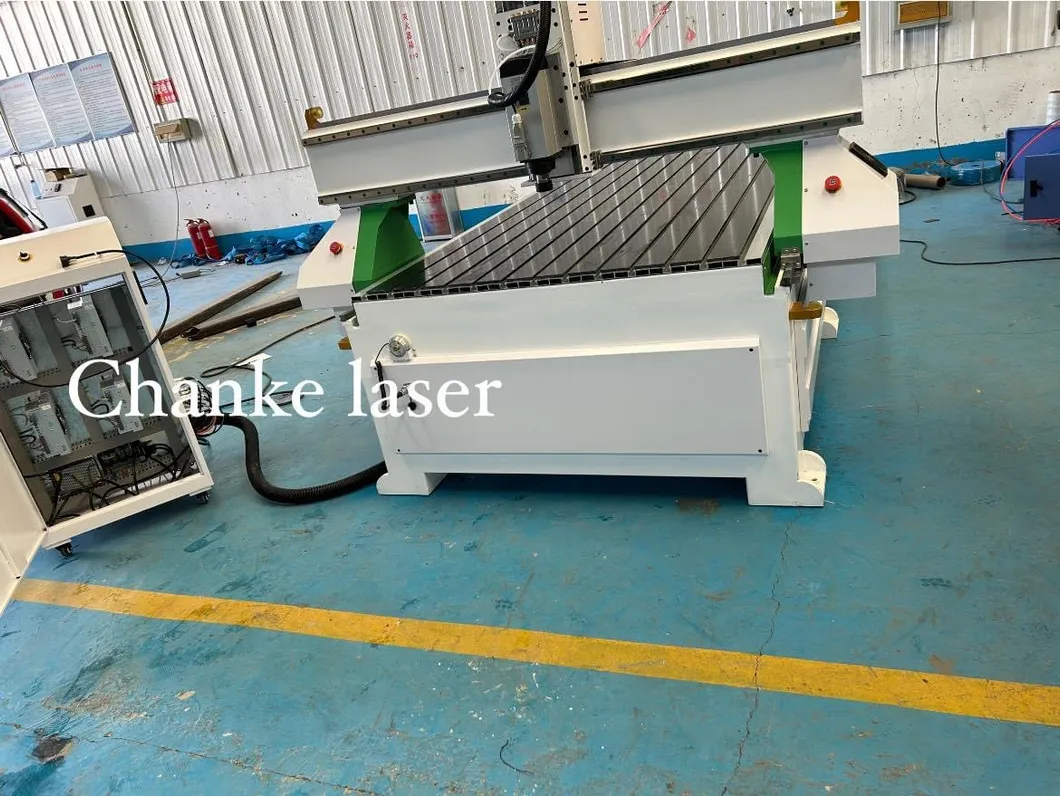

This machine working table is T-Slot (materials holders), with a working size of 1300x2500x200mm. It supports various water cooling spindle power options (3kw/1.5kw/2.2kw/5.5/4.5/7.5kw). It is designed to engrave and cut wood, MDF, acrylic, ABS, copper, aluminum, brass, and other metal and non-metal materials for 3D work.

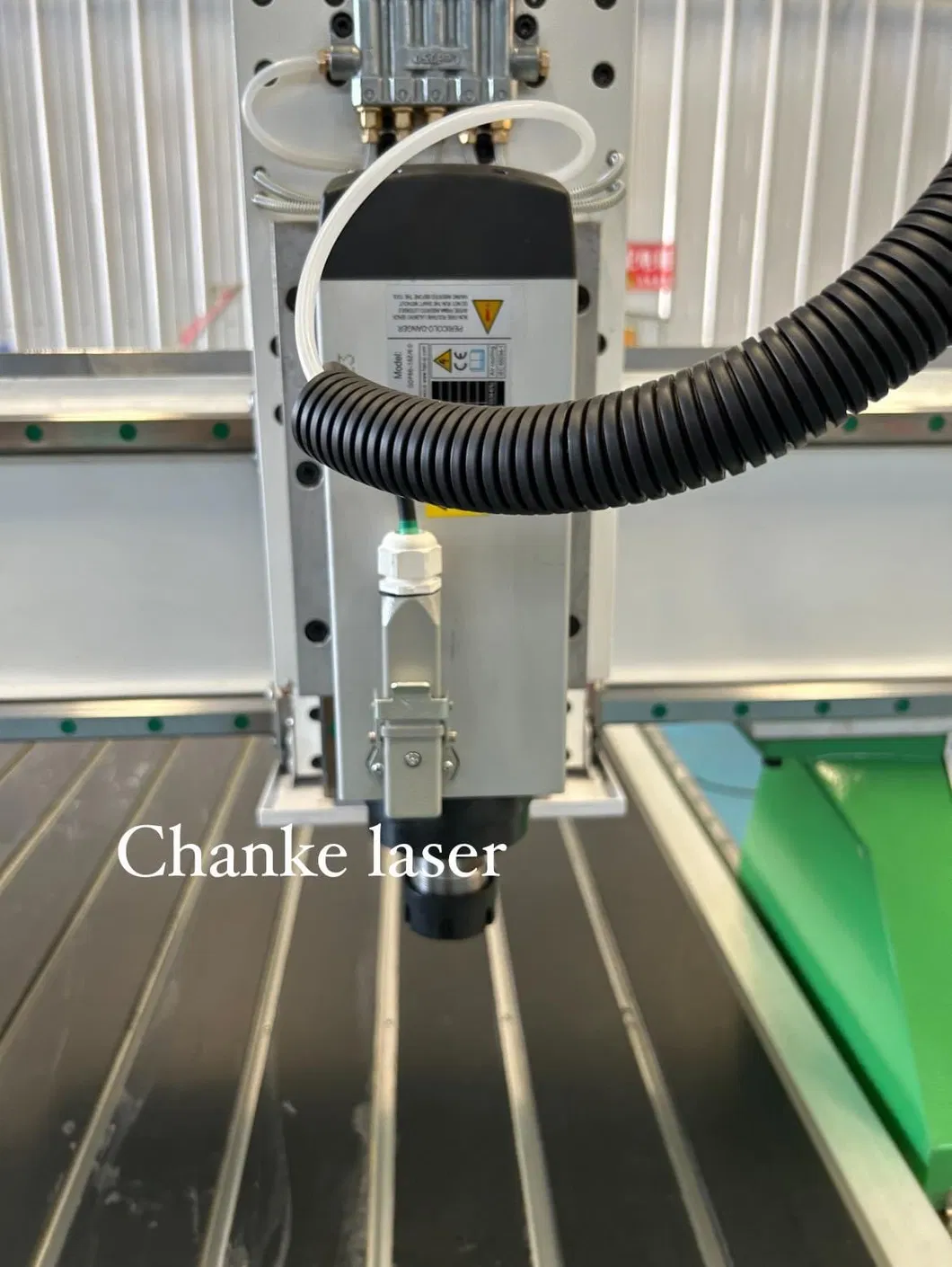

Equipped with a 3kw water cooling spindle, it can cut 20mm thickness wood or MDF in a single pass. For thicker materials, multiple passes ensure a smooth edge. Air cooling spindle options are also available based on customer preference.
| Description | Parameter |
|---|---|
| X,Y,Z Working Area | 1300mm x 2500mm x 200mm |
| Table Surface | T-slot Table (Option: Vacuum Table) |
| Frame | Welded Steel Tube Structure |
| Spindle Power | 3.0KW / 4.5KW Water Cooling |
| Spindle Speed | 0-24000 RPM |
| Motors | 450B Stepper Motors (4 sets) |
| Transmission | X,Y: Helical Rack; Z: Taiwan TBI Ball Screw |
| Guide Rails | Taiwan Hiwin Linear Square Rail |
| Operating System | NC Studio Control System |
| Positioning Accuracy | ±0.03/300mm |
| Max Working Speed | 25000mm/min |
| Packing Size | 3300mm * 2100mm * 2300mm |
