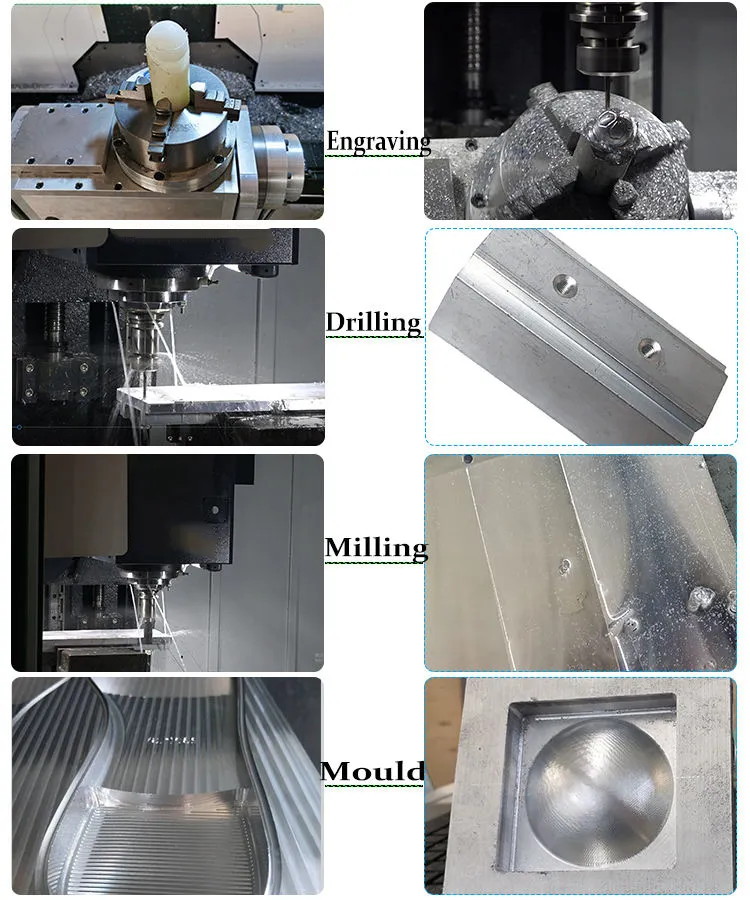

Wide Application for Metal Processing: Suitable for milling machine, fresadora, fresadoras para metal and fresadora de metal operations. Handles steel, aluminum, brass and other metals with stable performance for workshops and factories.
Multiple Types AvailableIncluding Turret Milling Machine, vertical milling machine, universal milling machine, bench milling machine and manual milling machine. Flexible solutions for different machining needs and budgets.
CNC and Manual OptionsFrom fresadora cnc para metal to desktop CNC milling machine and traditional manual models. Easy operation, precise control and improved efficiency for metal milling tasks.
High Precision & Heavy-Duty StructureRigid casting body ensures stability in metal milling machine and machines milling applications. Smooth spindle performance, accurate feeding system and long service life.
Compact to Industrial ModelsAvailable in compact bench milling machine and desktop CNC milling machine designs for small workshops, as well as large universal milling machine for industrial metal processing. Flexible configuration for global buyers.

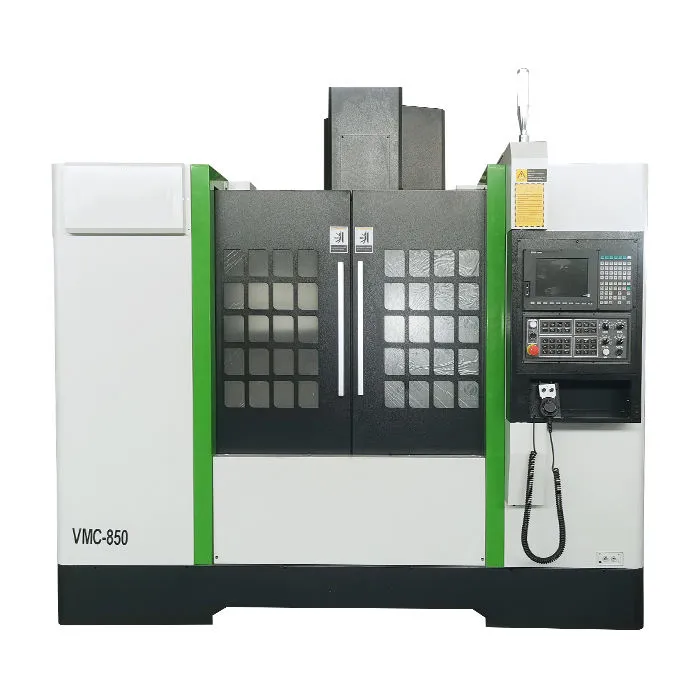

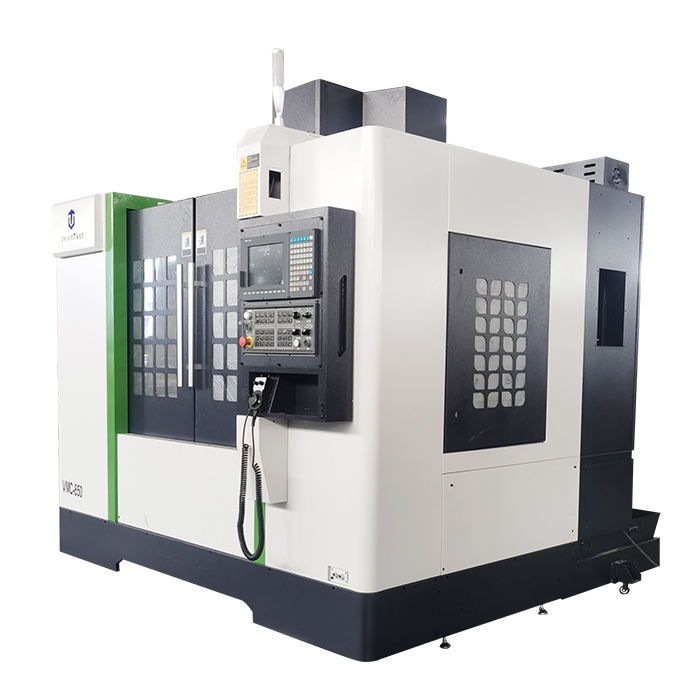

| Item Model | Unit | VMC850 |
|---|---|---|
| Size of worktable | mm | 1000*500 |
| T-shaped groove for table | mm | 5-18*102 |
| Maximum load on table | kg | 400 |
| X/Y/Z rail width | mm | 35/35/35 |
| X/Y/Z ball screw specification | mm | 3616/3616/3616 |
| X/Y/Z Axis stroke | mm | 800*500*500 |
| X/Y/Z motor torque | NM | 15/15/22(Contracting brake) |
| Spindle face to table position | mm | 110-610 |
| Distance from Spindle Center to column | mm | 524 |
| Cutting feed rate | mm/min | 1-8000 |
| X/Y/Z axis fast feed | m/min | 48/48/36 |
| Spindle end taper/diameter | mm | BT40-150 |
| Spindle motor power | kw | 7.5 |
| Maximum spindle speed | rpm | 8000 |

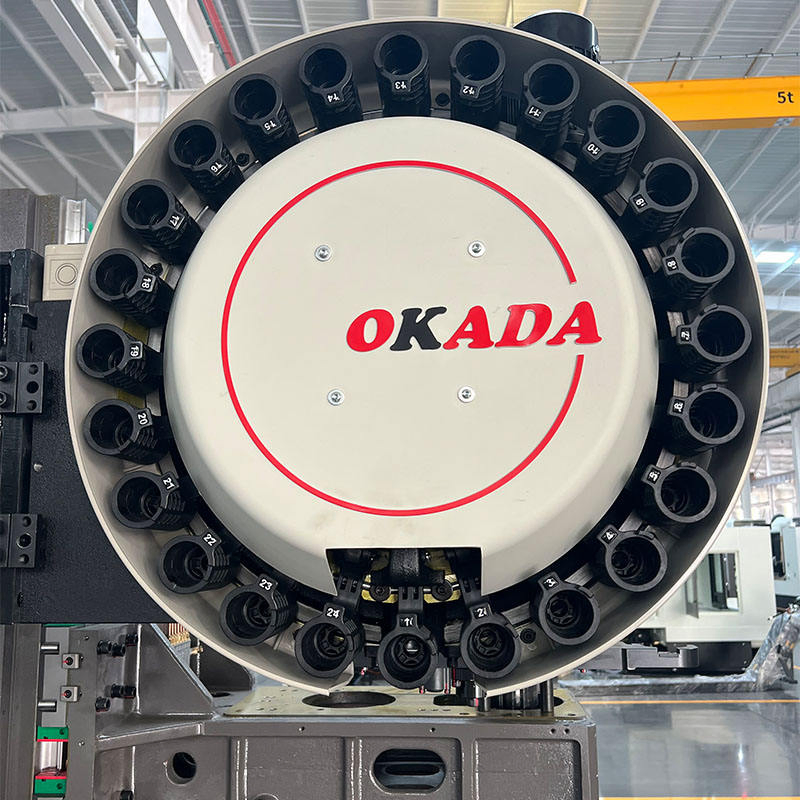

| Form of Tool Bank | - | Disc |
| The capacity of knife storage | tools | 24 |
| Maximum tool diameter/weight | mm/kg | 78/120/8 |
| Tool change time | sec | 2.5 |
| Positioning accuracy | mm | 0.008 |
| Repeat positioning accuracy | mm | 0.005 |
| Smallest unit of positioning | mm | 0.005 |
| Weight of machine tool | kg | 5100 |
| External dimensions | mm | 2800*2350*2650 |
