| Rhombic Inserts (80° / 55°) | Dimensions (mm) | Rhombic Inserts (Square) | Dimensions (mm) | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Shape Class | Type | d | l | s | d1 | Shape Class | Type | d | l | s | d1 | ||||||

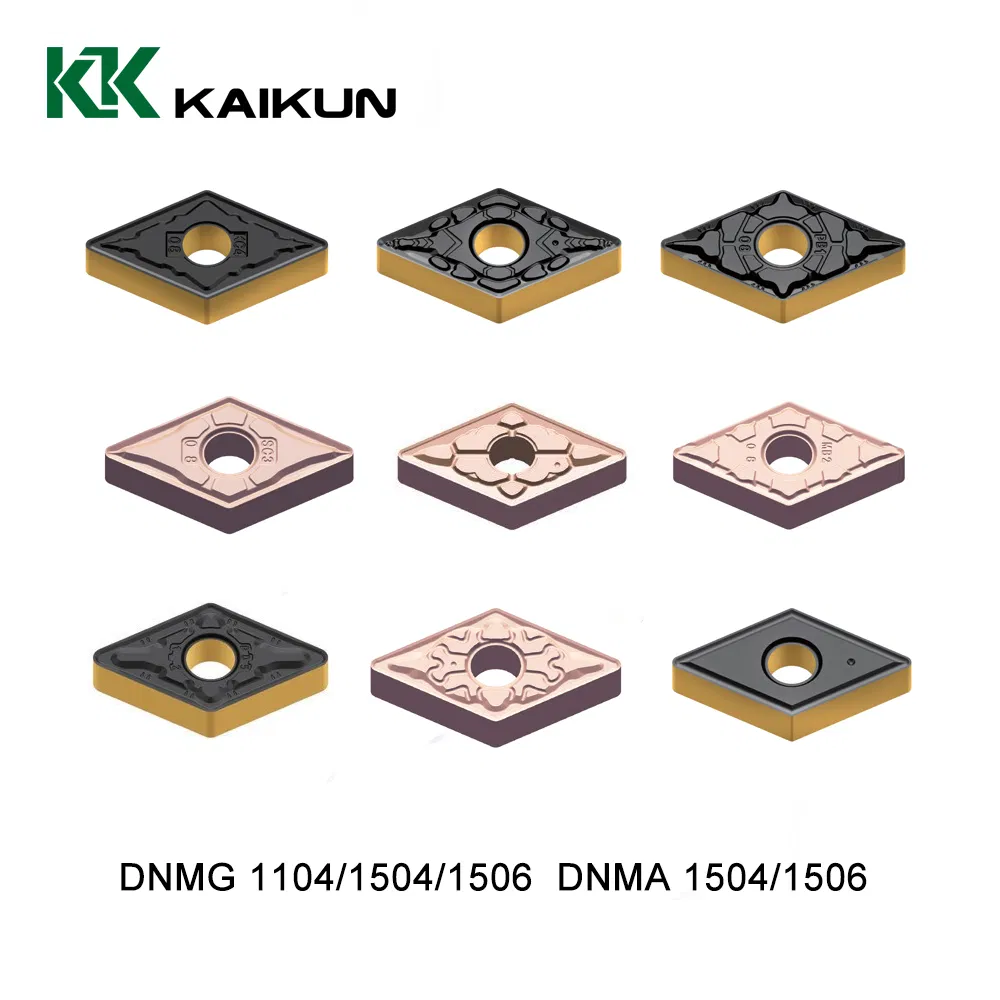

| Negative Rhombic (C) | CN_1204 | 12.7 | 12.9 | 4.76 | 5.16 | Negative Rhombic (D) | DN_1104 | 9.52 | 11.62 | 4.76 | 3.81 | ||||||
| Negative Rhombic (C) | CN_1606 | 15.9 | 16.1 | 6.35 | 6.35 | Negative Rhombic (D) | DN_1504 | 12.7 | 15.5 | 4.76 | 5.16 | ||||||
| Positive Square (S) | SC_09T3 | 9.5 | 9.5 | 3.97 | 4.40 | Negative Square (S) | SN_1204 | 12.70 | 12.70 | 4.76 | 5.16 | ||||||
| Positive Square (S) | SC_1204 | 12.7 | 12.7 | 4.76 | 5.50 | Negative Square (S) | SN_1506 | 15.87 | 15.87 | 6.35 | 6.35 | ||||||
