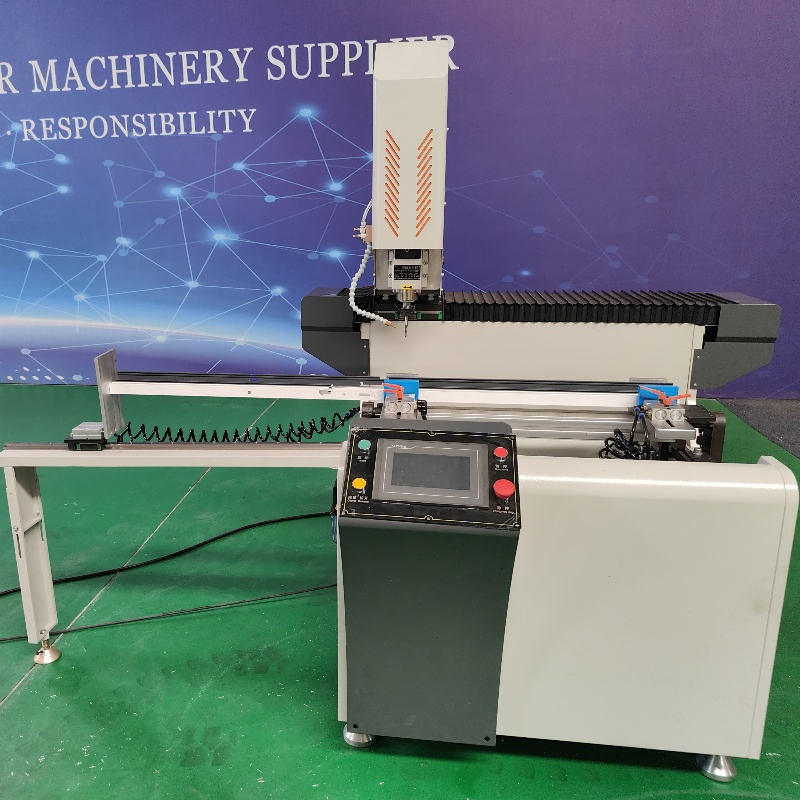

Shiner Machinery Factory CNC Drilling Milling Machine Aluminum Window Routing Copy Router Lock Hole Industrial Curtain
Shiner Machinery Factory CNC Drilling Milling Machine Aluminum Window Routing Copy Router Lock Hole Industrial Curtain
Shiner Machinery Factory CNC Drilling Milling Machine Aluminum Window Routing Copy Router Lock Hole Industrial Curtain
Shiner Machinery Factory CNC Drilling Milling Machine Aluminum Window Routing Copy Router Lock Hole Industrial Curtain
Shiner Machinery Factory CNC Drilling Milling Machine Aluminum Window Routing Copy Router Lock Hole Industrial Curtain
1 / 5
Shiner Machinery Factory CNC Drilling Milling Machine Aluminum Window Routing Copy Router Lock Hole Industrial Curtain
Shiner Machinery Factory CNC Drilling Milling Machine Aluminum Window Routing Copy Router Lock Hole Industrial Curtain
Shiner Machinery Factory CNC Drilling Milling Machine Aluminum Window Routing Copy Router Lock Hole Industrial Curtain
Shiner Machinery Factory CNC Drilling Milling Machine Aluminum Window Routing Copy Router Lock Hole Industrial Curtain
Shiner Machinery Factory CNC Drilling Milling Machine Aluminum Window Routing Copy Router Lock Hole Industrial Curtain

Shiner Machinery Factory CNC Drilling Milling Machine Aluminum Window Routing Copy Router Lock Hole Industrial Curtain

Customization: Available
After-sales Service: Provided
Warranty: 1
Send Inquiry

Product Description

📊

Basic Information

Model NO.SKX-CNC-680ConditionNew
CertificationISO, CEAutomatic GradeAutomatic
CNC or NotCNCVoltage380V
Input Power3.5kwSpindle Power2.2kw
Main Axis Speed8000-18000r/MinAir Pressure0.4-0.6MPa
X Axis Stroke680mmY Axis Stroke300mm
Z Axis Stroke240mmProcessing Size100*120mm
Overall Dimension1500*1450*1600mmTrademarkNisen
Production Capacity1000 Pieces/YearOriginChina
⚙️

Product Description

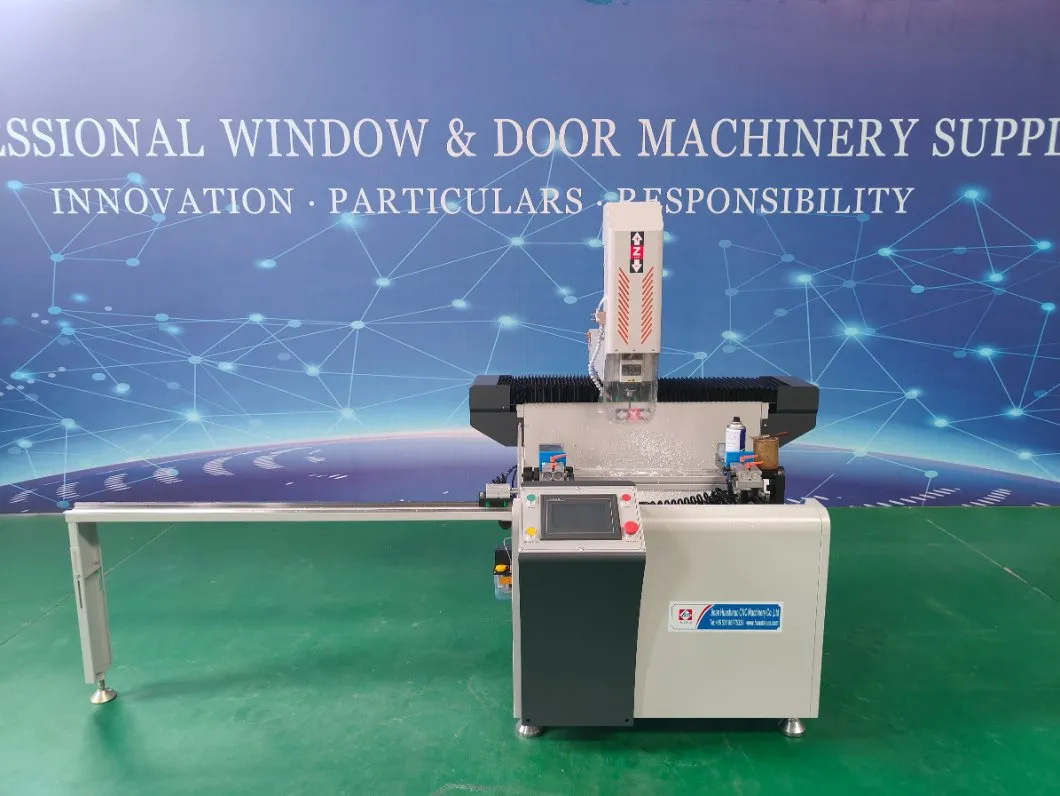

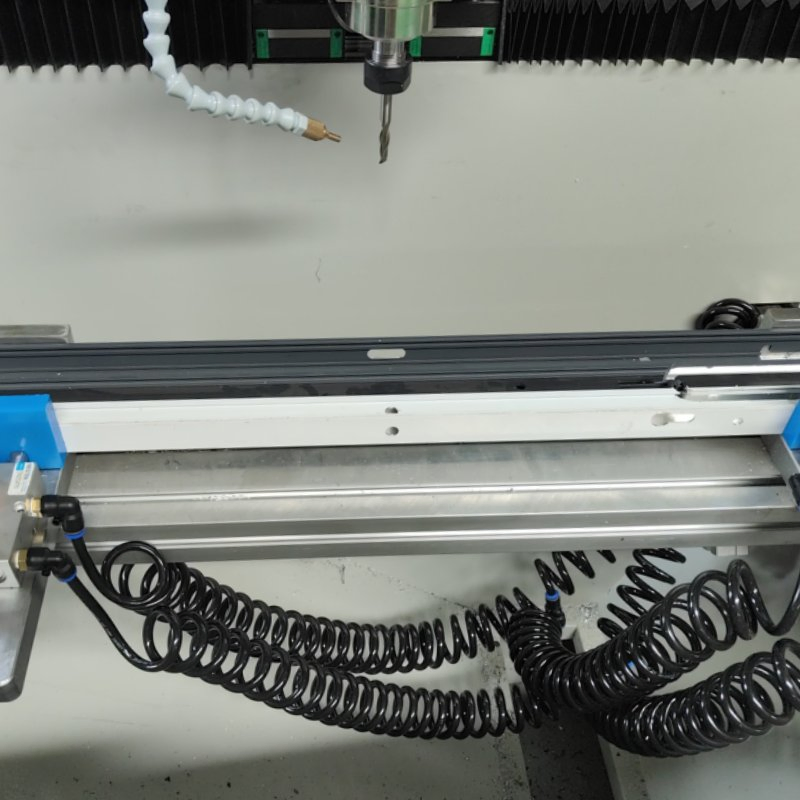

CNC Drilling Milling Machine

CNC Drilling Milling Machine - SKX-CNC-680

⚡ Specialized for drilling holes, milling grooves, circular holes, irregular shapes, keyholes, and plane engraving of aluminum profiles.
🖥️ System adopts a professional CNC controller for high precision and stability.
🛡️ Electric spindle integration ensures high safety, reliability, and precision.
📐 X-axis uses high-precision helical gear and rack; Y and Z axes use high-precision ball screw transmission.
🔄 1200mm/3000mm Workbench can turn 180° (-90°~0°~+90°) to realize three-sided processing in a single clamping.
🛠️ Automatic G-code transformation via programming software for easy operation and low labor intensity.
📷

Detailed Features

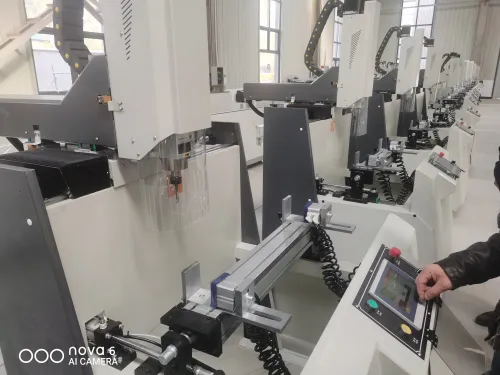

Multi-angle processing

Automatic profile turnover at multiple angles (0°, 90°, -90°) for efficient processing.

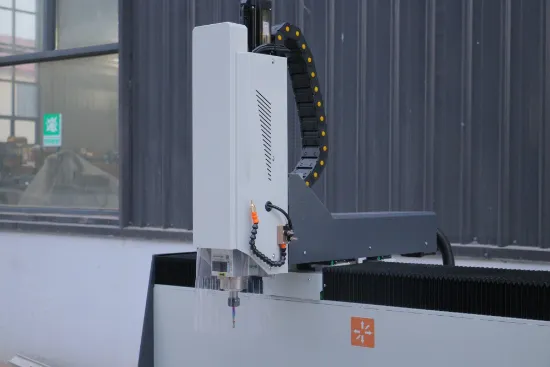

Square guide rails

High-precision square guide rails used on all axes to ensure mechanical accuracy.

📦

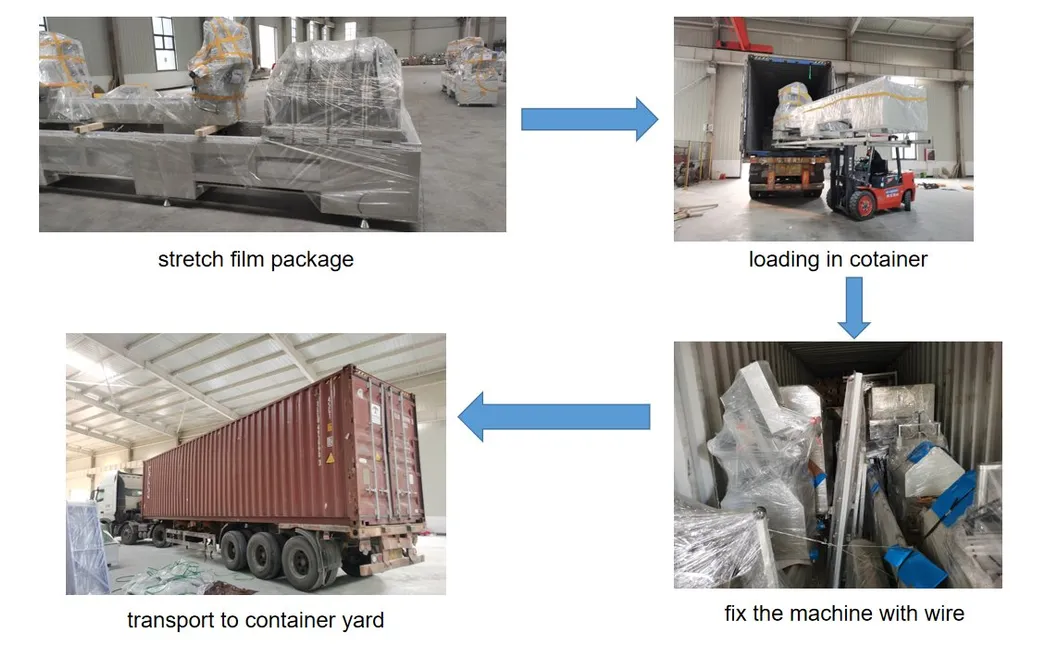

Packaging & Shipping

Packing Detail:
LCL: Stretch film inner, standard export plywooden cases outer.
FCL: Film wrap with steel iron fixing inside the container.
Delivery Detail:
Standard orders: Dispatched within 3-5 working days.
Customized machines: 10-15 working days.
Packaging Logistics
⭐

Our Advantages

• Craftsmanship: Dedicated to providing the best quality products through meticulous manufacturing.

• Expertise: Team members possess vast knowledge in the machinery domain, ensuring excellent service management.

• Cost-Effective: Efficient solutions tailored to modern industrial requirements.

• Layout Support: Professional factory layout planning offered by our engineers.

Workshop
Machine Testing
❓

Frequently Asked Questions

What materials can this machine process?
The SKX-CNC-680 is specifically designed for drilling, milling, and engraving aluminum profiles.
How many sides can be processed in one clamping?
The machine features a workbench that turns 180° (-90° to +90°), allowing for three-sided processing without re-clamping.
Is the machine easy to operate for beginners?
Yes, the system uses programming software that automatically transforms and processes G-code, making operation simple and efficient.
What is the standard delivery time?
Generally, dispatch is arranged within 3-5 working days for standard orders. Large or customized machines take approximately 10-15 working days.
How is the machine protected during international shipping?
We use standard export plywooden cases for LCL shipments and reinforced film/steel fixing for FCL shipments to ensure the machine arrives safely.
What certifications does the machine have?
The machine is fully certified with ISO and CE standards, meeting international quality and safety requirements.
