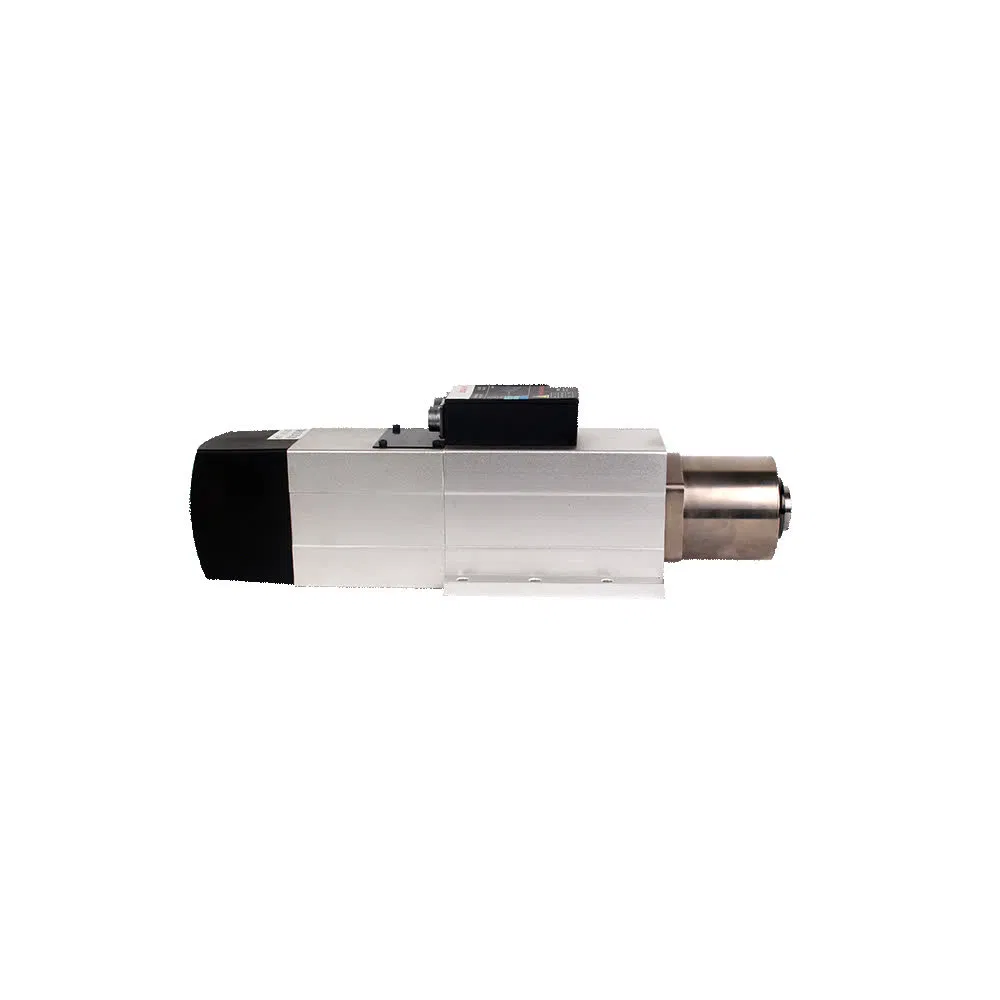

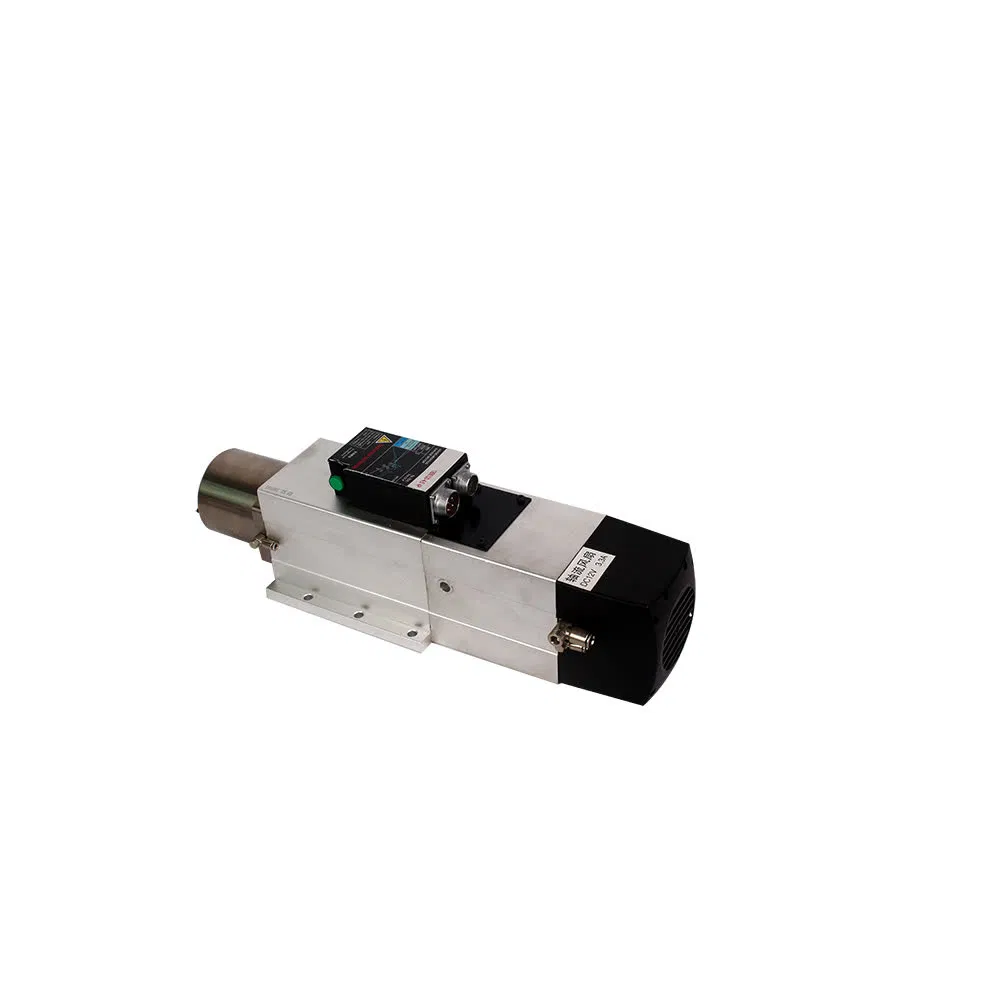

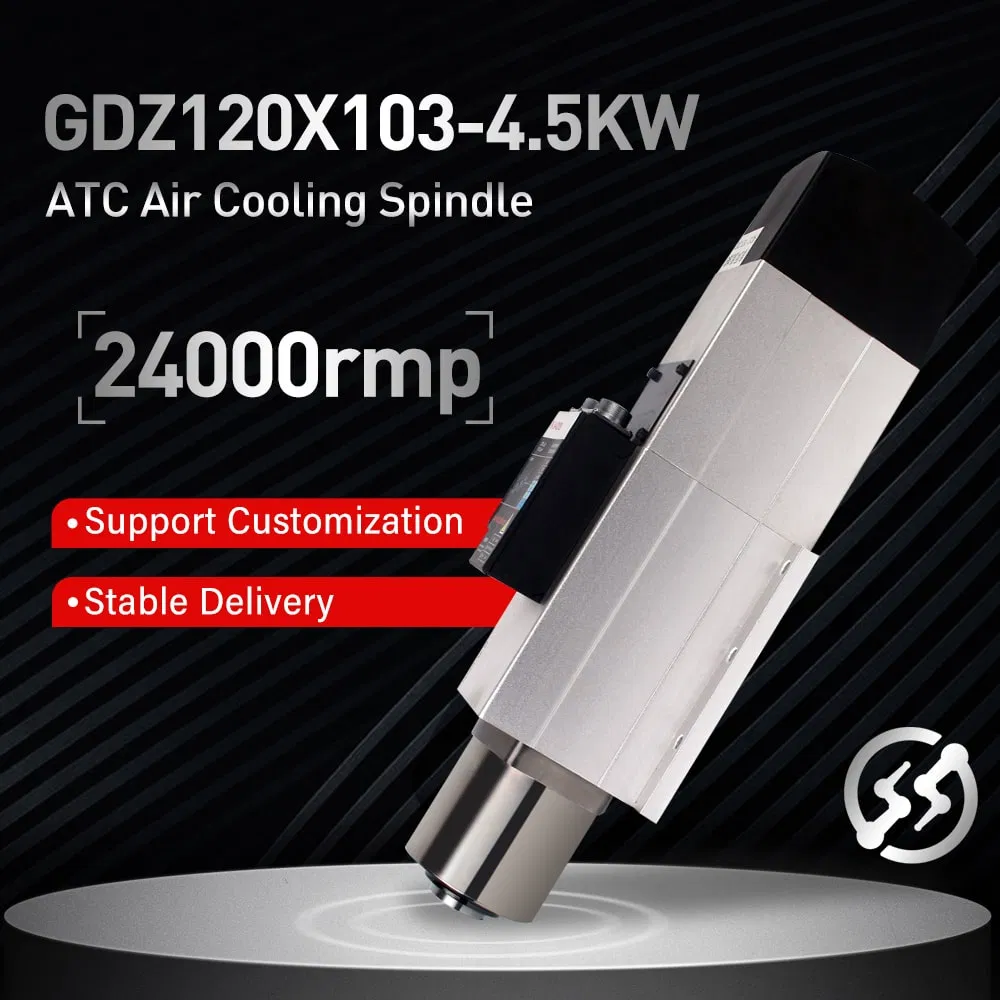

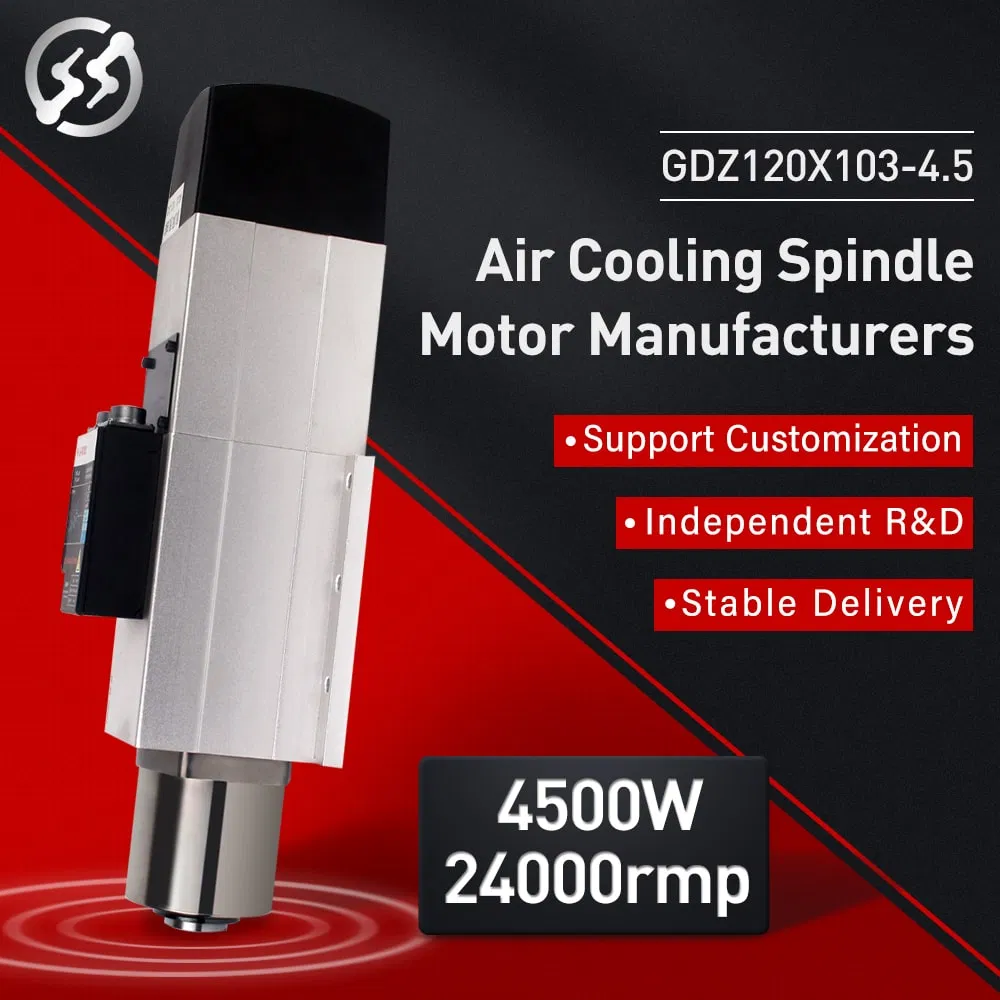

GDZ120X103-4.5KW 24Z ATC
02
Product Description
1

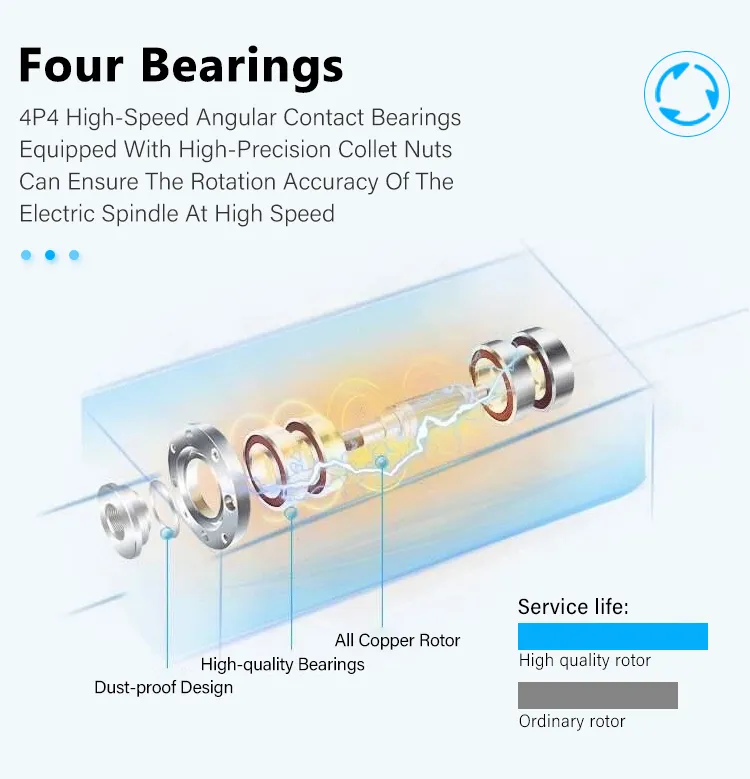

High rotation accuracy: P4 high-speed angular contact bearings with high-precision collet nuts ensure stable rotation accuracy at high speeds.
2

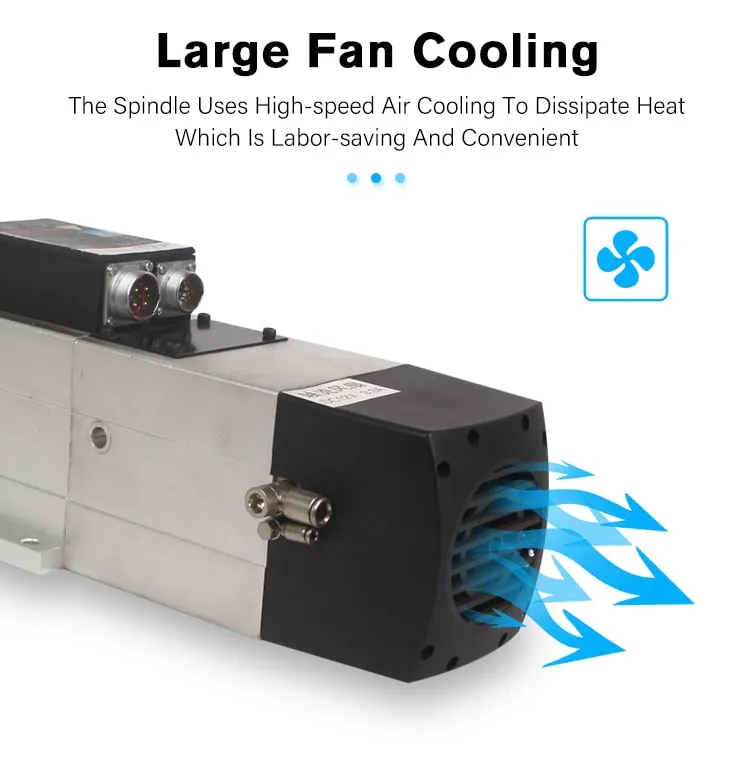

Good heat dissipation effect: High-speed air cooling is efficient and labor-saving. No water pipes or pumps are required; simply connect to the inverter.
3
Superior Lubrication: Adopts high-temperature resistant grease lubricating oil capable of withstanding up to 200 degrees Celsius.
4
Enhanced Durability: The body is crafted from high-quality stainless steel, ensuring a smooth finish that is rust-resistant and long-lasting.

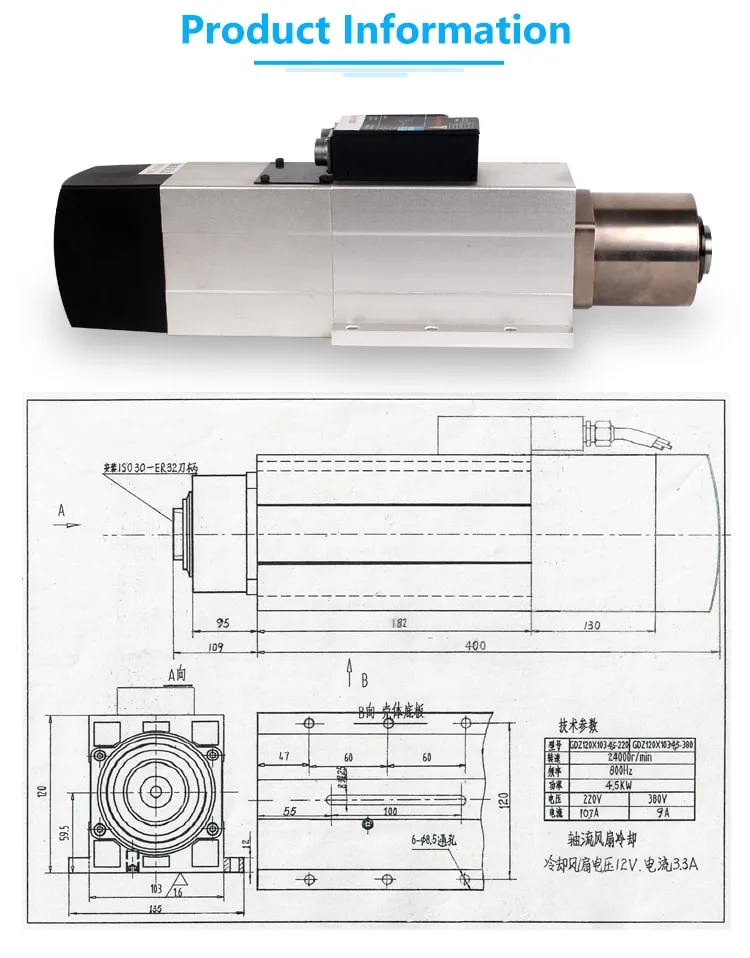

| Model | GDZ120X103-4.5KW 24Z ATC |
| Gross weight | 22Kg |
| Collet | ER32-ISO30 |
| Frequency | 800Hz |
| Speed | 24000r |
| Rated power | 4.5KW |
| Voltage | 220V/380V |
| Current | 10.7-11A |
| Cooling type | Air cooling |
04
Technical Details
★

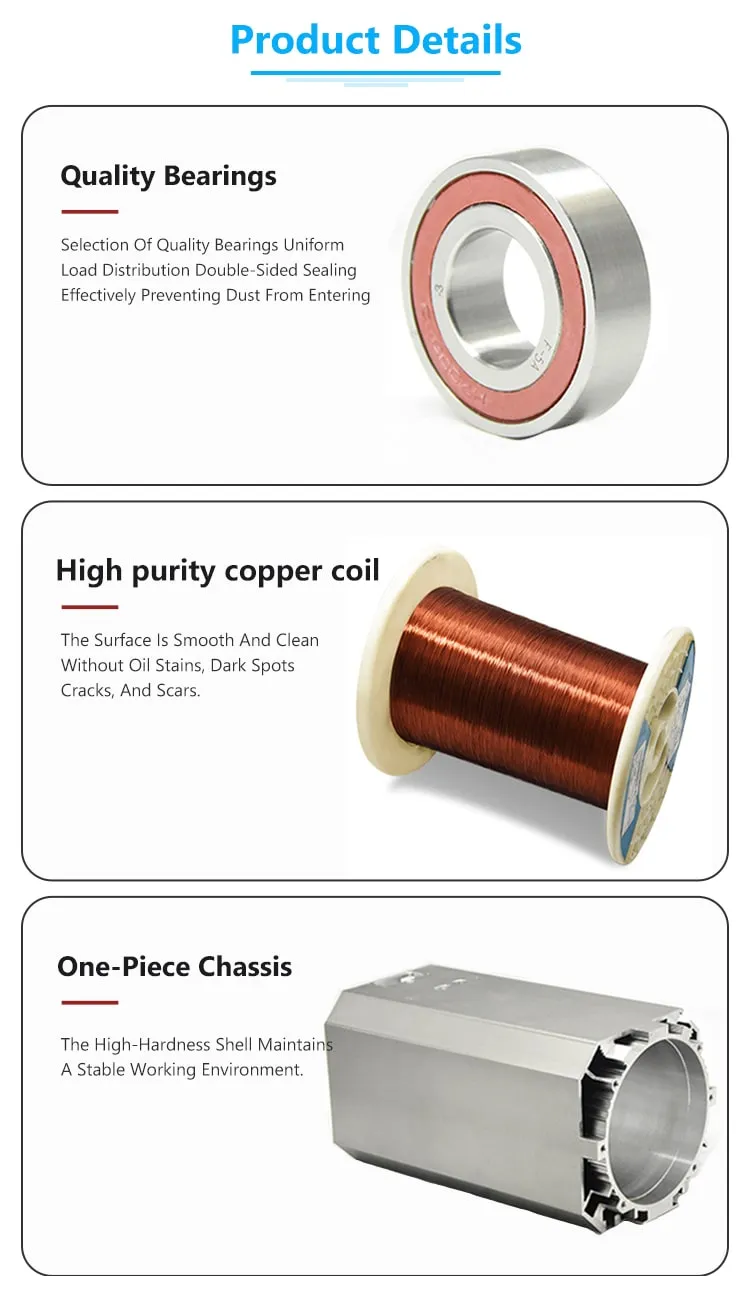

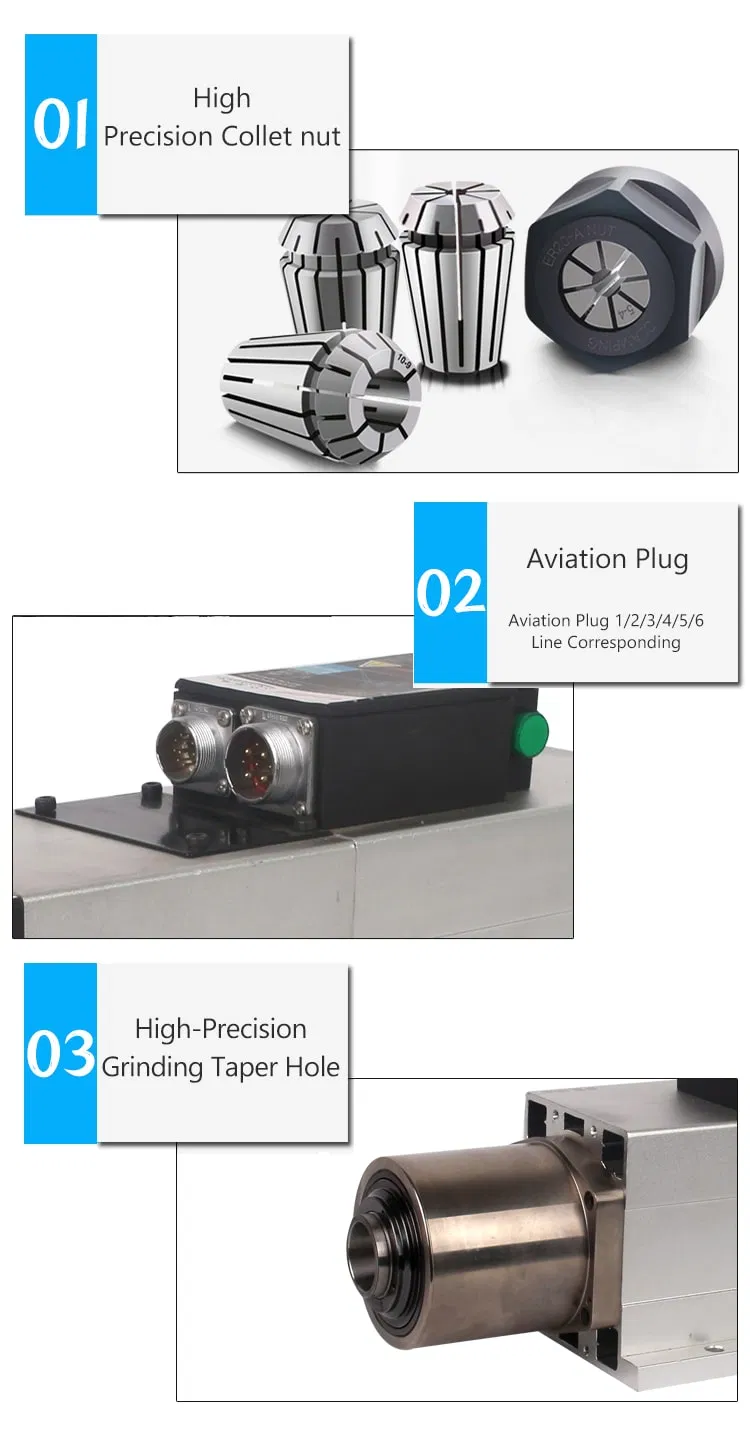

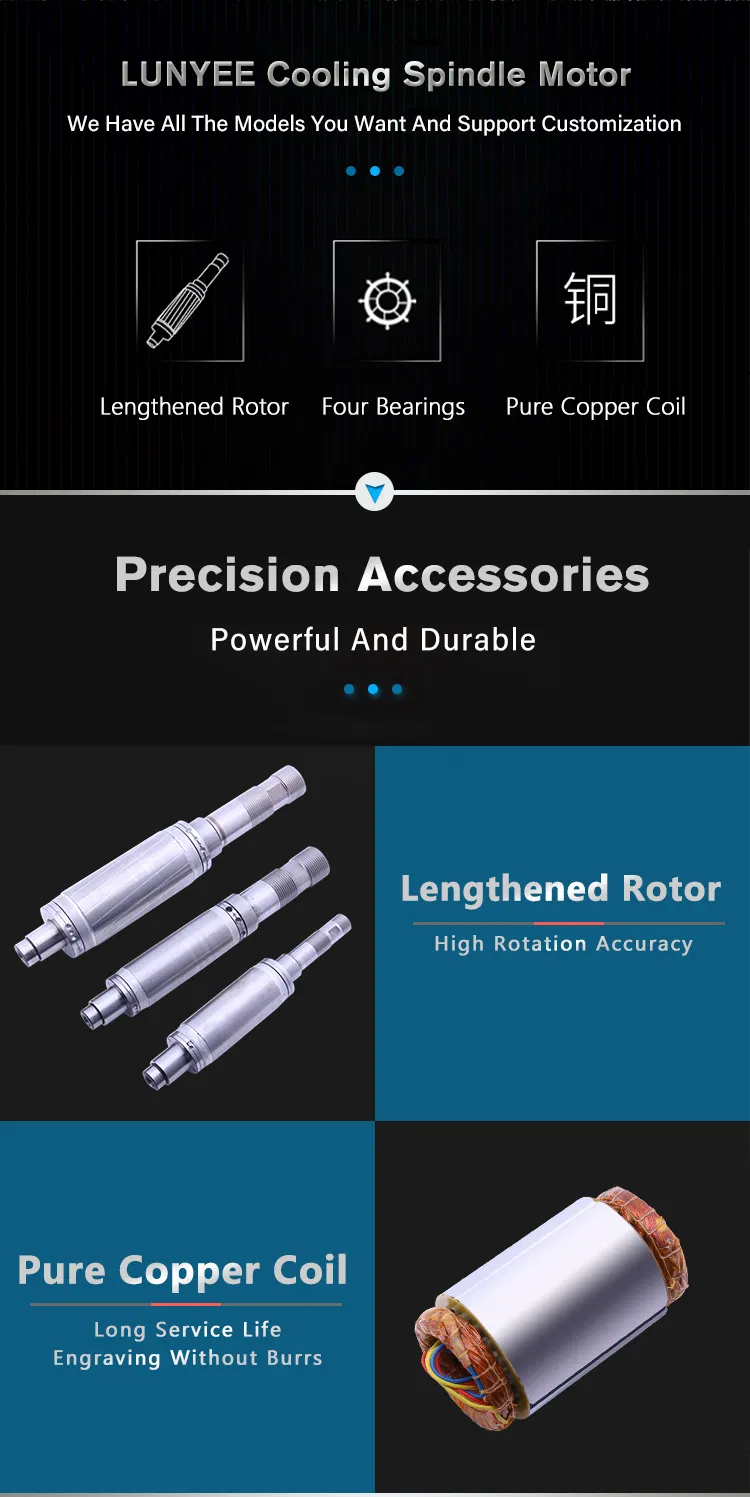

One-piece casing: High-hardness alloy casing ensures a stable working environment and maintains high product yield.
★
High-purity copper coil: Oxygen content ≤ 0.02%, impurity content ≤ 0.05%. Smooth surface without oil stains or cracks.
★
Front dust cover: Effectively isolates dust and waste water to prevent internal circuit short circuits.
★
Spindle shaft core: High durability core treated with vacuum heat and mirror discharge processes for extreme precision.
05
Applications

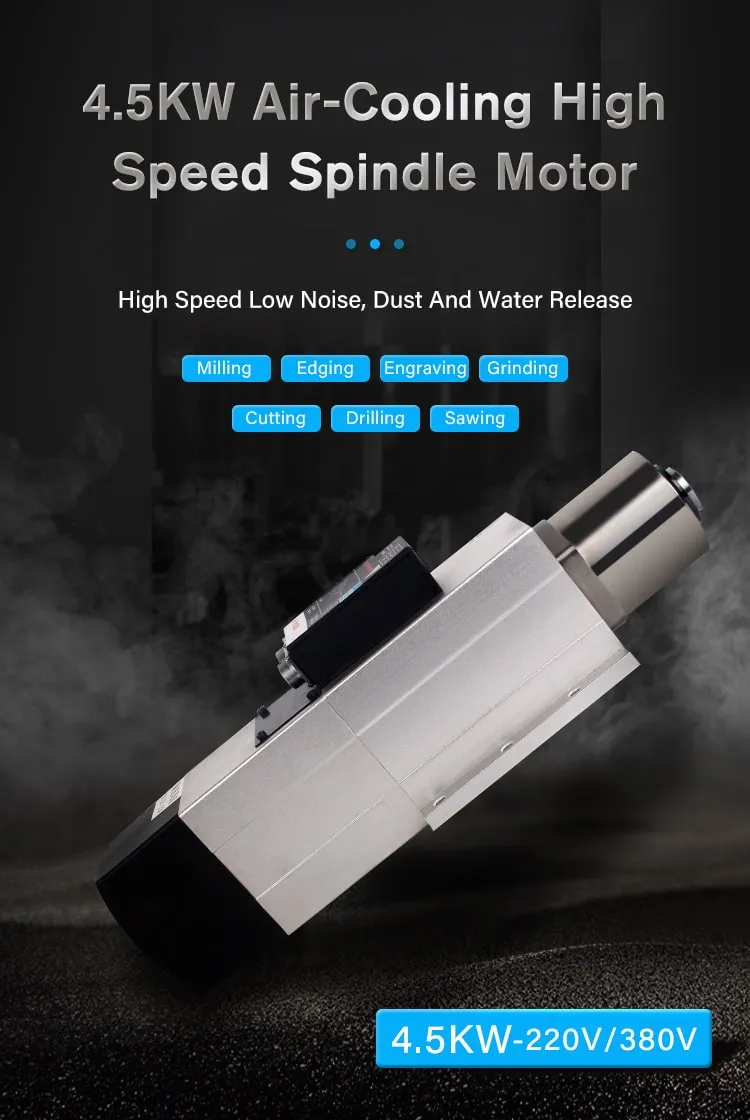

Suitable for high-speed and high-precision milling, drilling, and tapping of various metal and non-metal materials. Applicable materials include acrylic, PVC board, wood, density board, marble, rubber, glass, and more.
If you have specific engraving scenarios or materials, please feel free to consult us.
06
Precautions
!
The spindle and inverter must match. Incorrect parameter settings will cause the spindle to burn.
!
Clean the collet, nut, and taper hole before clamping. Tool insertion depth must be at least 15 mm.
!
Preheat the spindle for 15-20 minutes daily. Stop operation for 2 hours daily to restore mechanical fatigue.
!
Strictly avoid knocking the end cover or shaft end during tool changes or transportation.
!
Use clean, dry air via an oil-water separator. Required air pressure: 0.2-0.25MPA.
07
Industry Focus
We focus on the design, development, and production of industrial factory automation solutions. Our core product range includes high-performance spindle motors, hub motors, and various AC/DC motors. Our spindle series—including water-cooled, air-cooled, and ATC variants—are widely utilized in grinding machines, CNC drilling, and laser engraving across international markets including Europe, the USA, and Asia.
08
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional motor manufacturer with over 15 years of industry experience.
What is the standard delivery time?
Delivery depends on the order quantity, typically ranging from 15 to 25 working days.
How can I place an order?
Send us an inquiry, receive a quotation, negotiate details, confirm samples, and proceed with the contract and production.
Do you provide sample services?
Yes, we offer sample services. The sample fee can be refunded once a formal mass production order is placed.
What payment methods are accepted?
We accept T/T and PayPal. Generally, a 30%-50% deposit is required, with the balance cleared before shipment.
What should I do if my package is missing items?
Please contact our support team immediately. We will verify your order and package contents to resolve the issue.
