Robotic CNC
1 / 5

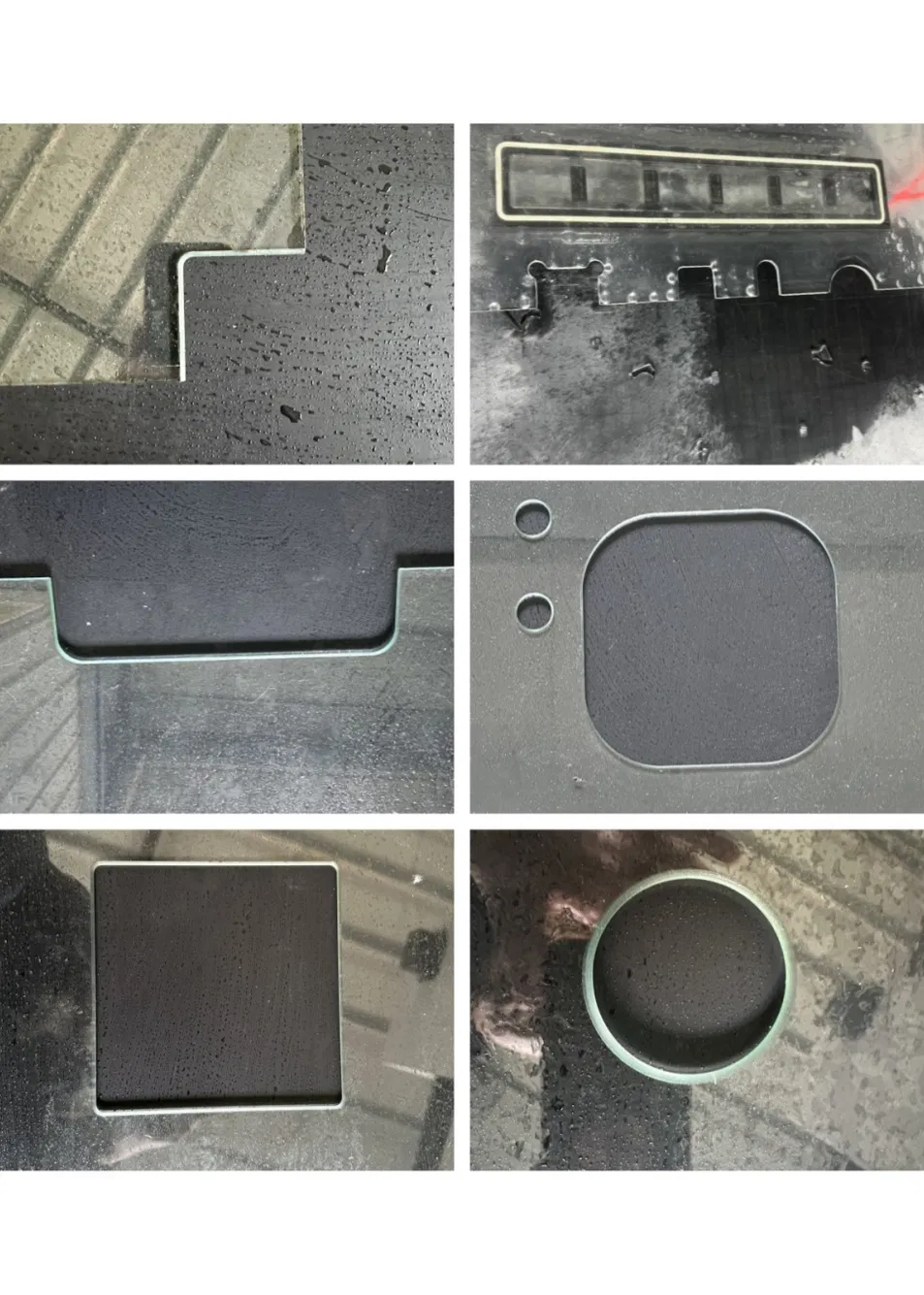

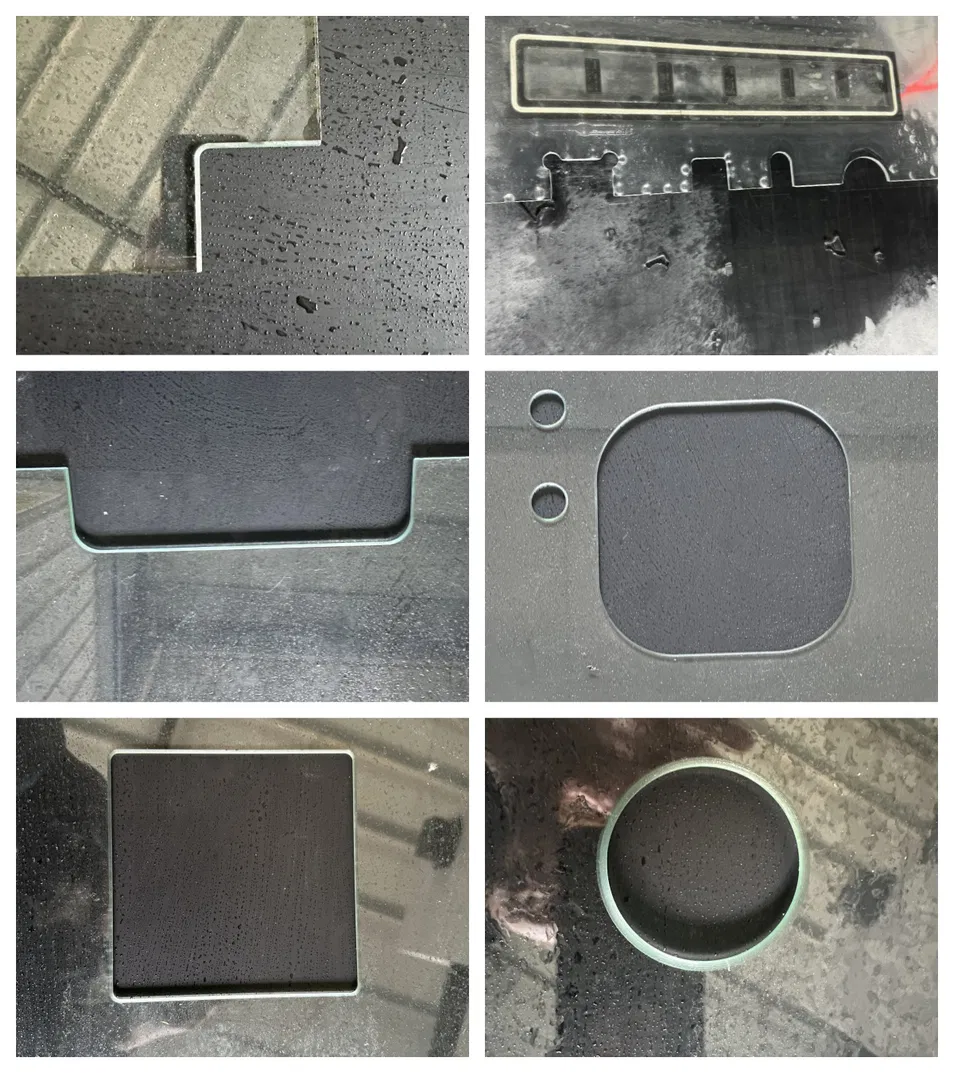

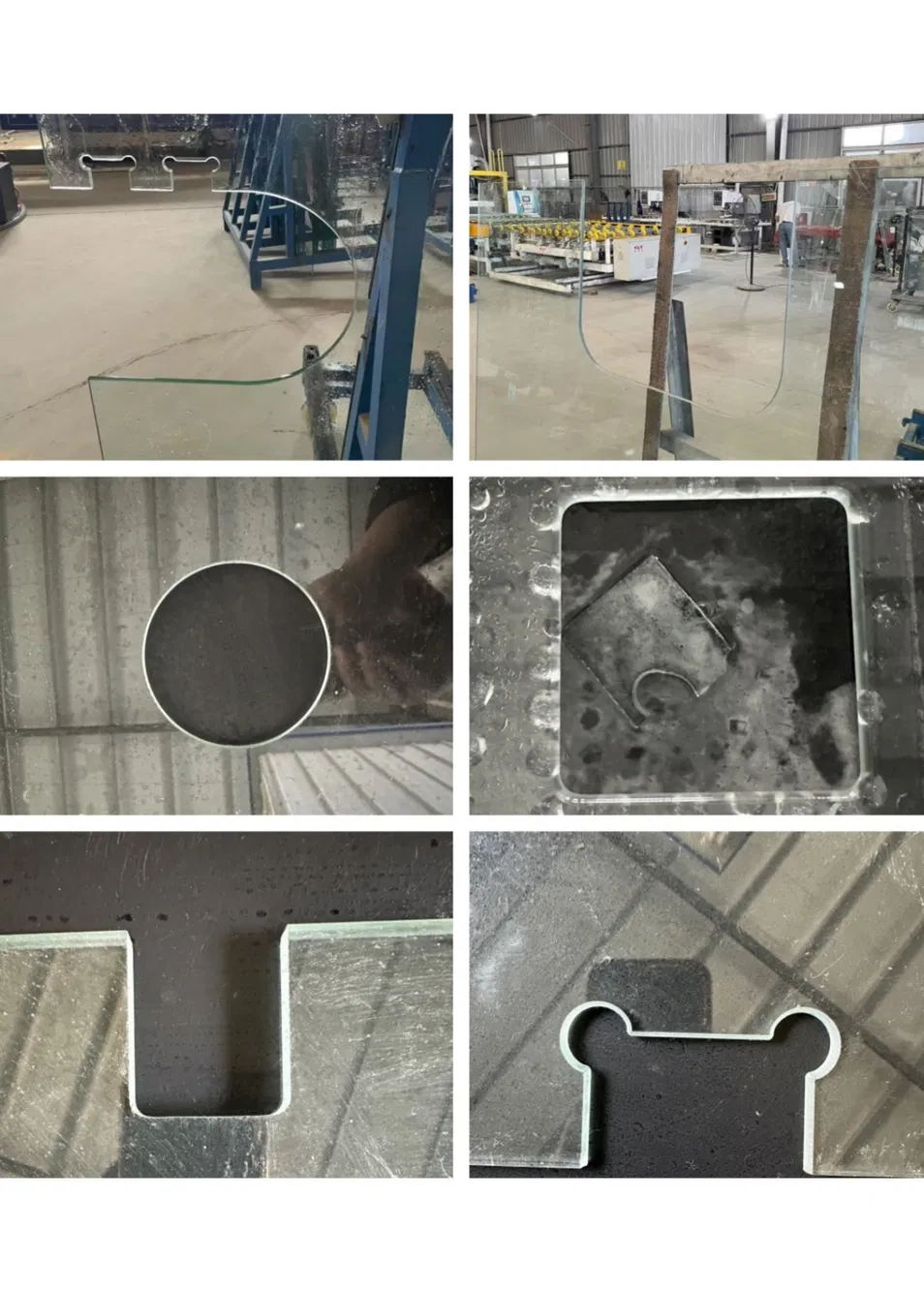

Drilling circular or oval holes in specified locations on the glass for installing hinges, handles, and accessories for doors, windows, and cabinets.
Creating slots or grooves on the edge or surface of the glass to accommodate splicing, inlaying, or hardware fixing for shower enclosures and appliances.
After grooving or drilling, inner edges can be ground to eliminate chipping and significantly improve the yield of tempered glass.

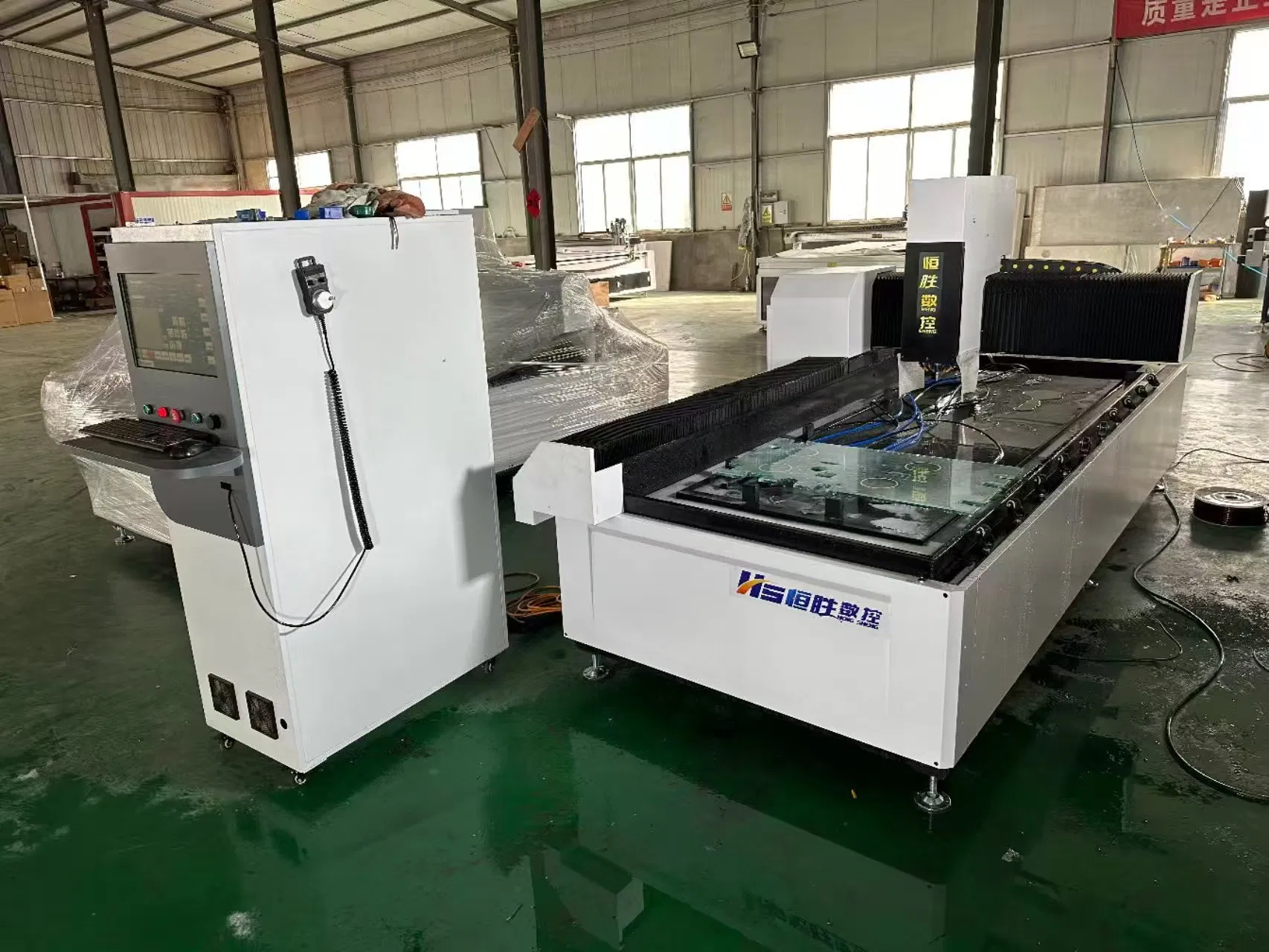

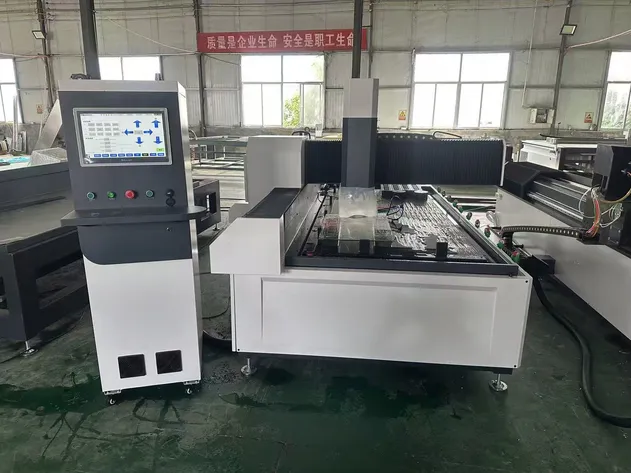

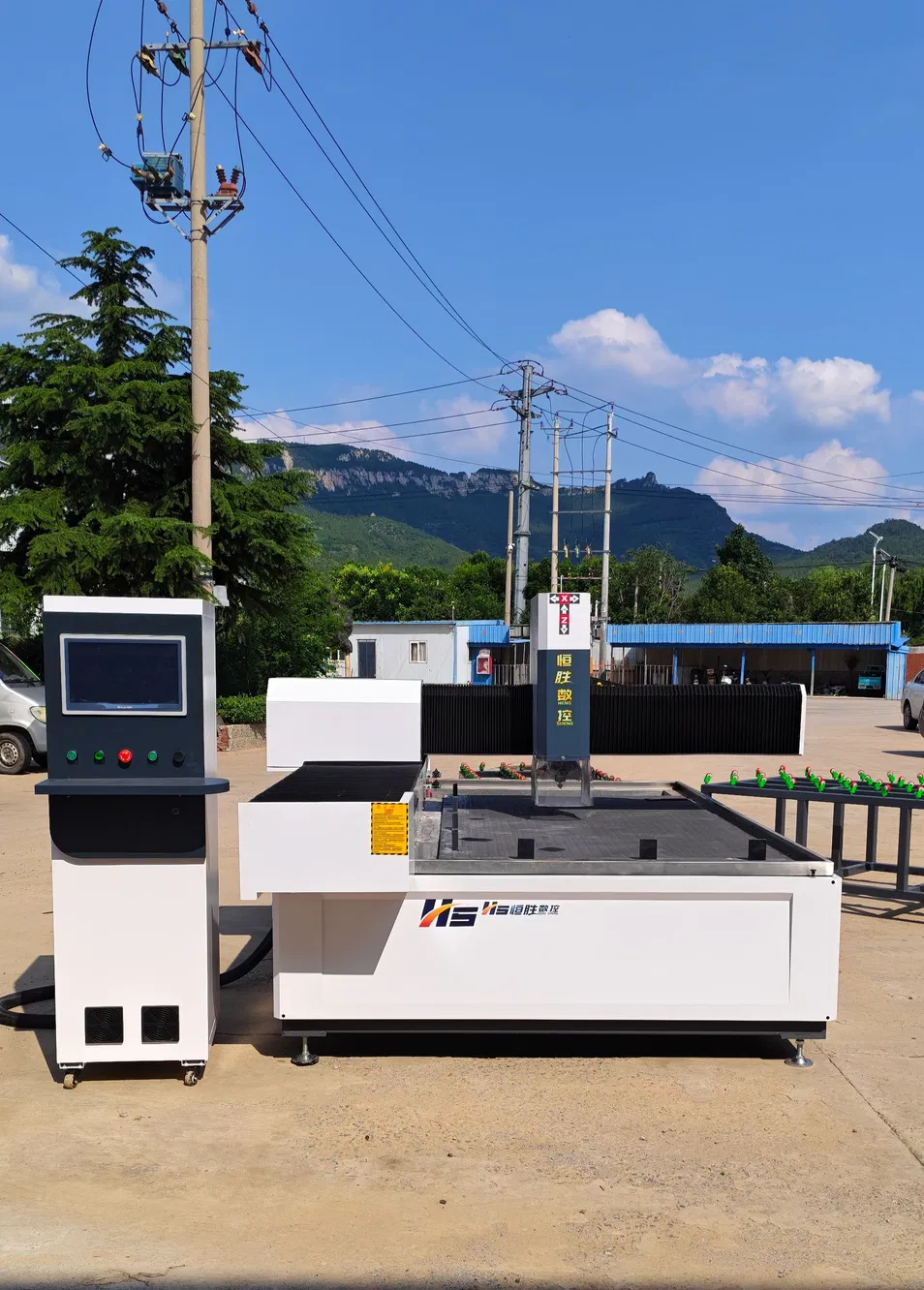

Single cantilever machine structure, simple and convenient for glass loading/unloading. Three-sided open design allows for unlimited glass size processing. Constructed from thick-walled square tubing, machined by a five-axis center with high-temperature annealing to ensure long-term stability.
★ High-Speed Spindle7.5KW spindle reaching up to 24,000 rpm. Positioning accuracy reaches ±0.01mm, and repeatability reaches ±0.005mm.

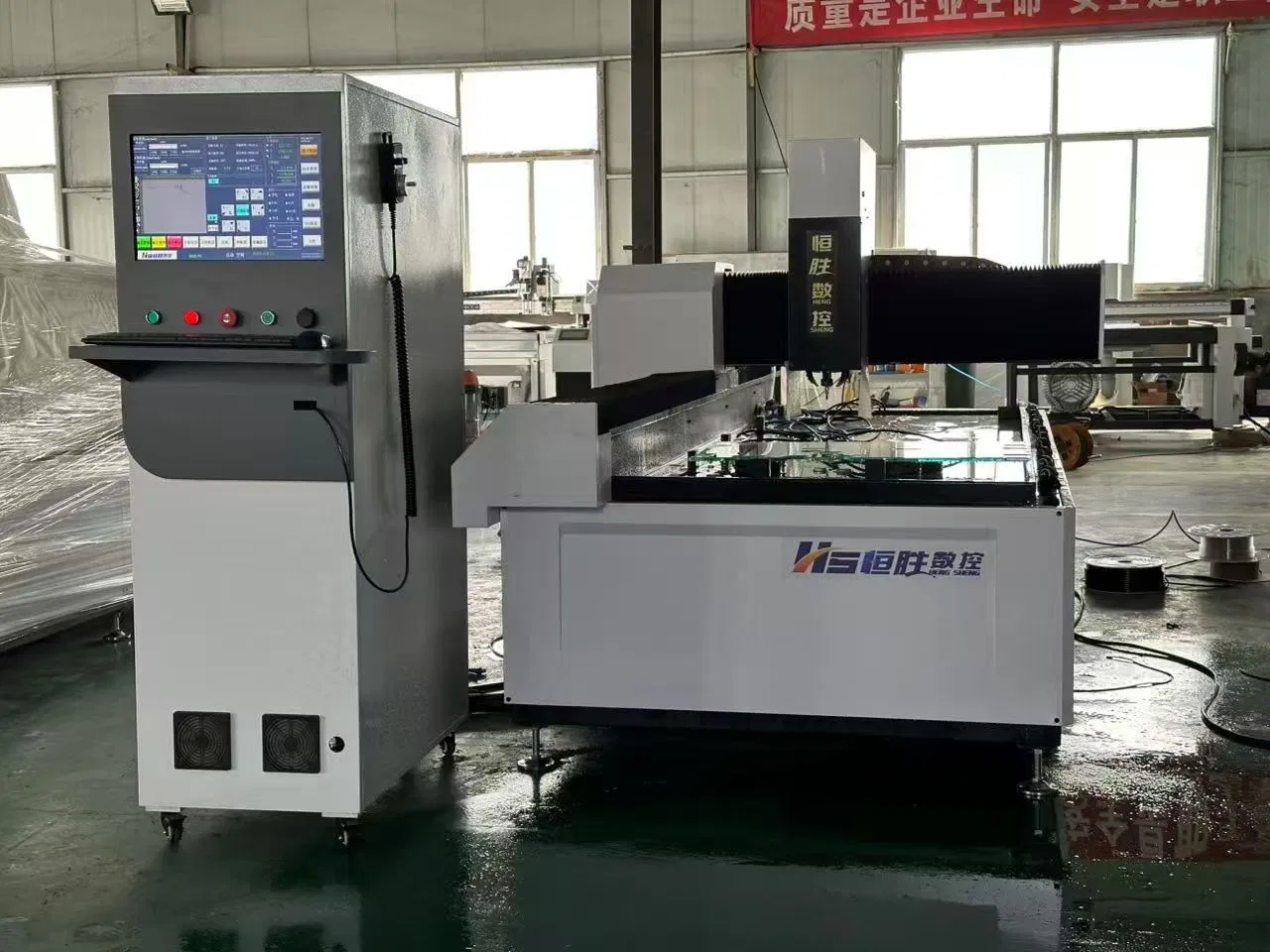

★ Professional Operating SystemDedicated glass drilling and milling control system with a built-in image library and multiple processing modes. Touchscreen operation for ease of use.
| Feature | HS-1025 | HS-1325 | HS-3015 |
|---|---|---|---|
| Work Scope | 1000*2500*200mm | 1300*2500*200mm | 3000*1500*200mm |
| External Size | 2100*3600*1800mm | 2250*3600*1800mm | 5200*2250*1800mm |
| Spindle Power | 7.5kw Special spindle for drilling and milling | ||
| Spindle Speed | 0-24000 RPM | ||
| Motion System | Professional servo motors (X/Y: 1.5KW, Z: 750W with brake) | ||
| Fixing Mode | Vacuum pump + 4 vacuum plates + 2 circular suction cups | ||

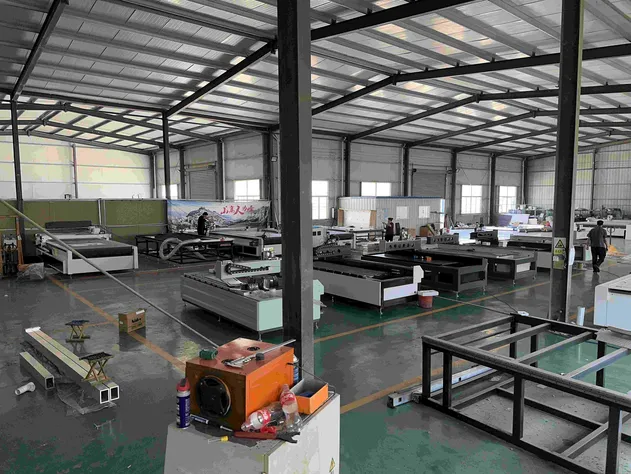

We focus on professional R&D and production capabilities, collaborating with research institutions to ensure our CNC equipment remains at the industry forefront.

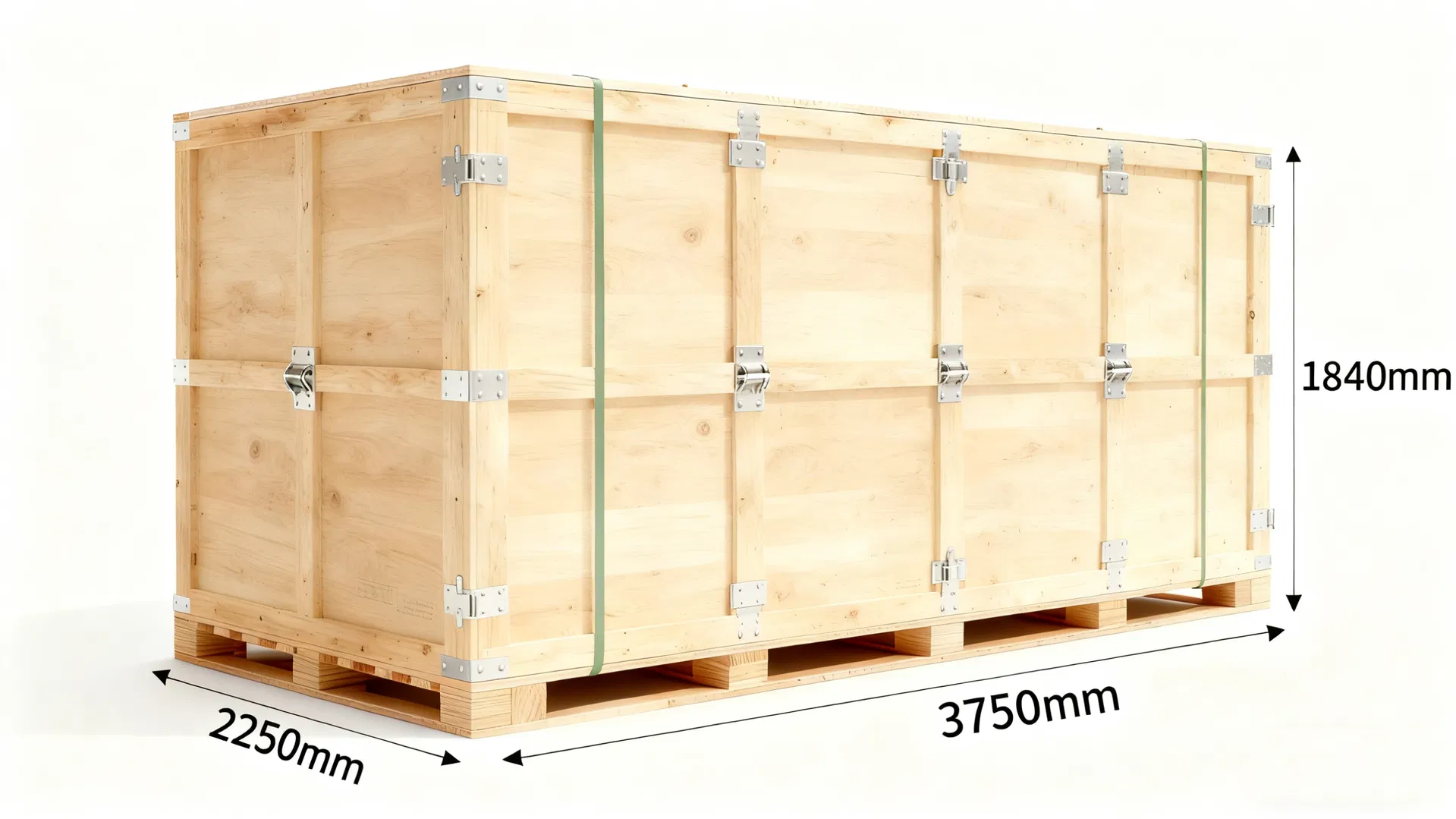

Standard machine width is controlled at 2200mm, optimized for export container loading. Custom sizes are supported via modular layouts.
