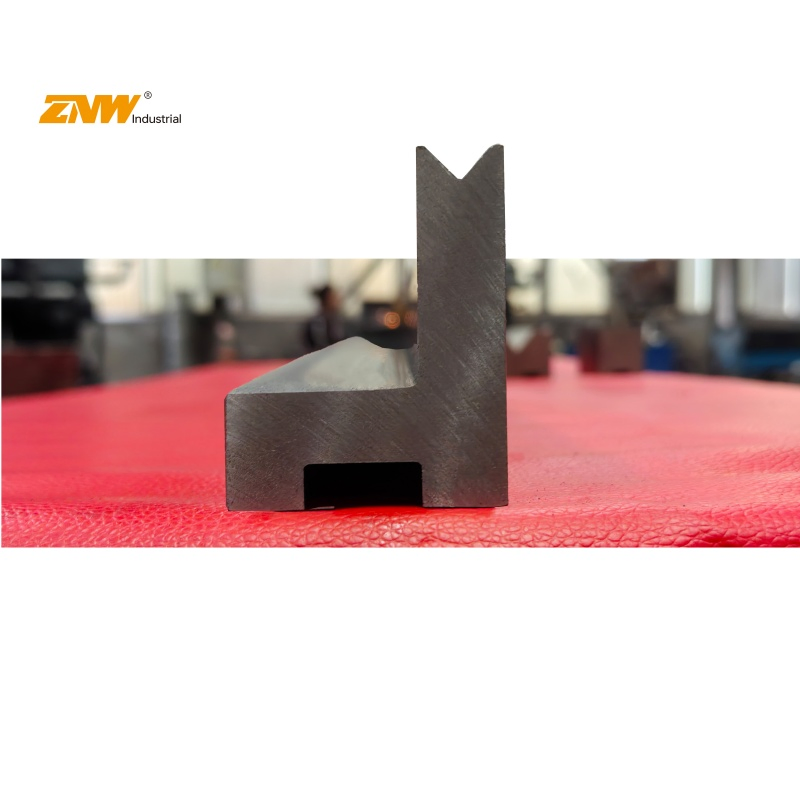

High Quality CNC Hydraulic Bending Machine Molds Press Brake Tooling for Press Brake Upper Punch and Bottom Single V Die
High Quality CNC Hydraulic Bending Machine Molds Press Brake Tooling for Press Brake Upper Punch and Bottom Single V Die
High Quality CNC Hydraulic Bending Machine Molds Press Brake Tooling for Press Brake Upper Punch and Bottom Single V Die
High Quality CNC Hydraulic Bending Machine Molds Press Brake Tooling for Press Brake Upper Punch and Bottom Single V Die
High Quality CNC Hydraulic Bending Machine Molds Press Brake Tooling for Press Brake Upper Punch and Bottom Single V Die
1 / 5
High Quality CNC Hydraulic Bending Machine Molds Press Brake Tooling for Press Brake Upper Punch and Bottom Single V Die
High Quality CNC Hydraulic Bending Machine Molds Press Brake Tooling for Press Brake Upper Punch and Bottom Single V Die
High Quality CNC Hydraulic Bending Machine Molds Press Brake Tooling for Press Brake Upper Punch and Bottom Single V Die
High Quality CNC Hydraulic Bending Machine Molds Press Brake Tooling for Press Brake Upper Punch and Bottom Single V Die
High Quality CNC Hydraulic Bending Machine Molds Press Brake Tooling for Press Brake Upper Punch and Bottom Single V Die

High Quality CNC Hydraulic Bending Machine Molds Press Brake Tooling for Press Brake Upper Punch and Bottom Single V Die

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Info.
Model NO.Bottom die
CraftworkShort Axis Type
Forging StepsAutomotive Half Shaft Forming
CertificationCE
Warranty1 Year
Metal Color42CrMo/55sicr
TypePress Brake Tooling
Capacity10000PCS/Month
Press Brake Tooling Overview
Product Description

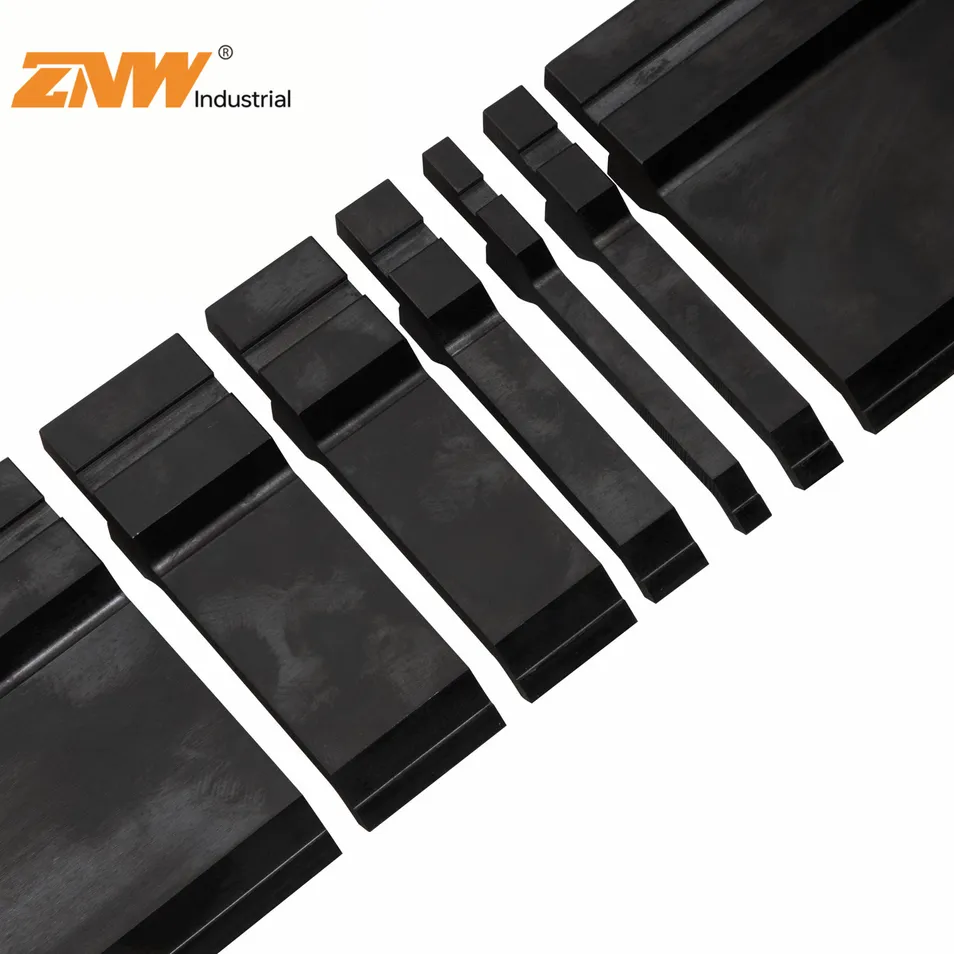

Bending punch and die
Bending punch - An upper tool attached directly to the moveable beam or upper holder of the press brake.
Bending die - A lower tool attached to the press brake table or lower support, remaining fixed during operation.
Tooling sets - Complete sets including upper and lower parts for special applications like Z-bending or hemming, supplied as a coordinated set.

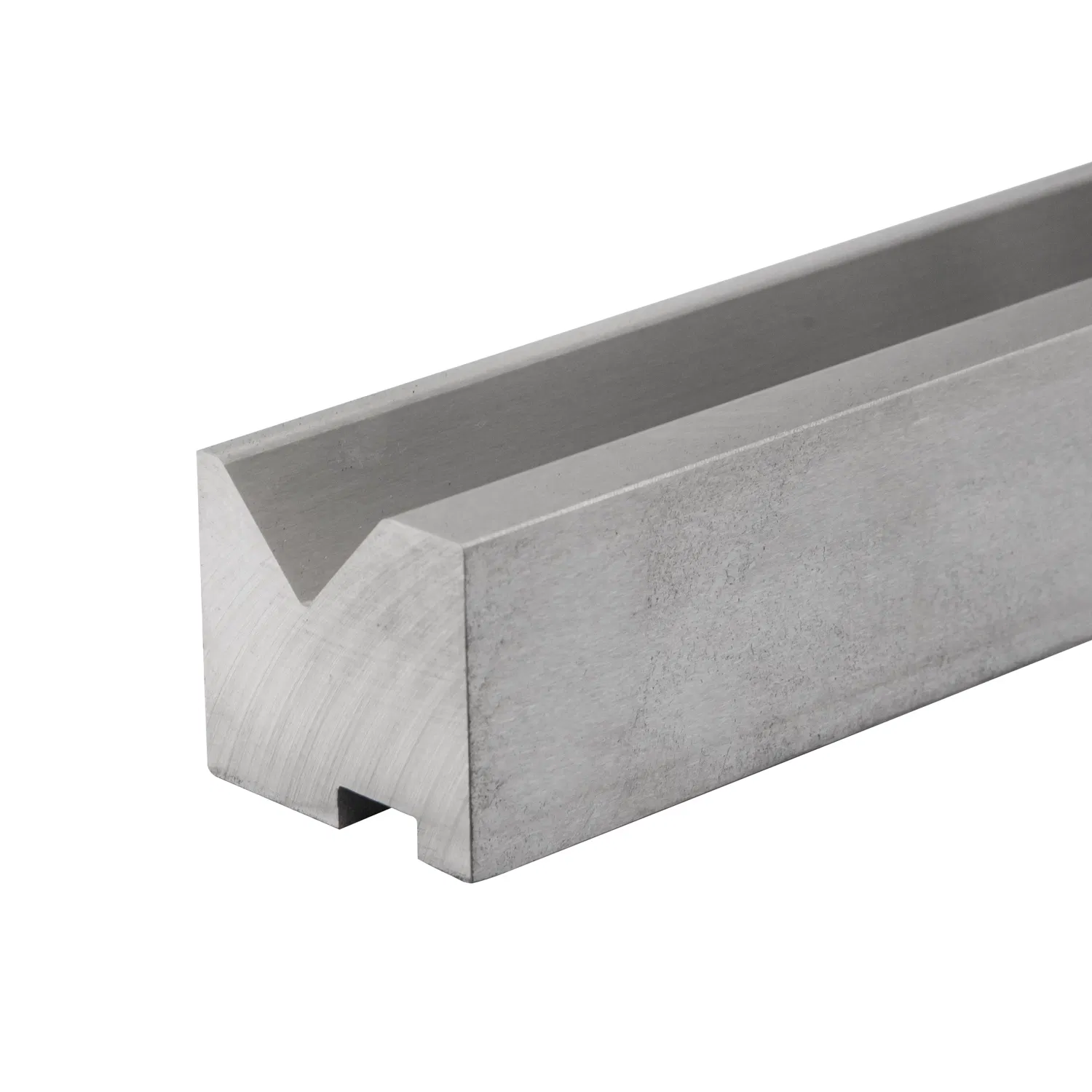

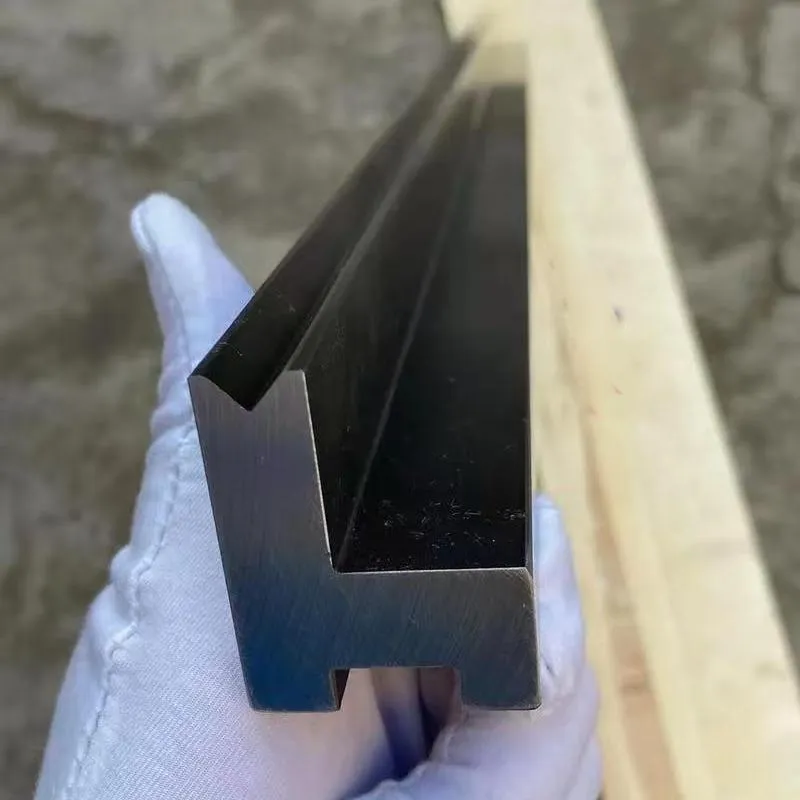

Single V Die

Single V Die (V8 - V48 In Stock)

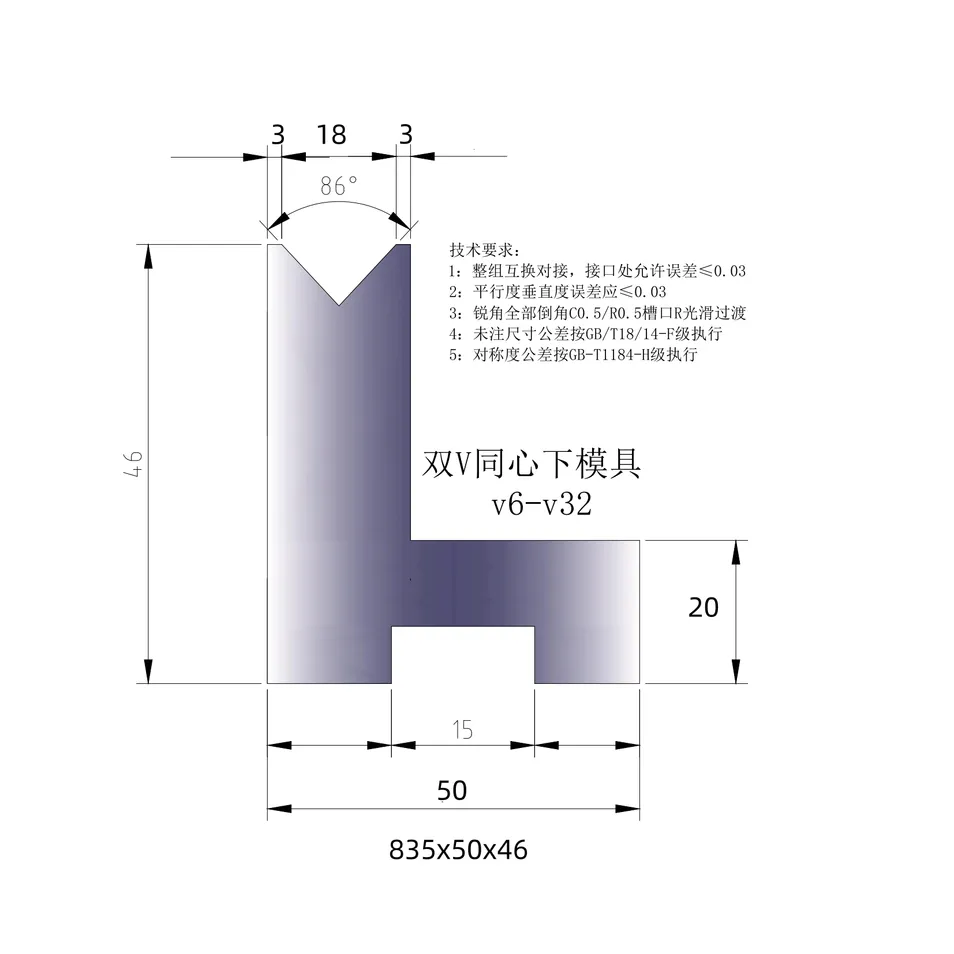

Double V Die

Double V Die (V6V10 - V6V40 In Stock)

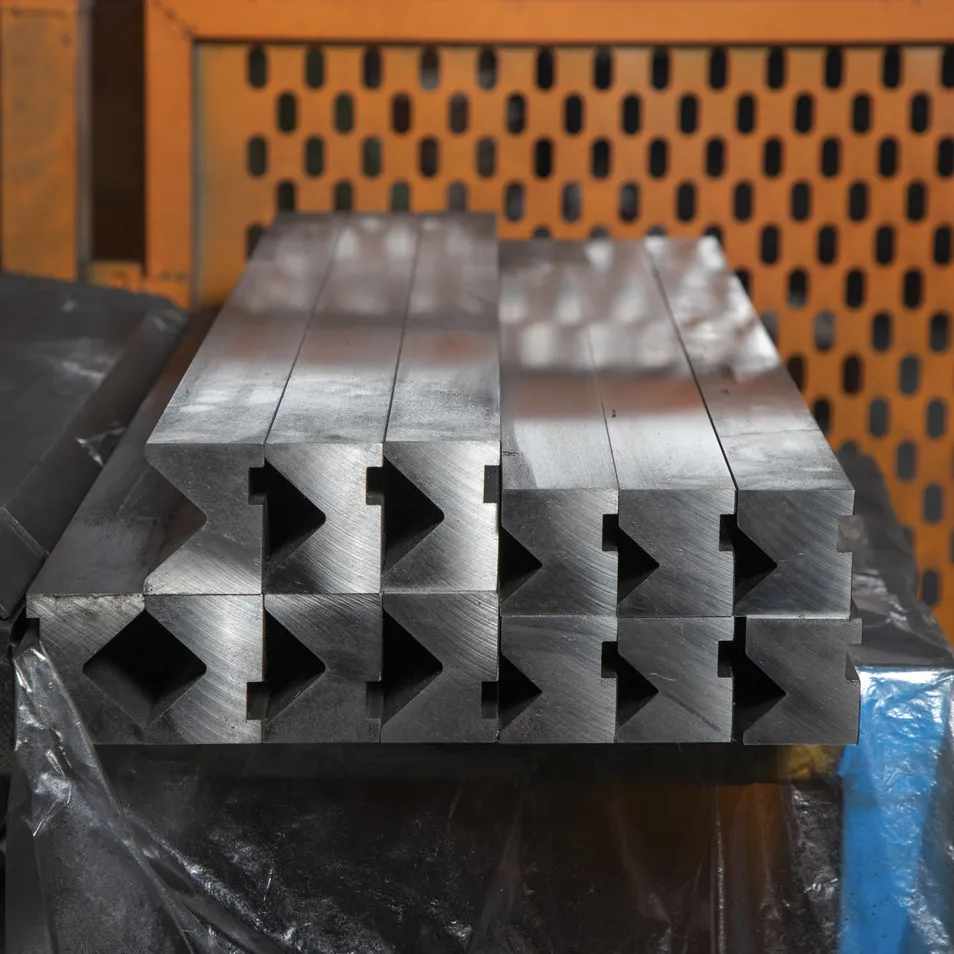

Matrix Die

Matrix Die

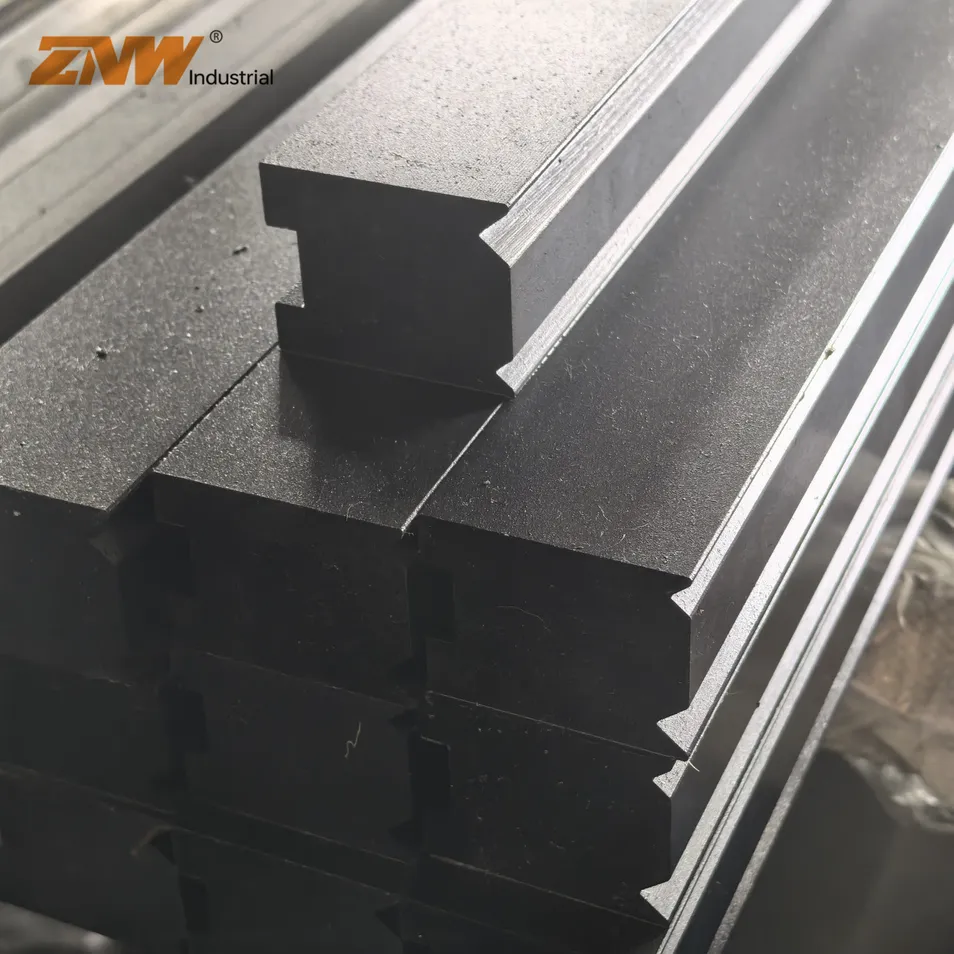

T-type Die

T-type Die

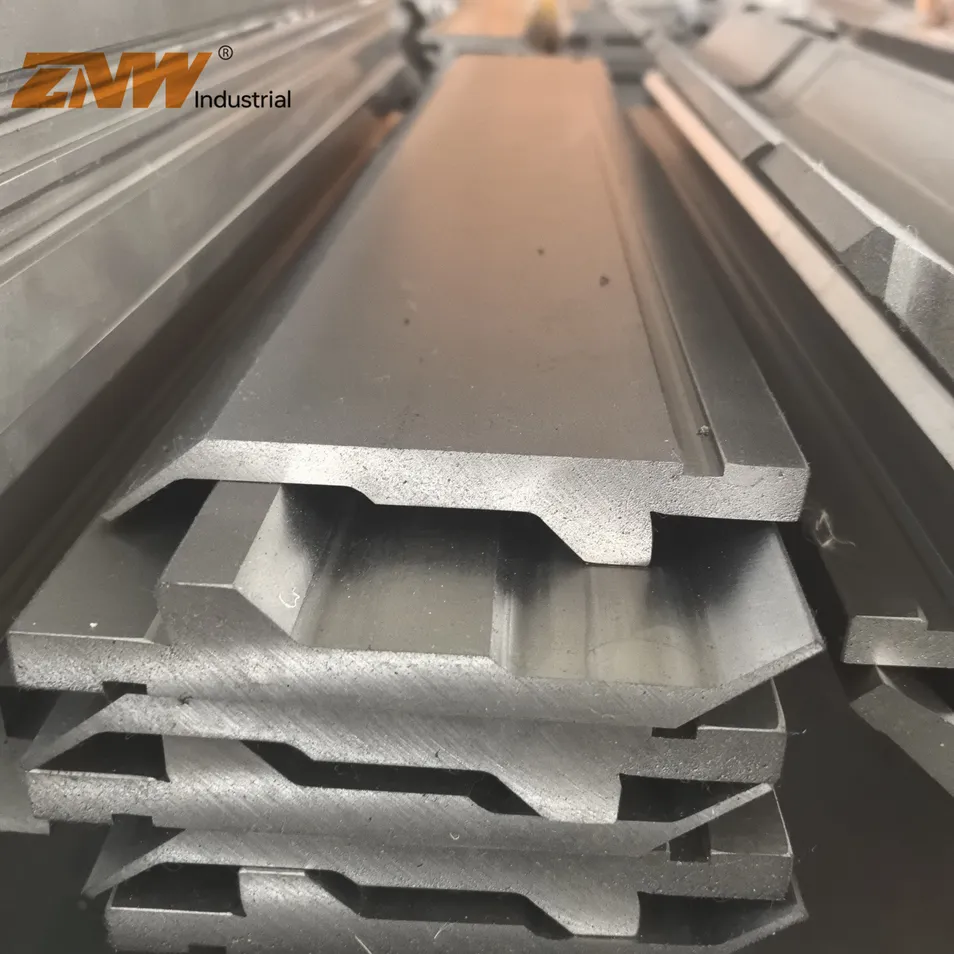

78 Degree Punch

78° Press Brake Punch

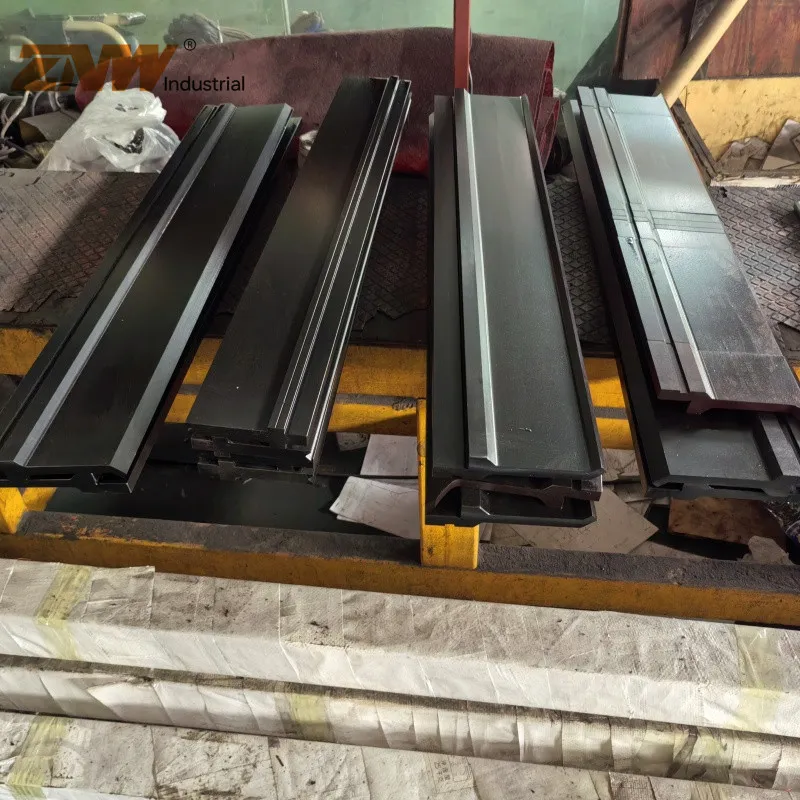

Standard Punch

Standard Punch

Brand Compatibility

AMADA & WILA STYLE TOOLING

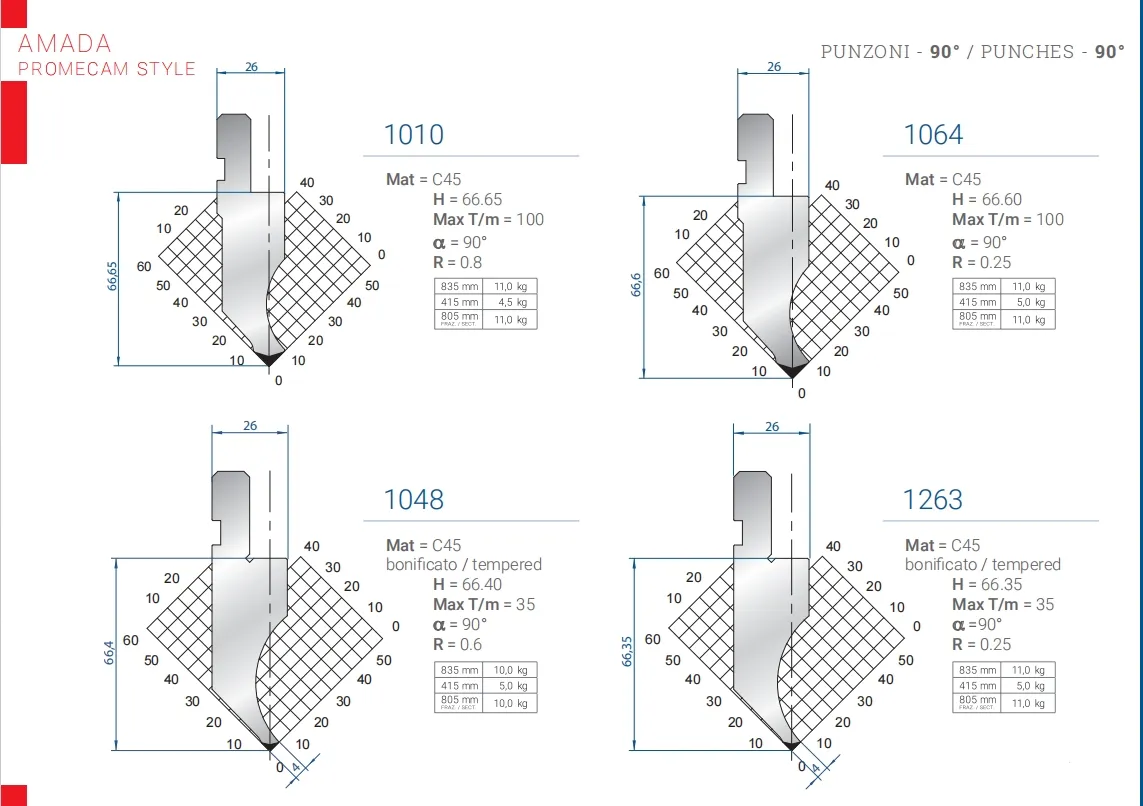

Amada Tooling 1

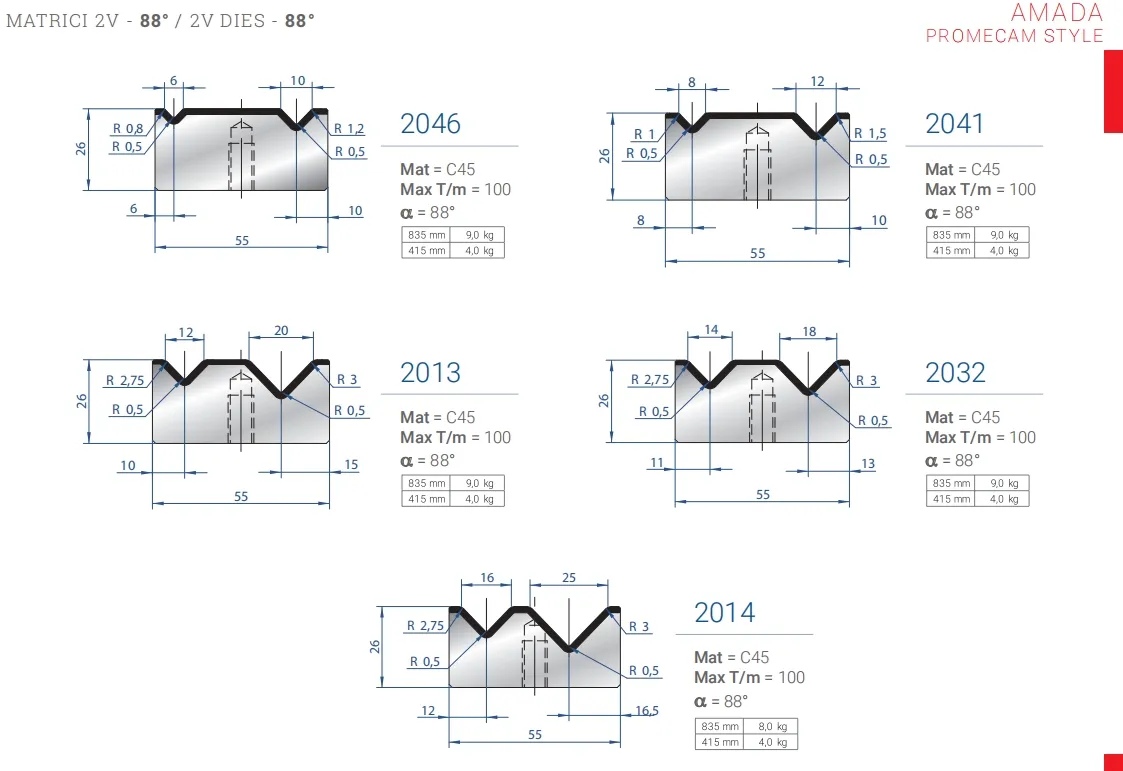

Amada Tooling 2

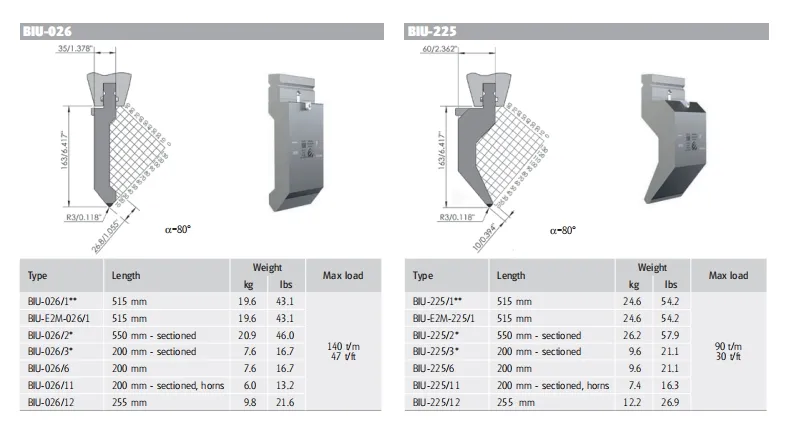

Wila Tooling
Technical Specifications
Product NameOEM ODM customized press brake tooling
Material42CrMo
Standard Sizes500 / 800 / 835 / Customized
Punch Segment Sizes10, 15, 20, 40, 50, 200, 300, 100L, 100R / Customized
Die Segment Sizes200, 10, 15, 20, 40, 50, 400, 100 / Customized
Hardness Range49-60HRC (Depending on Material & Technology)
Key FeaturesAMADA, European, Segmented, Arc, International Standard, Non-Streaking
MOQ1 PC
Manufacturing Strength

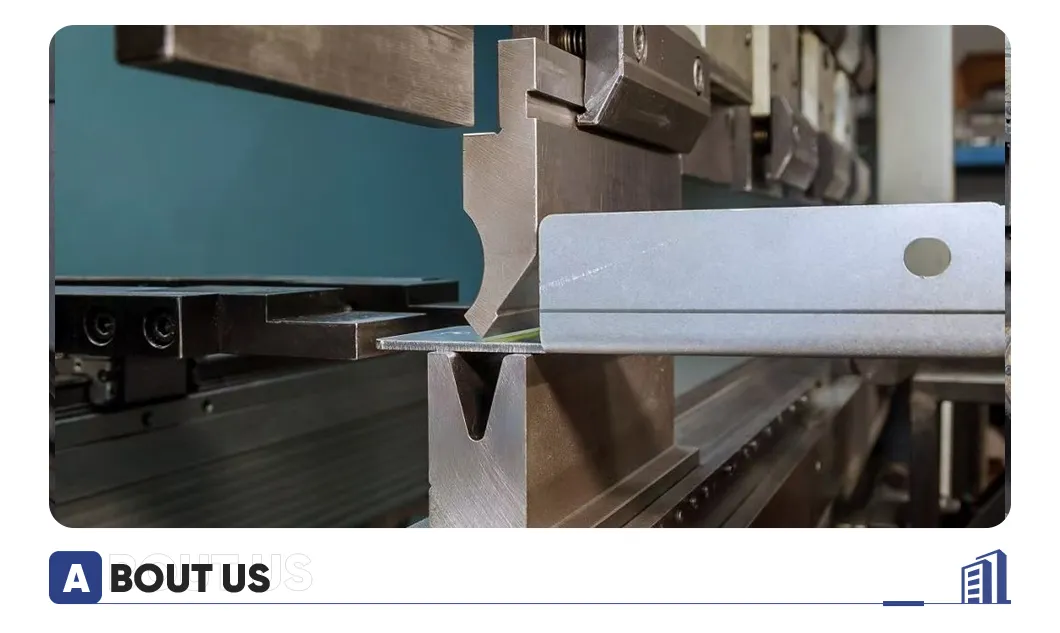

Factory Overview
Established in 2001, we operate specialized facilities providing high-precision press brake toolings and industrial shredder machines. Utilizing advanced technology, we serve a global clientele across the USA, Canada, Russia, Mexico, Brazil, Spain, India, and more.
Advantage 1
Advantage 2
Advantage 3
Packaging & Shipping
Certification
Shipping
Frequently Asked Questions
What types of Press Brake Dies do you manufacture?
We manufacture a full range of precision press brake tooling, including punches, single V dies, double V dies, matrix dies, and specialized tooling sets for various sheet metal bending requirements.
What information is needed to order the correct die for my machine?
Please provide your machine model/tonnage, the required die type (e.g., gooseneck, acute angle), die length, the thickness of the material you are bending, and any specific standards (European or American).
What materials are used for the tooling?
Most of our high-quality tooling is manufactured using 42CrMo or 55SiCr, ensuring excellent durability and performance under high pressure.
What is the hardness level of your press brake tools?
The hardness typically ranges from 49 to 60 HRC, depending on the specific material used and the technology applied during the manufacturing process.
Can I request customized sizes or segments?
Yes, we offer fully customized lengths and segmented sizes (such as 10mm, 20mm, 50mm, etc.) to meet specific bending applications and facilitate easier handling.
How are the industrial shredders different from the tooling products?
We operate two specialized facilities: one focused on precision press brake tooling for metal fabrication, and another dedicated to industrial shredders for recycling plastics, wood, paper, and metal scrap.
