ISO9001: 2008, SGS CNC Milling Metal Stamping Progressive Die Tooling with Good Service
ISO9001: 2008, SGS CNC Milling Metal Stamping Progressive Die Tooling with Good Service
ISO9001: 2008, SGS CNC Milling Metal Stamping Progressive Die Tooling with Good Service
ISO9001: 2008, SGS CNC Milling Metal Stamping Progressive Die Tooling with Good Service
ISO9001: 2008, SGS CNC Milling Metal Stamping Progressive Die Tooling with Good Service
1 / 5
ISO9001: 2008, SGS CNC Milling Metal Stamping Progressive Die Tooling with Good Service
ISO9001: 2008, SGS CNC Milling Metal Stamping Progressive Die Tooling with Good Service
ISO9001: 2008, SGS CNC Milling Metal Stamping Progressive Die Tooling with Good Service
ISO9001: 2008, SGS CNC Milling Metal Stamping Progressive Die Tooling with Good Service
ISO9001: 2008, SGS CNC Milling Metal Stamping Progressive Die Tooling with Good Service

ISO9001: 2008, SGS CNC Milling Metal Stamping Progressive Die Tooling with Good Service

Customization: Available
Warranty: Half a Year
Application: Household Appliances, Home Use
Send Inquiry

Product Description

📋

Basic Information

Model NO.
HH188 / HH058
Material
Low Alloy Tool Steel
Processing Method
Punching and Shearing Mould
Technics
Drawing Die
Process Combination
Single-Process Mould
Manufacturing
Computer Technology
Motor Type
Permanent Magnet
Cavity Tech
CNC Milling (High Speed)
Detection
Measurement of Three Axis NC
Name
Precision Metal Press Stamping Tool and Die
Lead Time
30-60 Days
Tooling Material
Cr12, Cr12MOV, DC 53, Skh-9, 45# etc
Design Software
Auto CAD, CAE, PRO-E, Solidworks, UG etc
Finish
Polishing, Heat Treatment, TD Coating, Plating etc
Tolerance
+-0.03mm
Die Life
500,000 Shots
Capacity
300 Sets/Year
🛠️

Product Overview

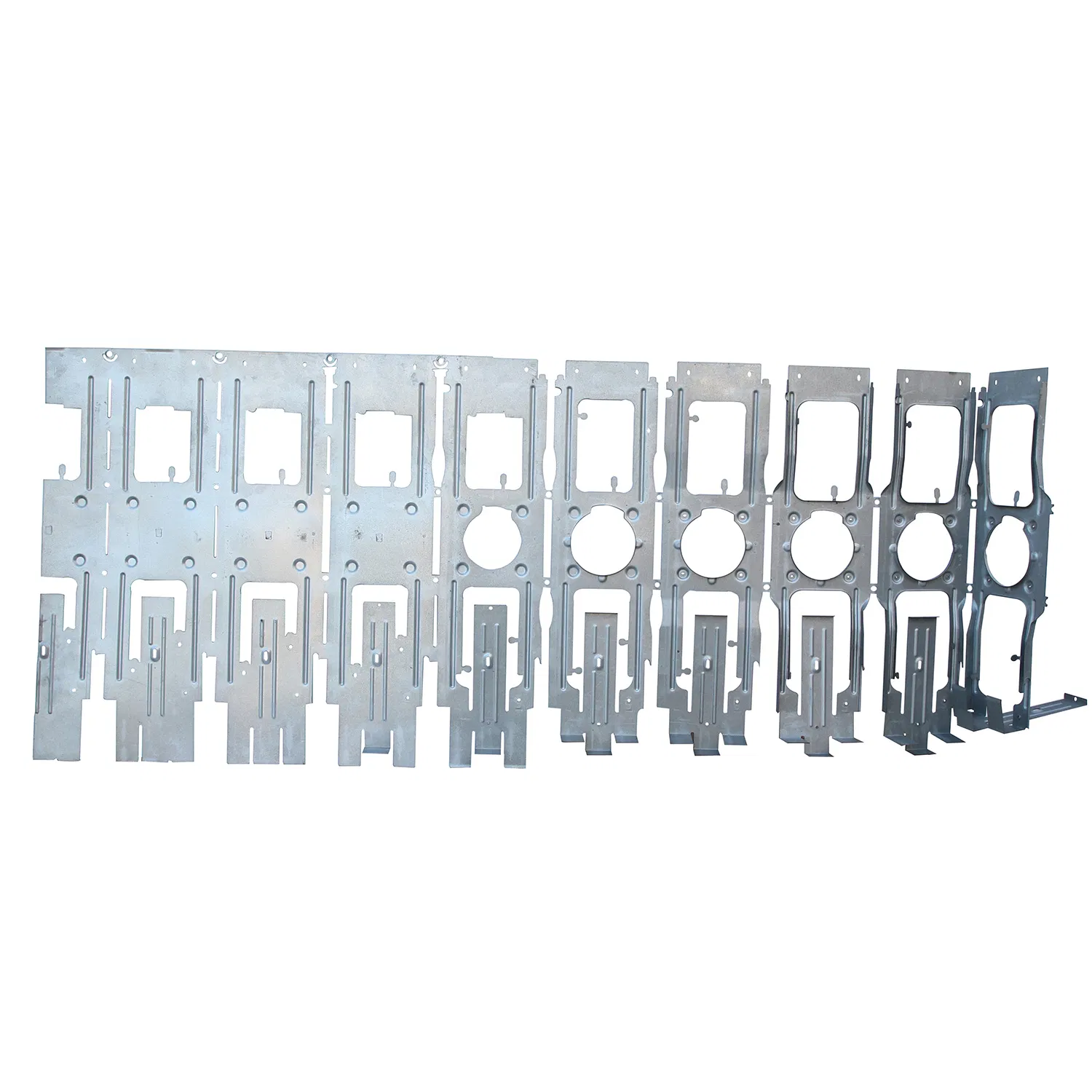

CNC Milling Metal Stamping Progressive Die
⭐

Our Advantages

Advantages of Tooling Service
⚙️

Common Stamping Process

No. Process Type Description
1 Separating Process Blanking, Cutting, Punching, Notching, Trimming, Parting, Shaving, etc.
2 Forming Process Bending, Edge Coiling, Curling, Drawing, Ironing, Embossing, Flanging, Bulging, Necking, Flaring, etc.
🏭

Production & Profile

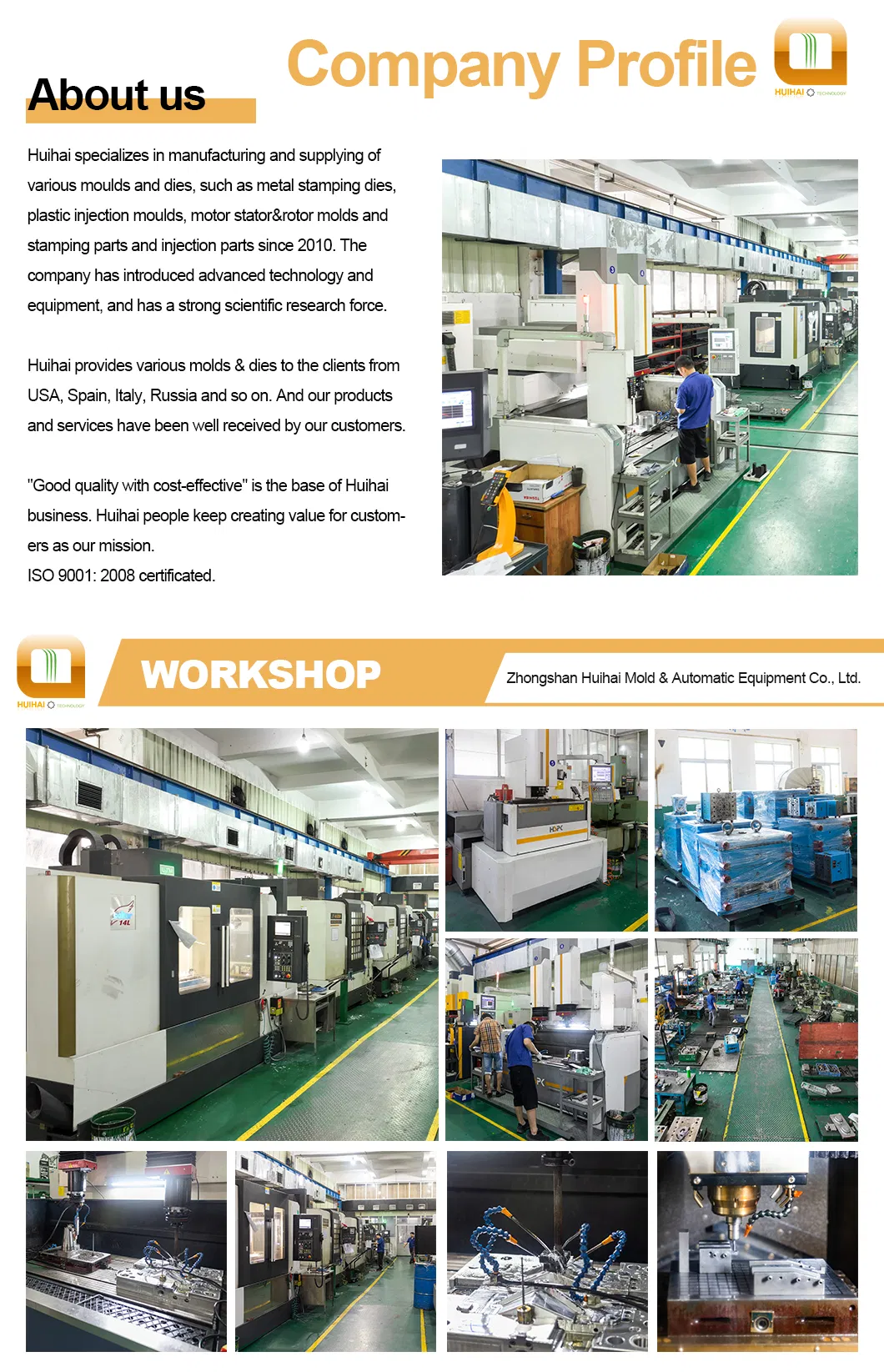

Factory Profile 1

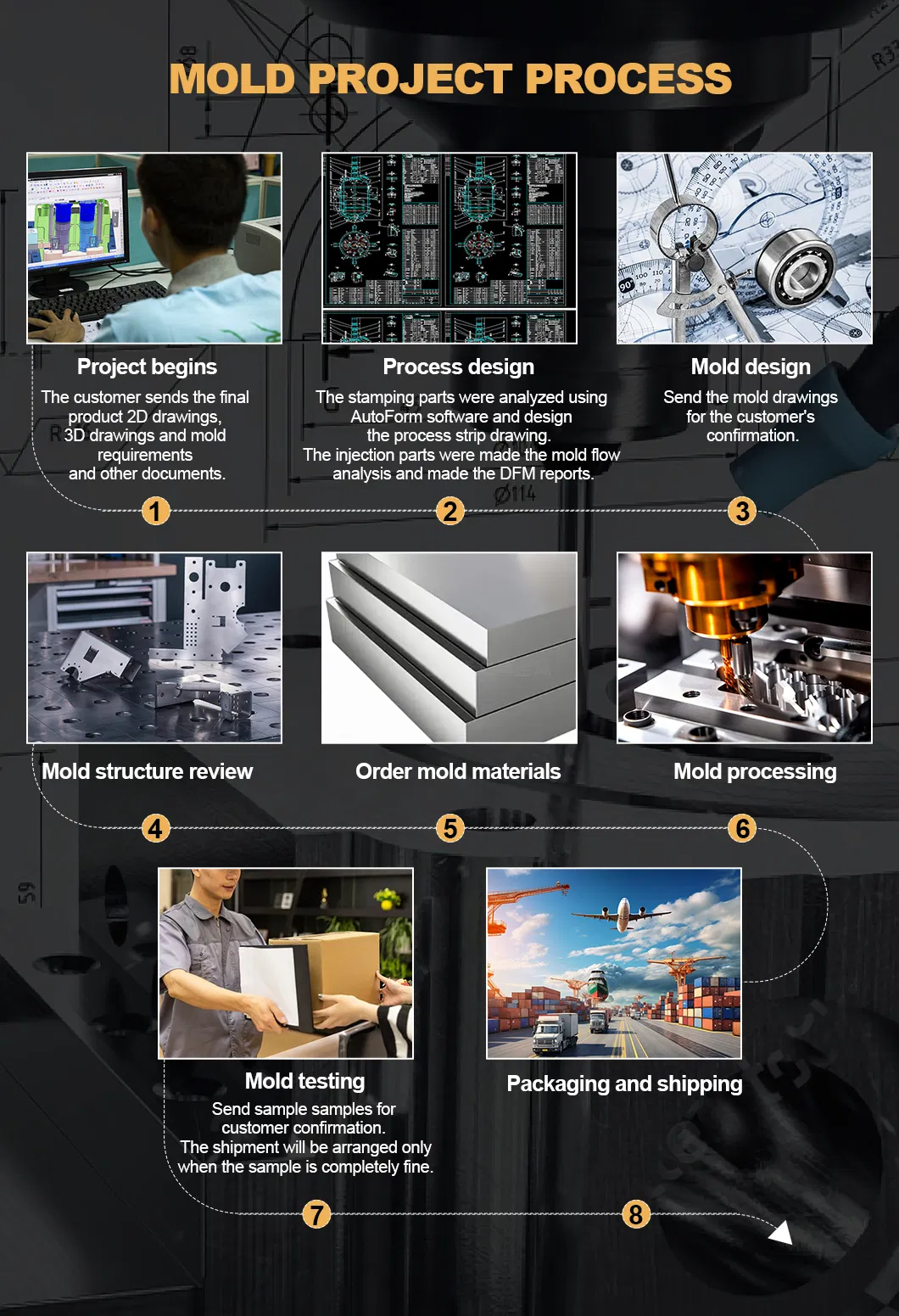

Factory Profile 2

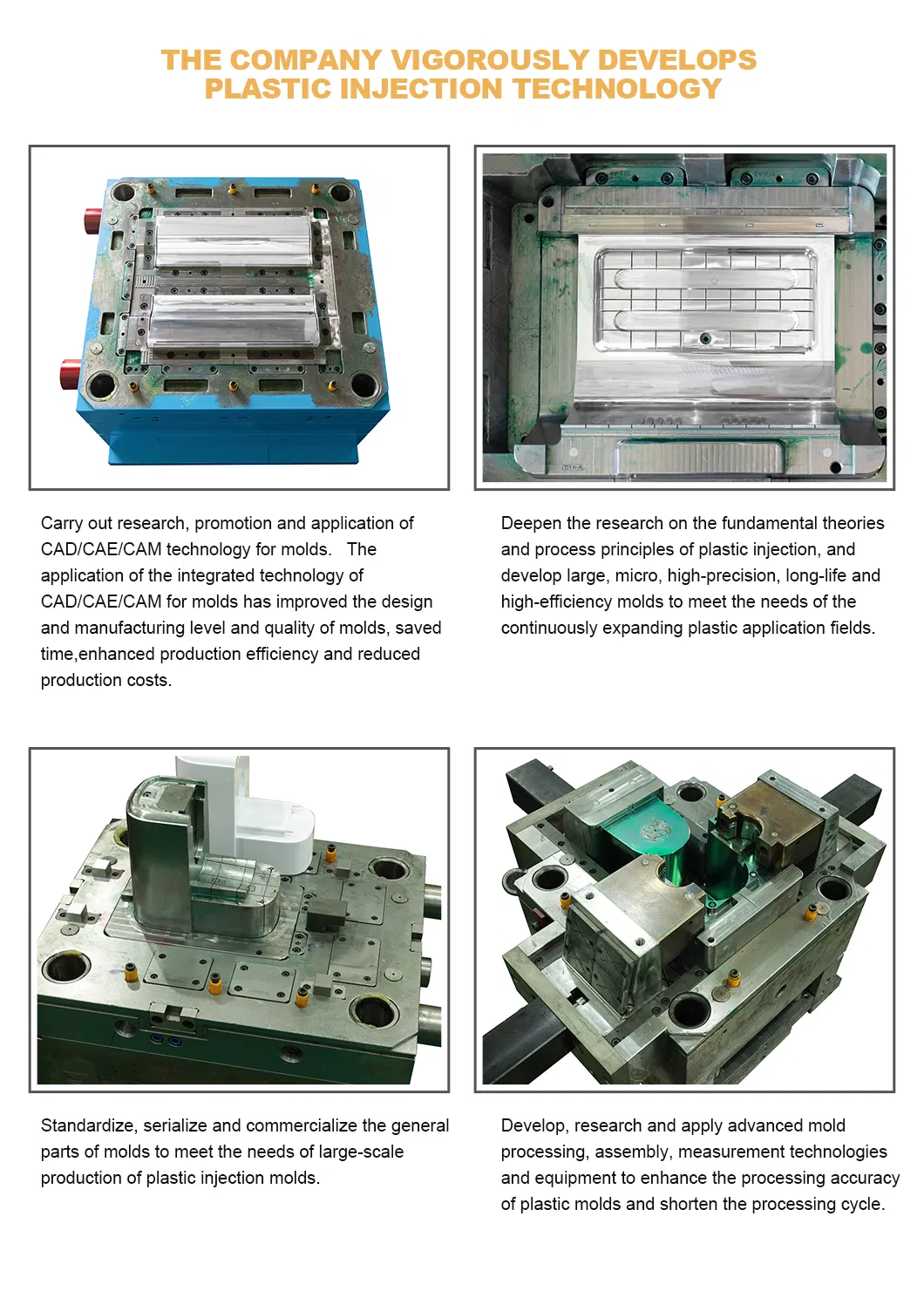

Factory Profile 3
Machining Process
Tooling Inspection
📦

Packaging & Shipping

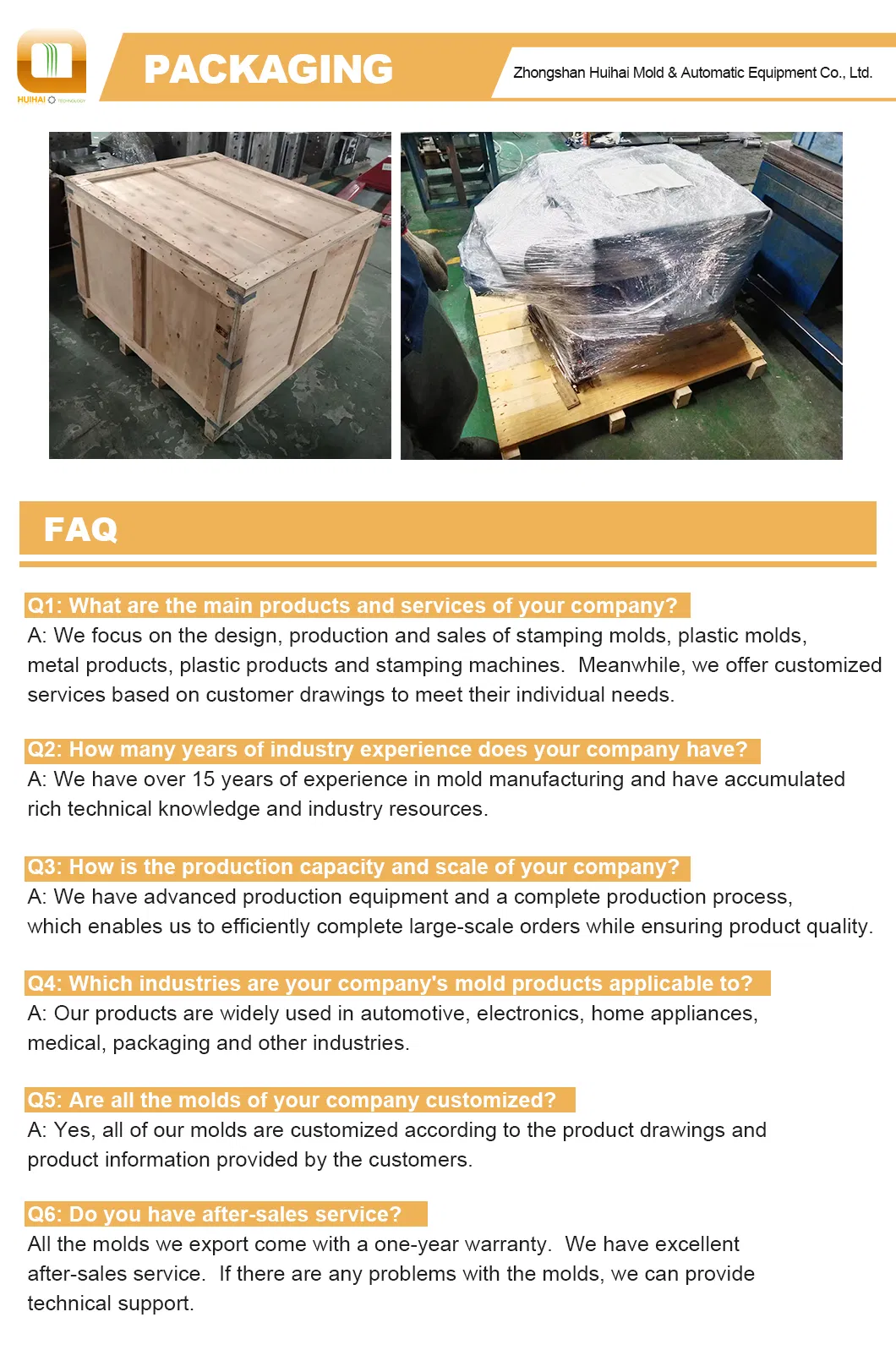

Packaging Details
❓

Frequently Asked Questions

What materials are used for the stamping tool and die?
We utilize high-quality materials including Low Alloy Tool Steel, Cr12, Cr12MOV, DC 53, Skh-9, and 45# steel to ensure durability and precision.
What is the typical lead time for a custom mold project?
The lead time usually ranges from 30 to 60 days, depending on the complexity of the design and the specific manufacturing requirements.
How do you ensure the precision of the die components?
We use high-speed CNC milling for mold cavity technology and verify parts using Three Axis NC measurement methods to maintain a tolerance of +-0.03mm.
What is the expected life span of the stamping die?
Our high-quality precision dies are designed for longevity, typically offering a die life of approximately 500,000 shots.
Which software do you use for design and engineering?
Our engineering team is proficient in industry-standard software such as Auto CAD, CAE, PRO-E, Solidworks, and UG for comprehensive mold design.
What kind of surface finishes do you provide for the tools?
We offer various finishing options including polishing, heat treatment, TD coating, and plating to enhance the performance and wear resistance of the tooling.
